76700 -14/94-

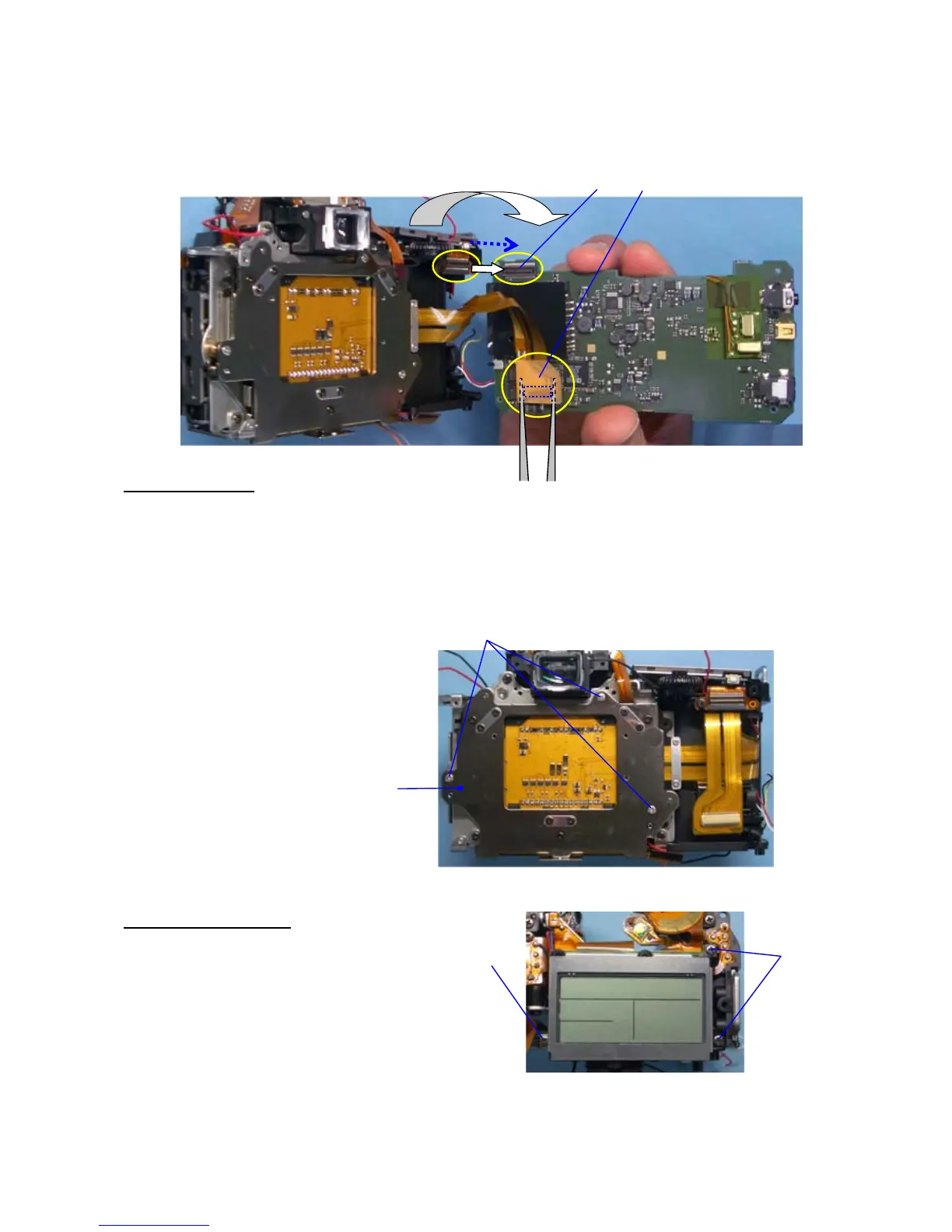

⑬ Remove 0-T100 while disconnecting T200 connector as shown in figure bellow.
⑭ Disconnect the flex from CCD/SR on 0-T100
8. CCD/SR Block
【Caution】Pay attention, there is powerful magnet is carried in the inside of a CCD/SR block.
【Caution】Since performance can be damaged, a CCD/SR block cannot be disassembled and also
don't apply the external pressure to a movable part.
① Unscrew C45 (Stainless steel screw x3)
② Remove CCD/SR block(0-C000) ---- Since it is sticking to a tripod seat, it removes carefully.
9. Exterior LCD block
① Unscrew CNL-D 1.7x2.5
② Unscrew TY-CNL-D 1.7x3.5 (x2)
②
①
②
①
LCD block
0-T100
⑬
⑭
To Next Page
