76700 -37/94-

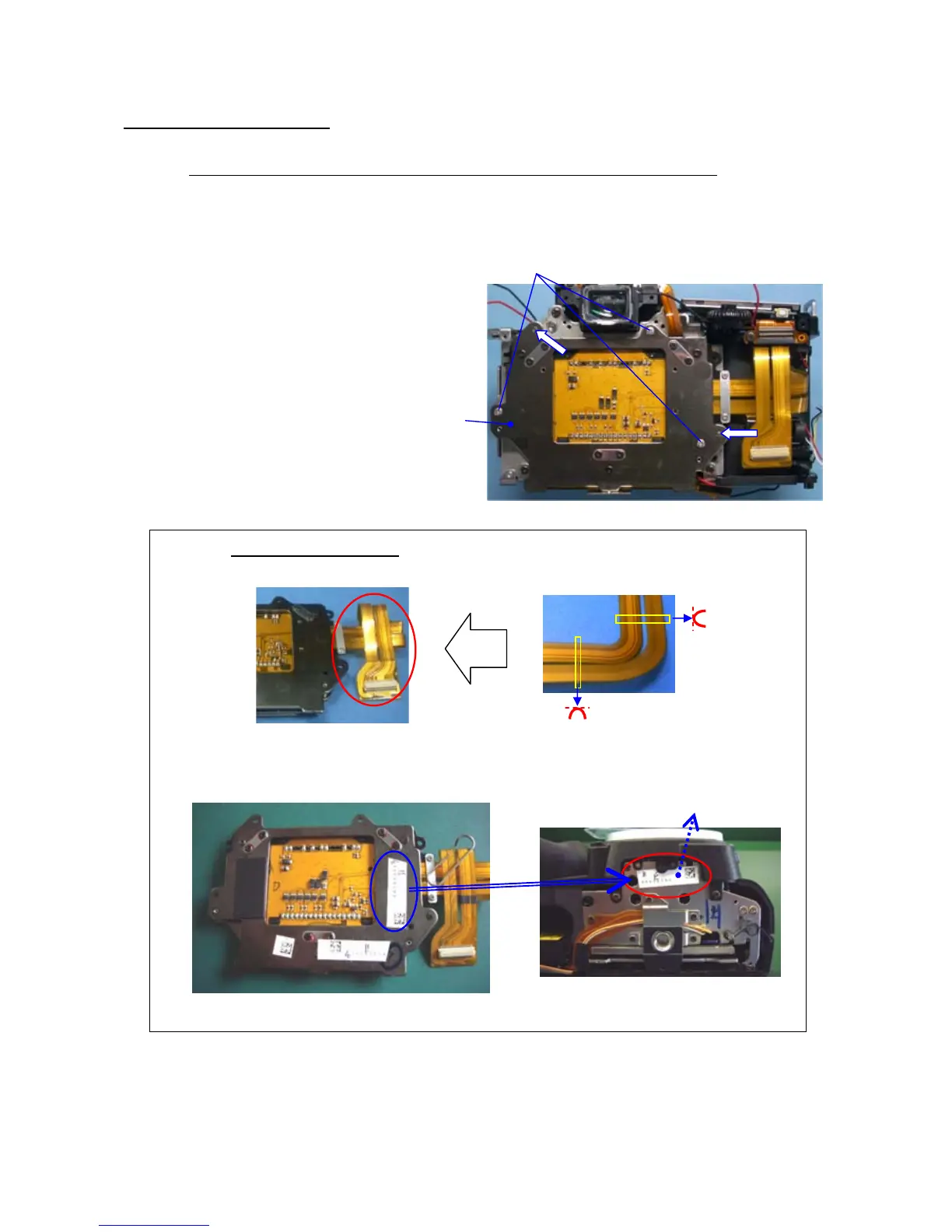

11. 0-C000 (CCD/SR block)
*To prevent the damage of SI-LED, attach mount cover. Then put downward.
[Caution] CCD/SR block has strong magnet inside threrfore, caution for adsorption of parts.
[Caution] There is no dust, no scratch on surface of CCD
(1) [Confirm] Center plate must move up and down and right and left by own weight.
(2) Install CCD/SR block according to the guide pin of the plate
(3) C45 Screw (Stainless-steel, x3)
(2)
(1)
[Caution] When replacing 0-C000:
1. Arrange the flex as shown figure. Do not bend he flex
2. Peel off the tape attached on the buttom plate and replace new CCD ID No. seal of C000.
* Number must readable.
To Next Page
