Peri CB 240 - Assembly of CB 240 Brackets

13
CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
A1 Assembly of the CB 240 Platform
6. Lift in second bracket and align using
bracket spacing gauge. Fix gauge
using screw clamps. Check bracket
spacing. (Fig. A1.07)

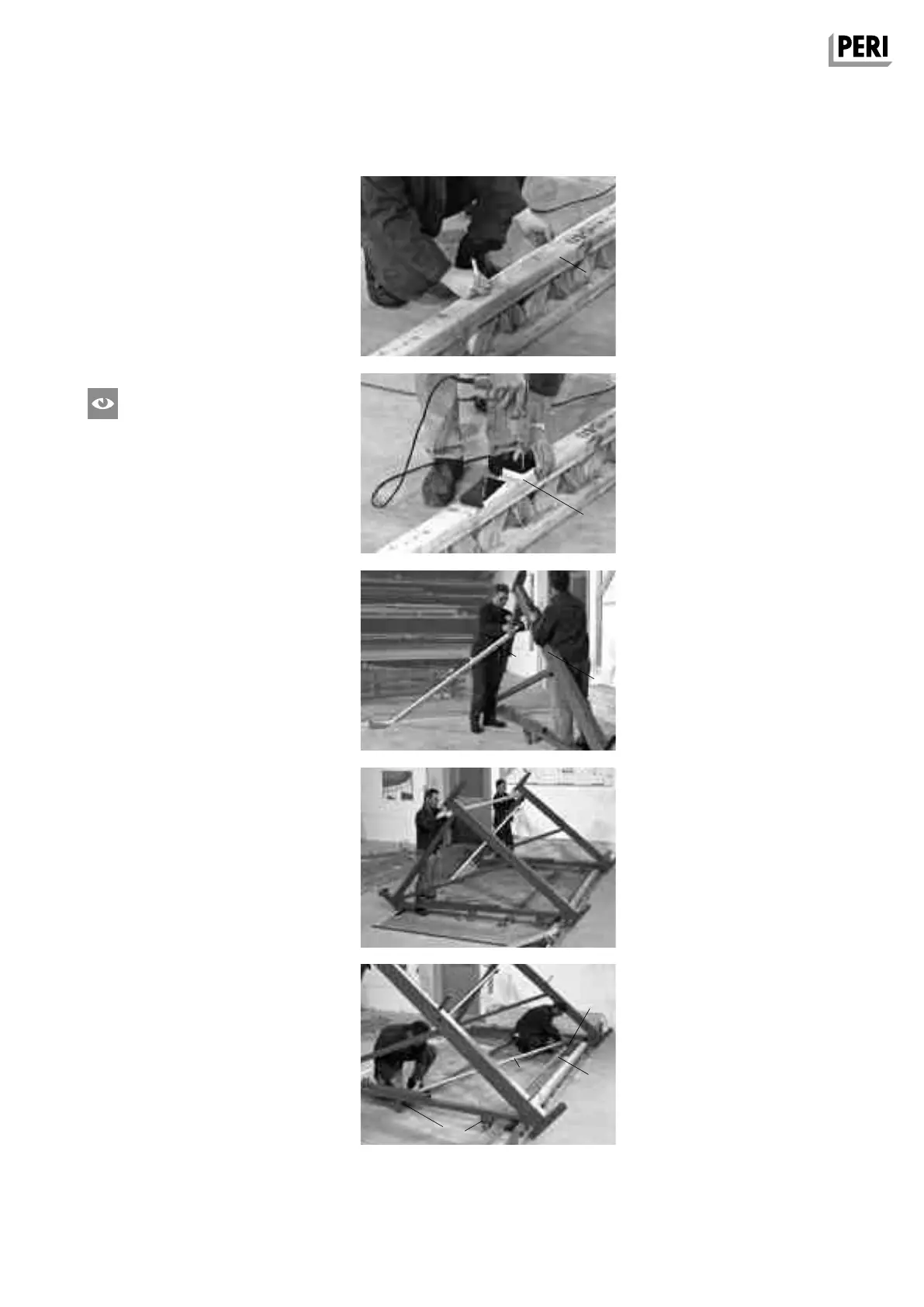

Fig. A1.04
Fig. A1.05
Fig. A1.06
Fig. A1.07
Fig. A1.08
Assembly of CB 240 Brackets
Assembly
1. Check centre-to-centre spacing of
brackets regarding the planned
measurement, or measure spacing of
climbing cones already cast in con-
crete.
2. Adjust centre-to-centre spacing of bra-
ckets to the support (0.2). (Fig. A1.04)
The bracket axes form a right-angle to
the stops and support.
3. Fix locating blocks (0.1). (Fig. A1.05)
For spacings: see Fig. A1.02.
4. Lift first bracket (1.1) vertically into the
stops and then align.
5. Fix together with the diagonal bracing
(0.5). (Fig. A1.06)
7. Fix two scaffold tubes (11.1) to screw
couplings (1.3) in a parallel position to
provide support.
8. Brace with diagonal scaffold tube
(11.2) and two swivel couplings (11.3).
(Fig. A1.08)
The brackets are now aligned.
0.2
0.1
0.5
1.1
1.3
11.1
11.3
11.2
