CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
B1 Work on the Construction Site
Assembly of Wind Bracing
With Tension Belt 25 kN
Permissible tension anchor force
Z
Z
= 25 kN.

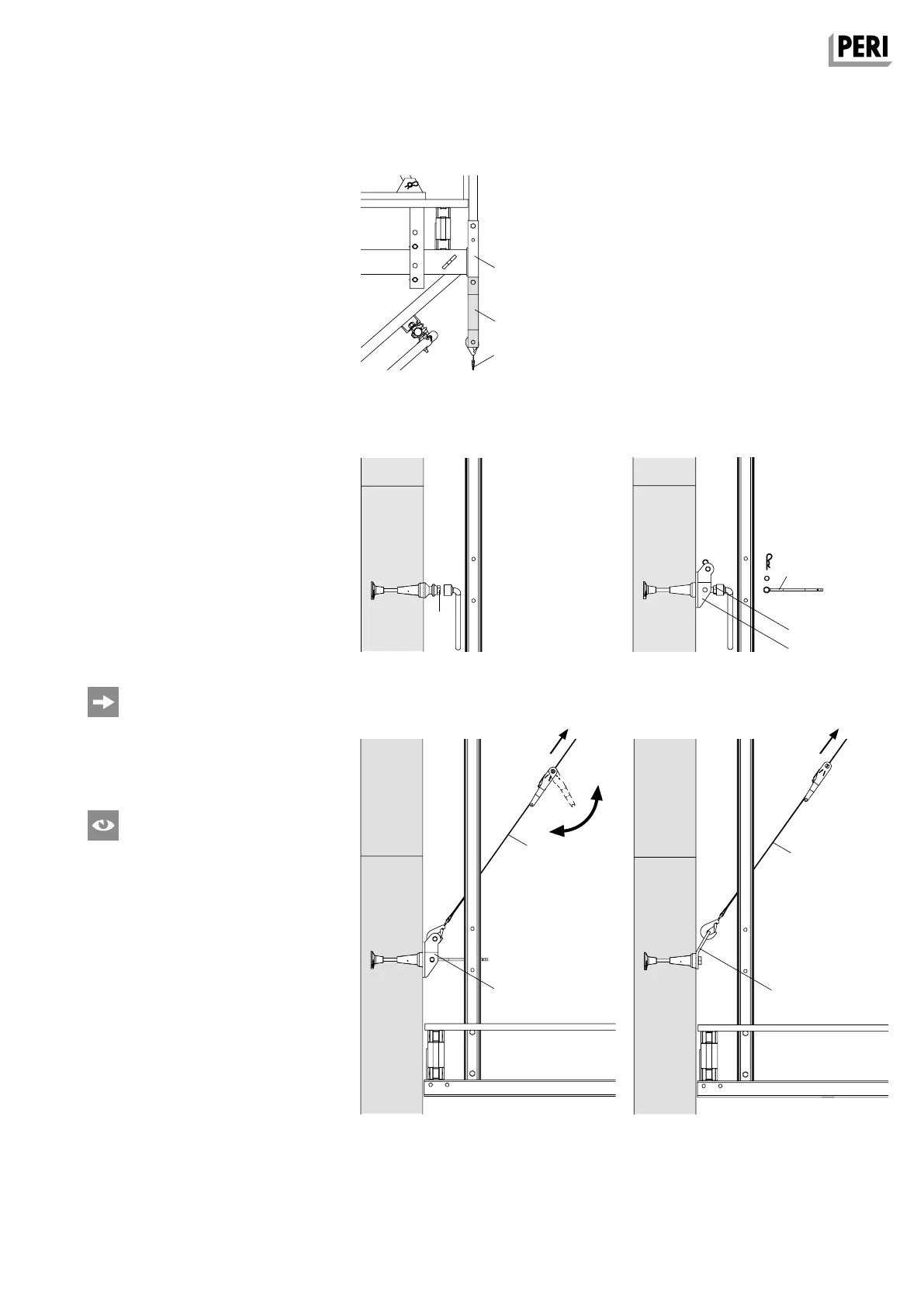

1. Attach Belt Connector CB (7.2) with
Bolt M16 x 100, SW 24, to the vertical
tube of the bracket (1.2).
2. Mount Tension Belt (7.1) to the bolts
using the end of the belt without turn-
buckle. (Fig. B1.32)
3. Loosen Scaffold Mounting Ring and
Bolt M24 x 120 (5.6) on the previous
concreting segment with socket
wrench SW 36 and remove.
(Fig. B1.33)
4. Fix Bracing Shoe Wall CB M24 (6.1) to
the cone using Bolt M24 x 70 (5.14)
SW 36, after the bolts have been
removed from the tension plate (6.2).
Re-insert tension plate through the
platform post and re-bolt in the bra-
cing shoe. (Fig. B1.34)
5. Unroll Tension Belt (7.1) from ratchet.
6. Attach Tension Belt (7.1) below in the
Bracing Shoe Wall CB M24 (6.1) and
tighten. (Fig. B1.35)
If lateral stabilisation of the finishing
platform is not required, then the Belt
Connector Wall (6.3) can also be used
instead of the bracing shoe. (Fig. B1.35a)
Bolt M24 tightened?
Safety catch locked into the hook of the
Tension Belt?
Fig. B1.32
Fig. B1.33
Z
z
Z
z
Fig. B1.34
Fig. B1.35 Fig. B1.35a
