CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
A2 Other Assembly Work
Assembly of Finishing
Platform
Assembly of Platform Beams
When using PERI GT 24 Girders,
strengthen them on both sides in the
area of the brackets with plywood
strips (13.2).
(Fig. A2.08)
Dimensions: thickness/width/height
27x120 x 300 mm.
Fixing: Torx TSS 6 x 60.
Assembly

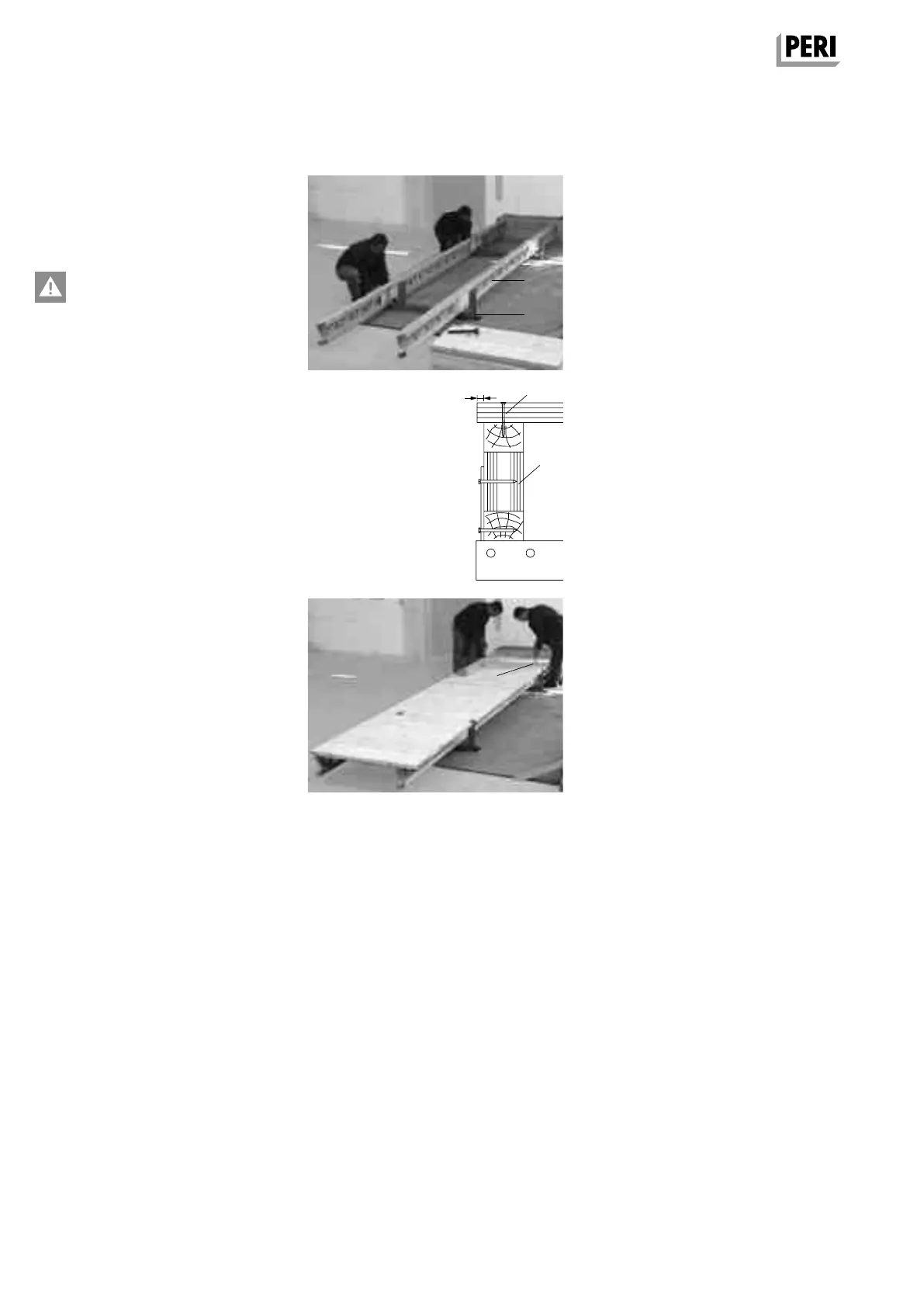

1. Lay Platform Beam CB (8.1) parallel in
the bracket spacing on the assembly
floor.
2. Place girder (13.1) and secure in positi-
on: 2 x KH 8/16 and 8 x round head
bolts. (Fig. A2.07)
Assembly of Decking
1. Cut planking at right angles,
L = 1170 mm.
2. Fix planking at both platform ends
flush to girders. Projection length:
14 mm over girder on wall side.
(Fig. A2.08)
Mounting:
Torx TSS 6 x 80 (13.5) 2 x per girder.
Alternatively: nails 38 x 100.
3. For accurate positioning, use plumb
line.
4. Fix remaining planking. (Fig. A2.09)
Fig. A2.07
Fig. A2.09
Fig. A2.08
