Peri CB 240 - Assembly of Decking for the Working Platform

18
13.5
13.1
81 mm
CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
A1 Assembly of the CB 240 Platforms
Assembly of Decking for the
Working Platform
Assembly
1. Cut planking at right angles,
L = 2.326 m.
2. At platform ends, fix each plank flush
to the girders (13.1). (Fig. A1.23)
Planking is flush with bracket front edge
on the wall side.
Projecting length: 81 mm over girder on
the wall side. (Fig. A1.24)
Mounting: Torx TSS 6 x 80 (13.5) 2 x per
girder support.
Alternatively: nails 38 x 100.
3. For accurate positioning, use plumb
line. (Fig. A1.24)
4. Fix remaining planking. (Fig. A1.25)
– Assembly details for the sliding hatch
are to be found in A2.
– Joint width in planking max. 2 cm.

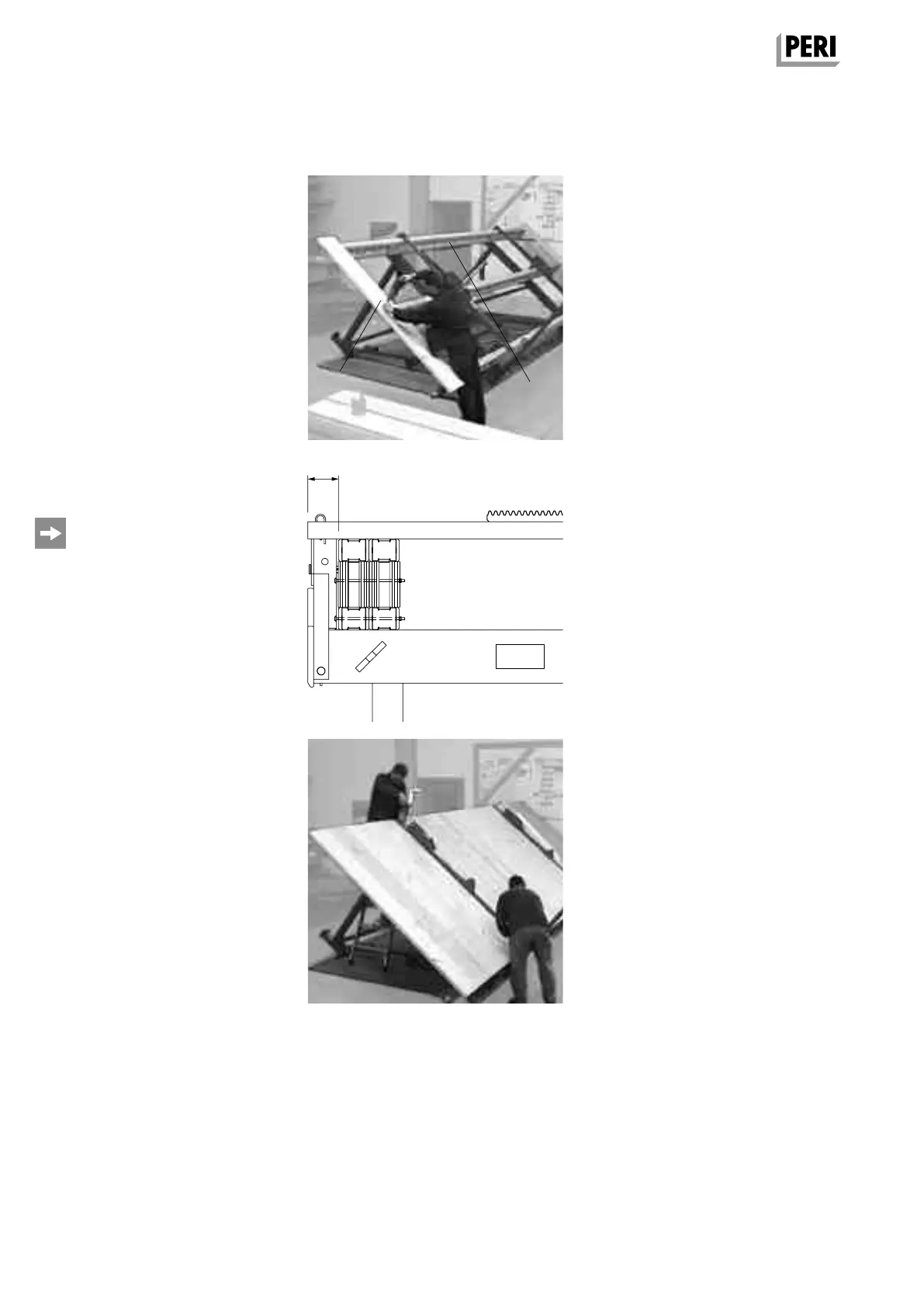

Fig. A1.23
Fig. A1.24
Fig. A1.25
