CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration

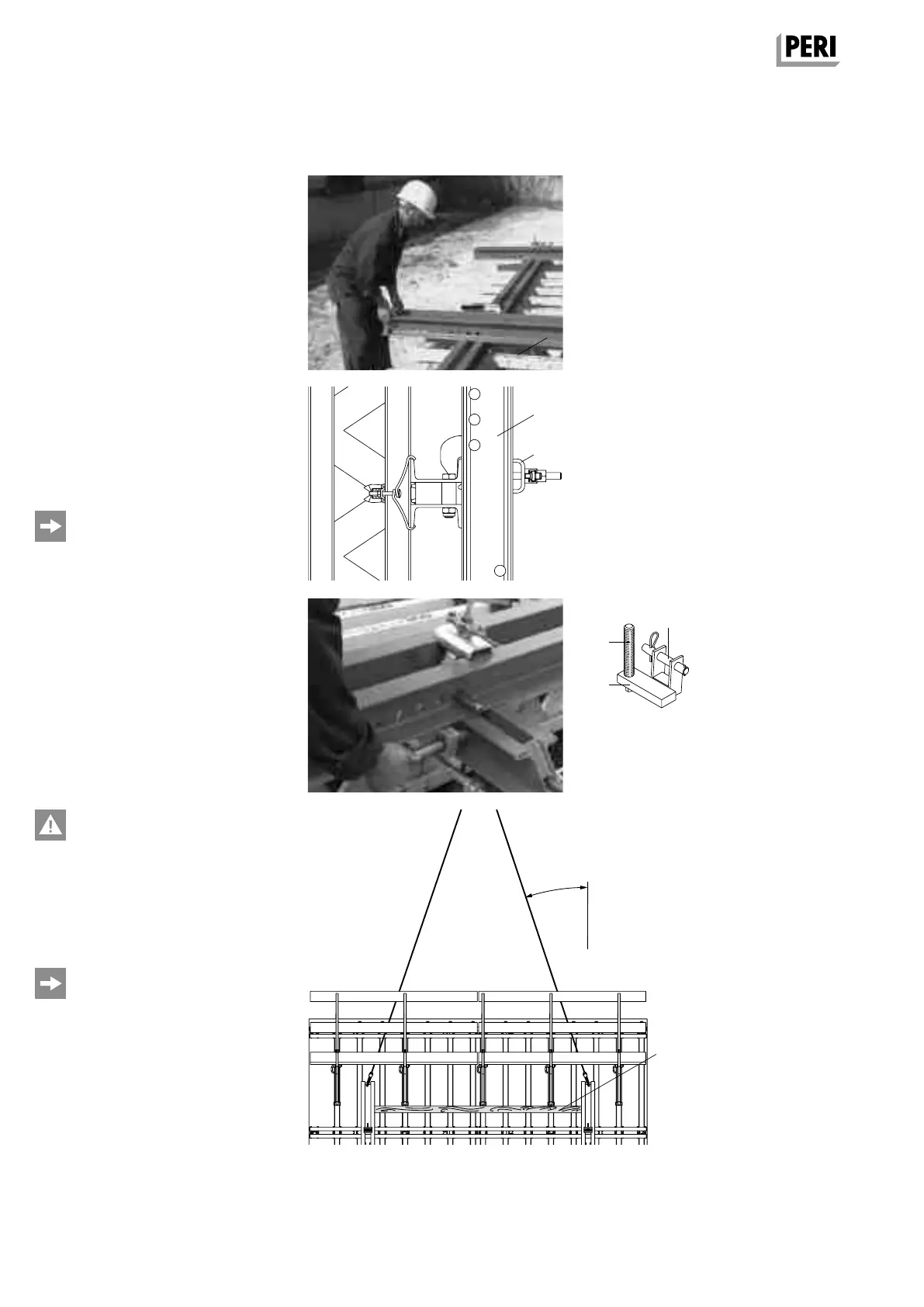

B2 Assembly of the Formwork Elements
VARIO GT 24 Element
Assembly of Strongback CB on the
VARIO GT 24 Element
1. Lay Strongback CB 270 or CB 380 (4)
on the steel waler of the VARIO GT 24
formwork according to the bracket
spacing. Bottom projecting length:
see plans or C1. (Fig. B2.01)
2. Mount Waler Fixation U100 – U120
(4.4) and secure in position by tighte-
ning the Quick Jack Nut. (Fig. B2.02)
3. Fix Height Adjusting Unit (4.3) with
bolts Ø 25 x 180 (4.6) and cotter pin
to the Strongback CB. (Fig. B2.03)
4. Turn Spindle (4.8) for the Height
Adjusting Unit against the formwork
waler.
The Waler Fixation U100 – U120 can be
attached to the SRZ Steel Waler U100
and U120.
Fig. B2.01
In order to prevent any diagonal pull,
a piece of timber (4.10) is clamped
between the top ends of the Strong-
backs, see C1, Installation of Com-
pression Brace.
(Fig. B2.04)
Alternatively, the Lifting Beam RCS 10 t
(Item no. 112986) can be used for the
moving procedure.
Fig. B2.02
Fig. B2.03
4
4.8
4
4.4
4.3
4.6
β ≤ 45°
Fig. B2.04
4.10
