CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
A2 Other Assembly Work

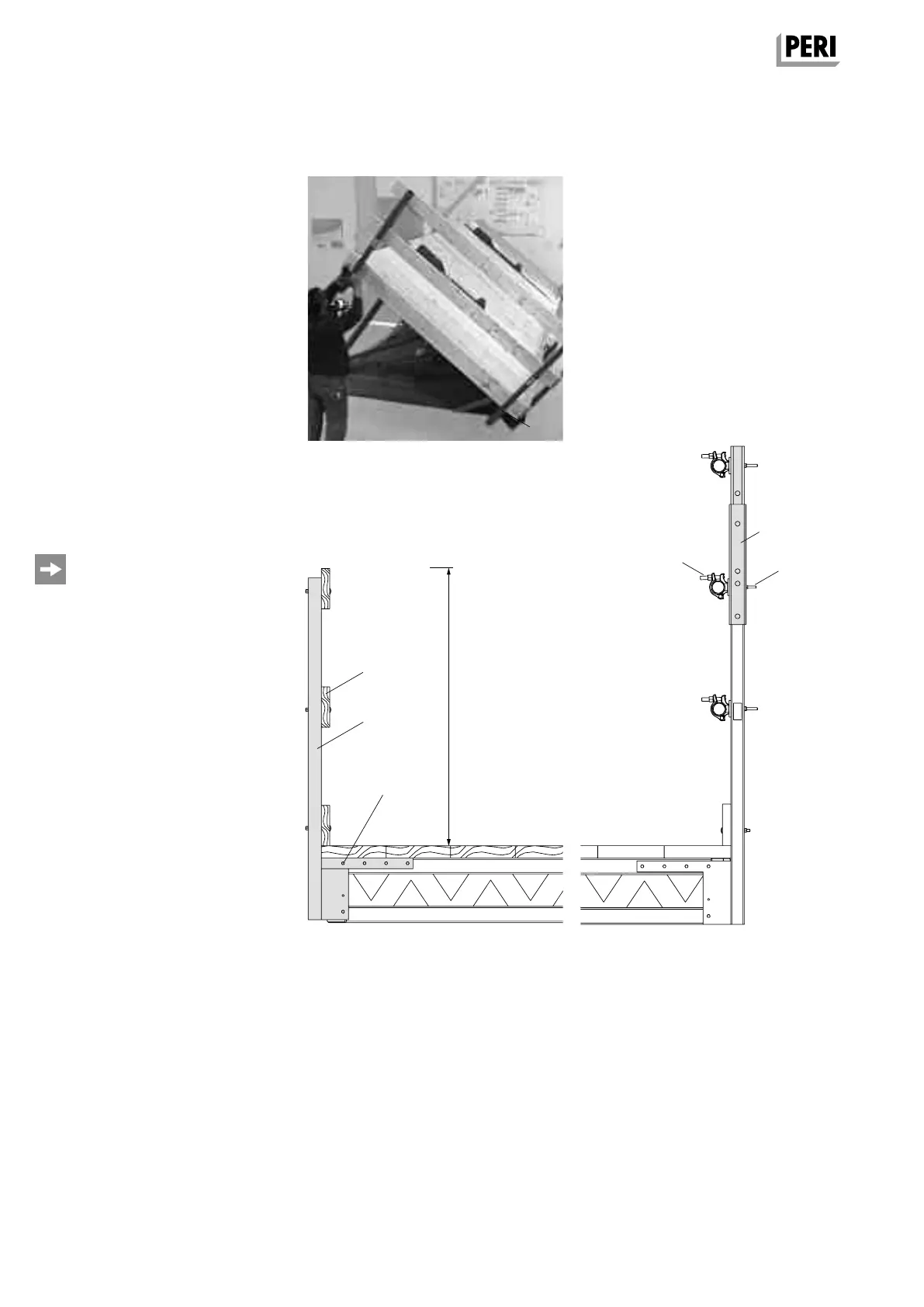

Fig. A2.01
Assembly of End Guardrail
Posts
Required Materials:
– 2 End Guardrail Posts
– 2 guardrail boards 4 x 12 cm
– 1 toe board 4 x 12 cm
Assembly
1. Fix End Guardrail Post (12.4) to girders
with wood screws 6 x 80 (5x) (12.8).
2. Fix guardrail boards and toe board
with round head bolts M8 x 100
DIN 603 (12.5). (Fig. A2.01 + A2.02a)
Guardrail Post Extension CB (12.9)
(Fig. A2.02b)
– As an alternative to the guardrail
boards, scaffold tubes can be con-
nected with Guardrail Connector CB
(12.6) and round head bolts M8 x 100
DIN 603 (12.5).
– Round head bolts M8 x 125 (12.7) are
to be used for the guardrail boards.
Fig. A2.02a Fig. A2.02b
12.4
12.8
12.5
12.4
1,00 m
12.9
