CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
B1 Work on the Construction Site
4.6
1.5

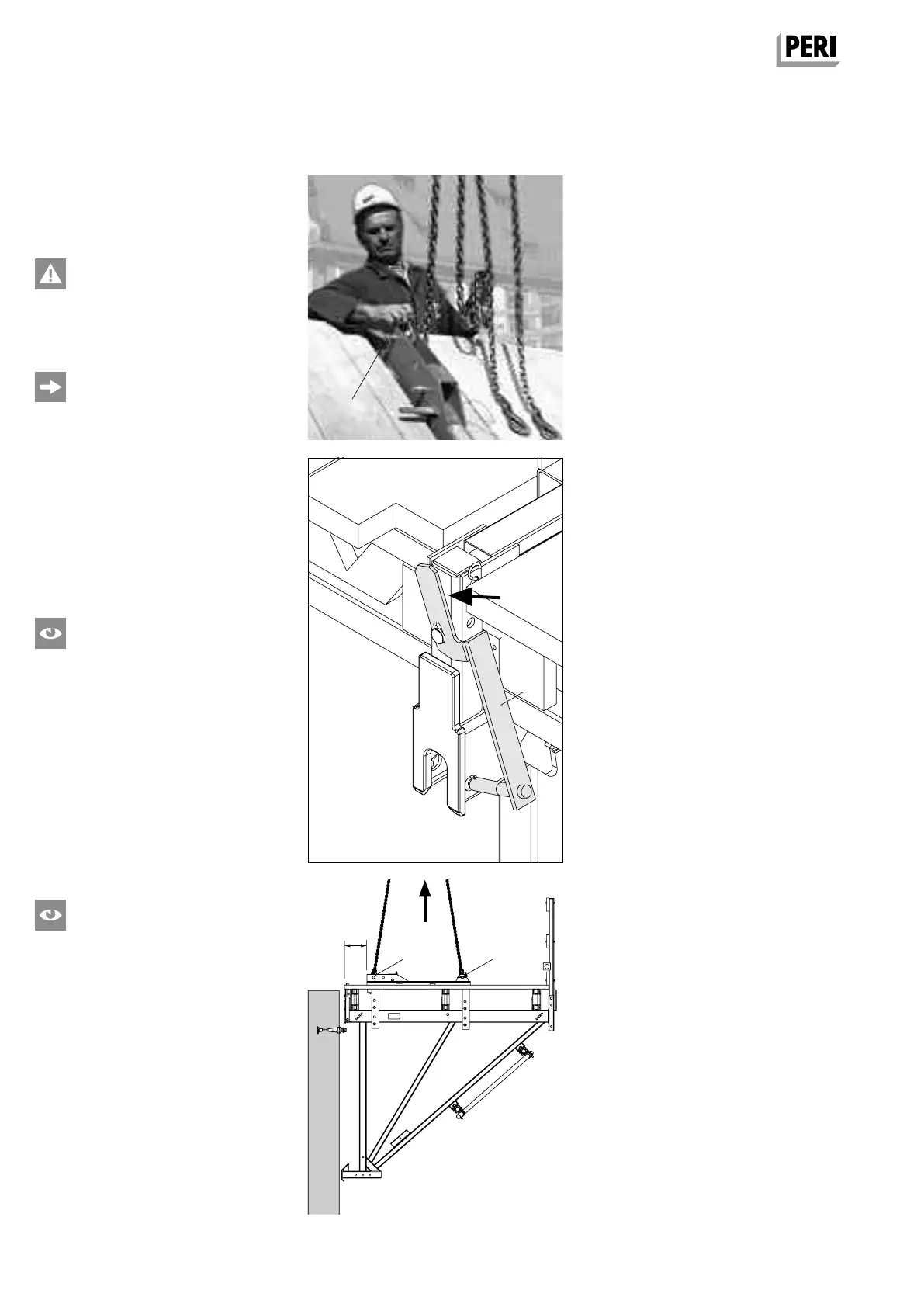

Fig. B1.19
Fig. B1.20
Fig. B1.21
Mounting the CB 240
climbing unit to the first
wall section
– Use appropriate 4-sling lifting gear!
– Crane sling angle max. 30°!
– Do not exceed the crane capacity!
Carriage Position
with finishing platform X
R
= 430 mm.
without finishing platform X
R
= 650 mm.
Platform is suspended horizontally.
Formwork Carriage
1. Move carriage into position and se-
cure with wedge.
2. Insert two bolts Ø 25 (4.6) from an Ad-
justable Brace CB 164-224 at the front
and rear of the carriage and secure.
Before Attaching
– Is the carriage in the correct position?
– Is the wedge securely in position on
the carriage?
– Are the cotter pins in the bolts Ø 25?
Attaching
3. Attach 4-sling lifting gear to the bolts
Ø 25 (4.6) on the carriage. (Fig. B1.19)
4. Remove cotter pin of the securing bolt
(1.5).
5. Swivel securing bolt to one side.
(Fig. B1.20)
Before Moving
– Is the locking device on the lifting
hook closed?
– Is the lifting angle correct?
– Have loose parts been removed?
– Is the securing bolt (1.5) completely
pivoted to one side?
Moving
6. Site personnel must leave the plat-
form.
7. Move platform.
(Fig. B1.21)
4.6 4.6
X
R
