Peri CB 240 - Removal of Climbing Cones; Dismantling of the Climbing Unit

39
4.6 4.6
X
R
1.5
CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
B1 Work on the Construction Site

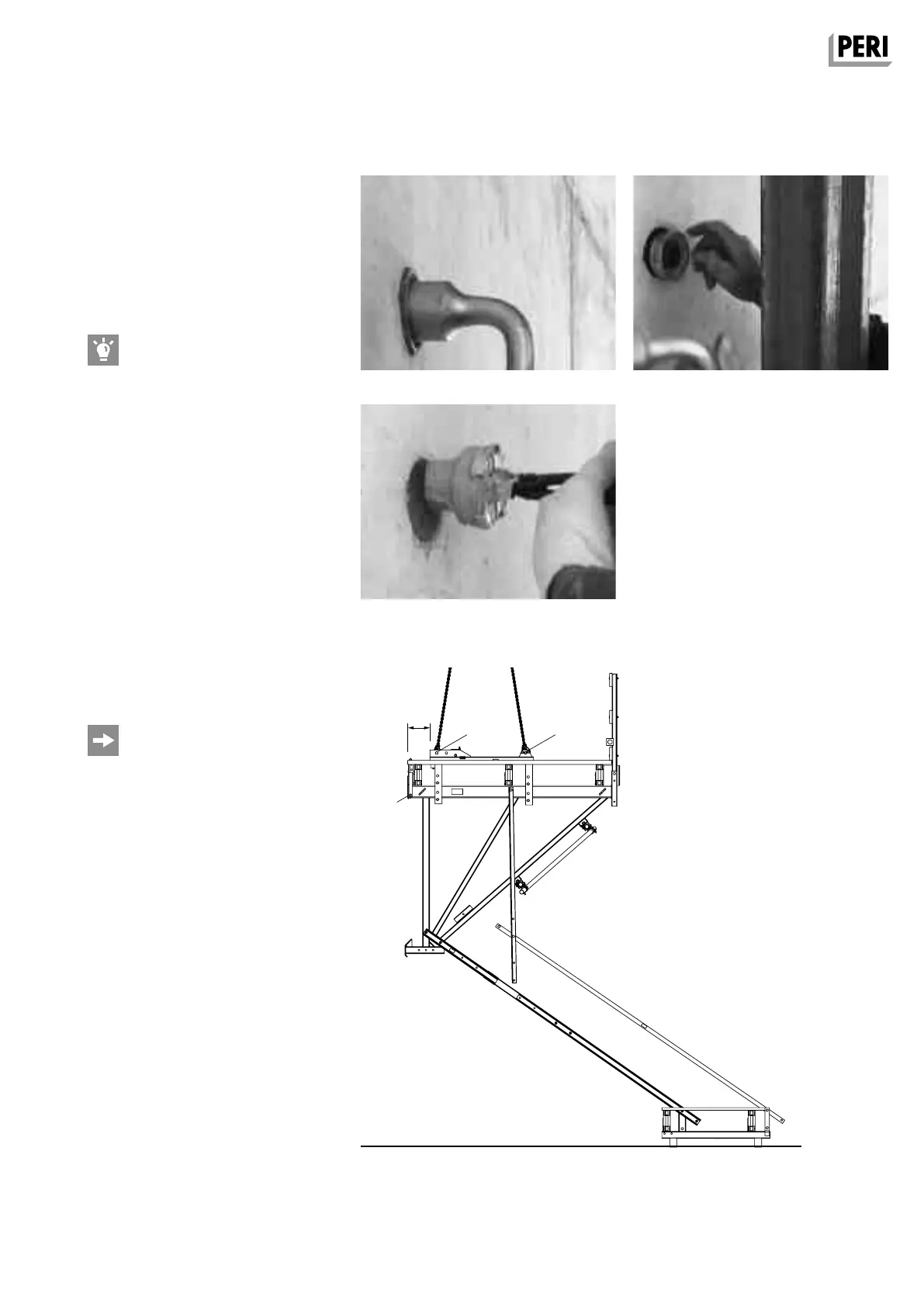

Removal of Climbing Cones
Assembly
1. Remove Scaffold Mounting Ring M24
or wind bracing.
2. Release cone with socket wrench
SW 36. (Fig. B1.42)
3. Unscrew cone by hand. (Fig. B1.43)
For architectural concrete or gas/water
impermeability of the wall, the cone
hole can be closed with PERI Sealing
Cones KK.
See PERI Tie Technology or contact your
PERI sales engineer.
(Fig. B1.44)
Dismantling of the Climbing
Unit
Carriage Position
with finishing platform X
R
= 430 mm,
without finishing platform X
R
= 650 mm.
Assembly
1. Retract carriage.
2. Dismantle formwork.
3. Attach lifting gear to carriage by inser-
ting Bolt Ø 25 x 180 (4.6).
4. Remove securing bolts (1.5).
5. Lift out working platform from the
anchoring and disassemble finishing
platform. (Fig. B1.45)
6. Set down climbing unit on assembly
area and dismantle.
7. Remove anchors from building ensu-
ring that personnel are always in a
safe working position.
Fig. B1.45
Fig. B1.42
Fig. B1.43
Fig. B1.44
