CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
B4 Crane-Assisted Climbing
2. Moving Procedure
– Use a guide rope to ensure control-
led movements of the platform
when being moved!
– Any open edges created during the
climbing procedure are to be made
safe or cordoned off!
– Loose components are to be secured
or removed before moving takes
place!
Attachment points for rope and fall
arrest equipment is the crane eye
(1.4) on the guardrail posts.
(Fig. B4.08)
Moving
1. Crane lifts the climbing unit out of the
scaffold mounting ring (5.6a).
2. Crane lifts the climbing unit up to the
next scaffold mounting ring (5.6b).
3. Bring platform into position.
4. Lower climbing unit onto scaffold
mounting ring (5.6b) evenly and hori-
zontally till the lower point of pressure
(1.7) of the bracket rests against the
wall. Lifting gear remains tensioned.
(Fig. B4.03 – B4.05 + B4.06)
Are the brackets (1.1) positioned on both
scaffold mounting rings (5.6)?
Troubleshooting
– If no connection is made with the
scaffold mounting rings (5.6) or if the
brackets (1.1) jam, lift the platform and
lower it again.
– If the bracket spacing does not match
that of the scaffold mounting rings,
check the distance of the leading
anchor to the formwork.
– If the mounting procedure is not
possible, the bracket spacing must
be corrected through the re-assembly
of the platform.

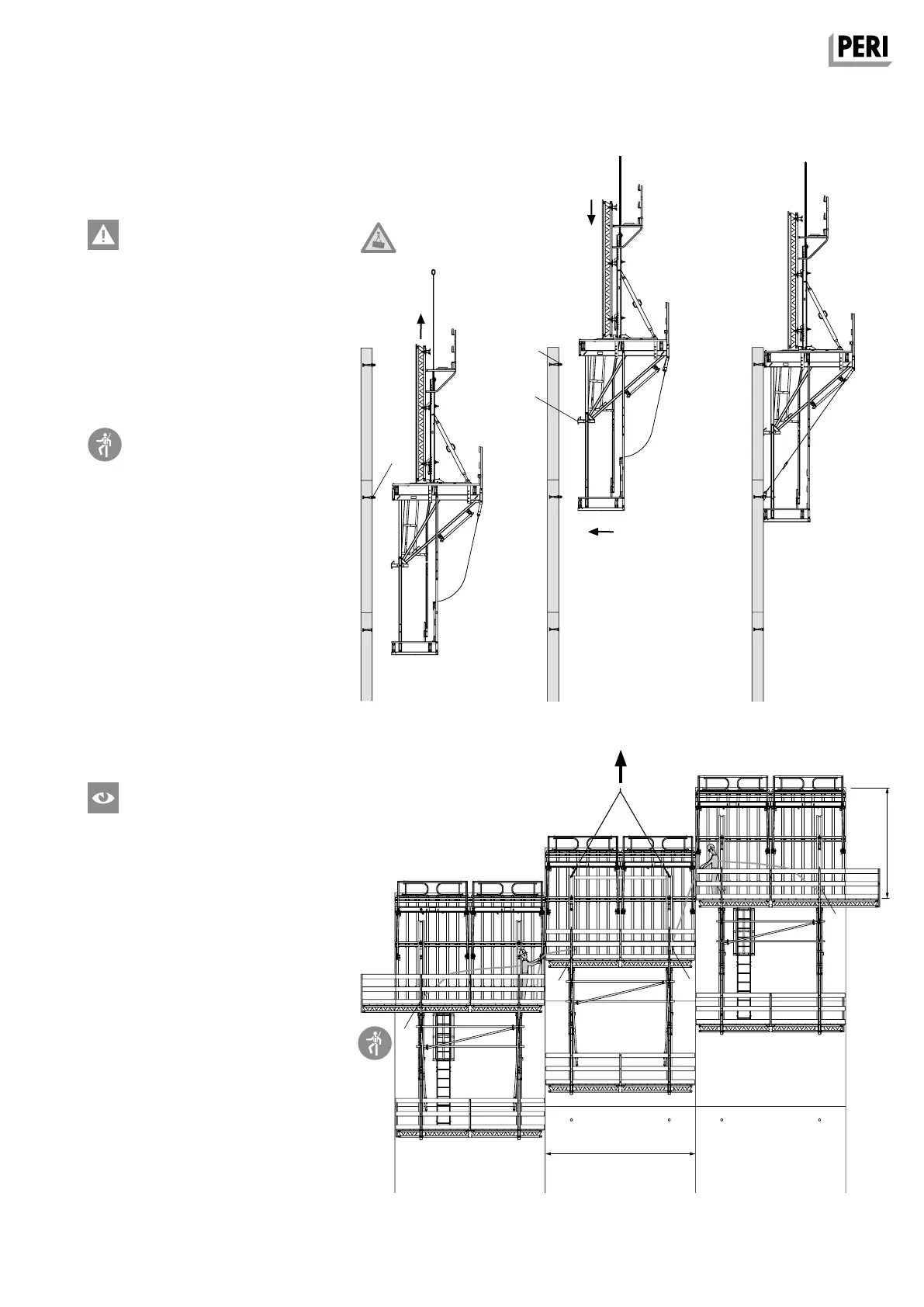

Fig. B4.08
Fig. B4.03 Fig. B4.04 Fig. B4.05
