C1 Planning and Work Preparation

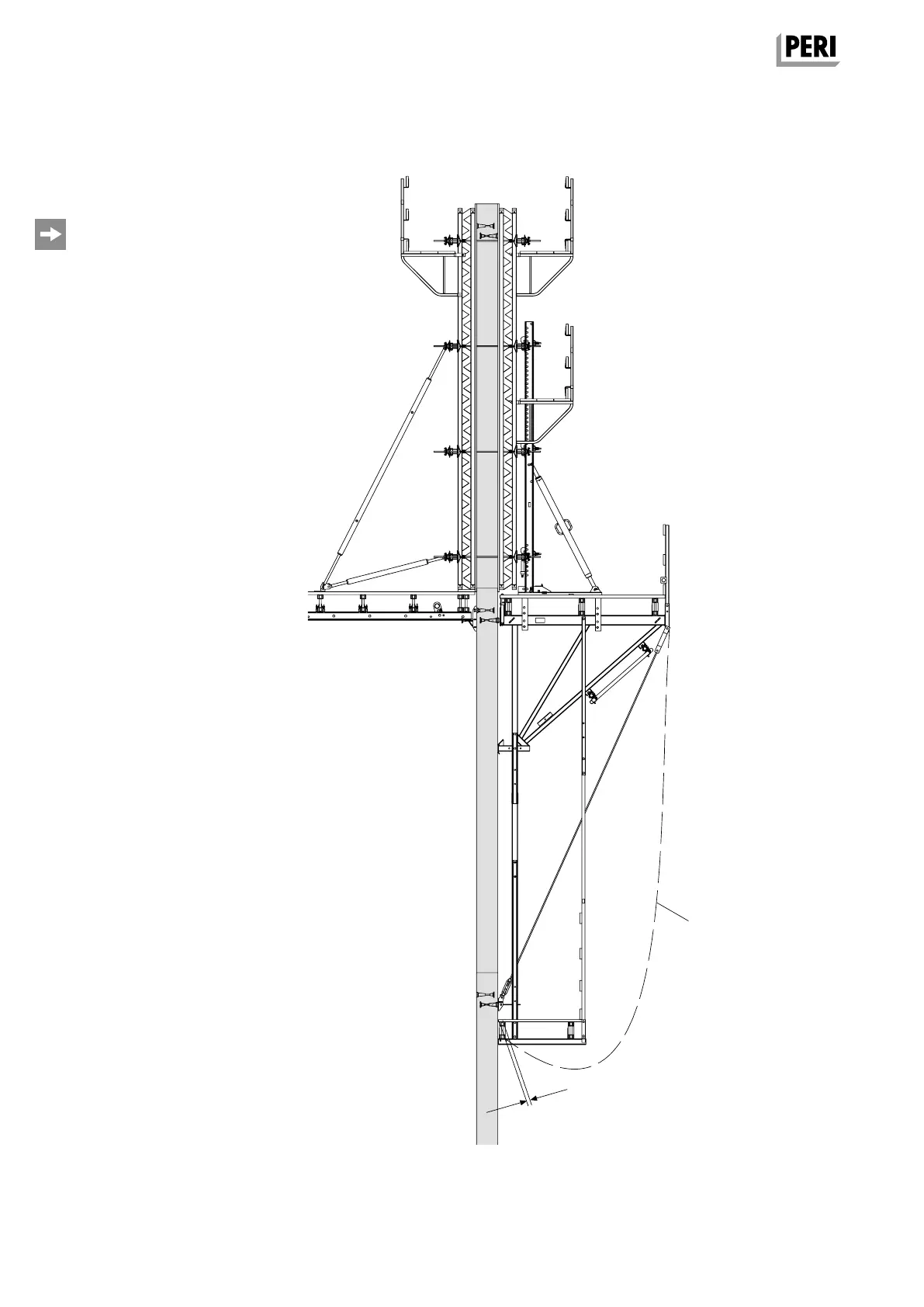

Fig. C1.02
Platform Decking
– Platform decking must be chosen in
accordance with respective national
regulations.
– Tripping hazards, unnecessary box
outs and openings in the decking are
to be avoided or covered.
– The distance between the decking
and the structure should be
max. 5 cm.
– Gaps in the decking are not permissi-
ble. Planks are to be fitted tightly to-
gether.
– The spacing between the decking of
adjacent platforms must not exceed
2 cm. Larger gaps are to be covered
with non-movable suitable materials
or safety nets (8.4) with a max. mesh
size of 2 cm are to be used.
– Any openings in the decking, which
are required for normal working pro-
cedures, must be covered with non-
movable suitable materials.
– Safe working conditions for tie instal-
lation are to be provided by intermedi-
ate platforms. (Fig. C1.02)
– Minimum dimensions of plankings
see Table 4.
– Permissible span of girders
see Table 5.
Markings
We recommend that each platform is
distinctly marked as well as creating a
document with the following data:
– company name
– construction site
– name of the planner
– marking in accordance with the plans
– dimensions
– weight of the unit with formwork
– weight of the unit without formwork
– maximum formwork height
– permissible loads
8.4
