53
CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
B4 Crane-Assisted Climbing
6
Preparation
Do not exceed the crane capacity!
If crane capacity is insufficient, the form-
work and platform can be moved sepa-
rately. For this: pay close attention to B2
Assembly of the Formwork Elements.
Assembly
1. Release formwork anchor and
remove.
2. Retract formwork with the Carriage
(2), see Section B3. Reference
values for retraction distance x,
see Table on the next page.
3. Mount Scaffold Mounting Ring (5.6)
with bolt M24 x 120 (5.7) on the next
concreting section, see Fig. B1.03.
4. Remove wind bracing (7) on the wall
and place in secure position.
5. Disassemble Bracing Shoe CB (6) for
the wind bracing, SW 36, and fix to
the wind bracing or remove.
(Fig. B4.01a)
6. Dismantle Climbing Cones which are
no longer required and remove.
7. If required, brace Strongback, e.g.
with compression brace (4.10),
see Fig. C1.14 with panel formwork.
8. Open concreting platform decking
(10.3) above the Strongback. Attach
climbing unit to Strongback (4).
(Fig. B4.01)
9. Remove all loose objects.
10. Swivel securing bolt (1.5) to one side.
(Fig. B4.02)
11. All personnel must leave the moving
unit.
– Wind bracing dismantled and removed?
– Securing bolts completely pushed to
one side?
– Is the locking device on the lifting
hook closed?
– Is the lifting angle correct?
– Have loose objects been removed?
– Moving without Lifting Beam: is a
compression brace between the
Strongbacks?

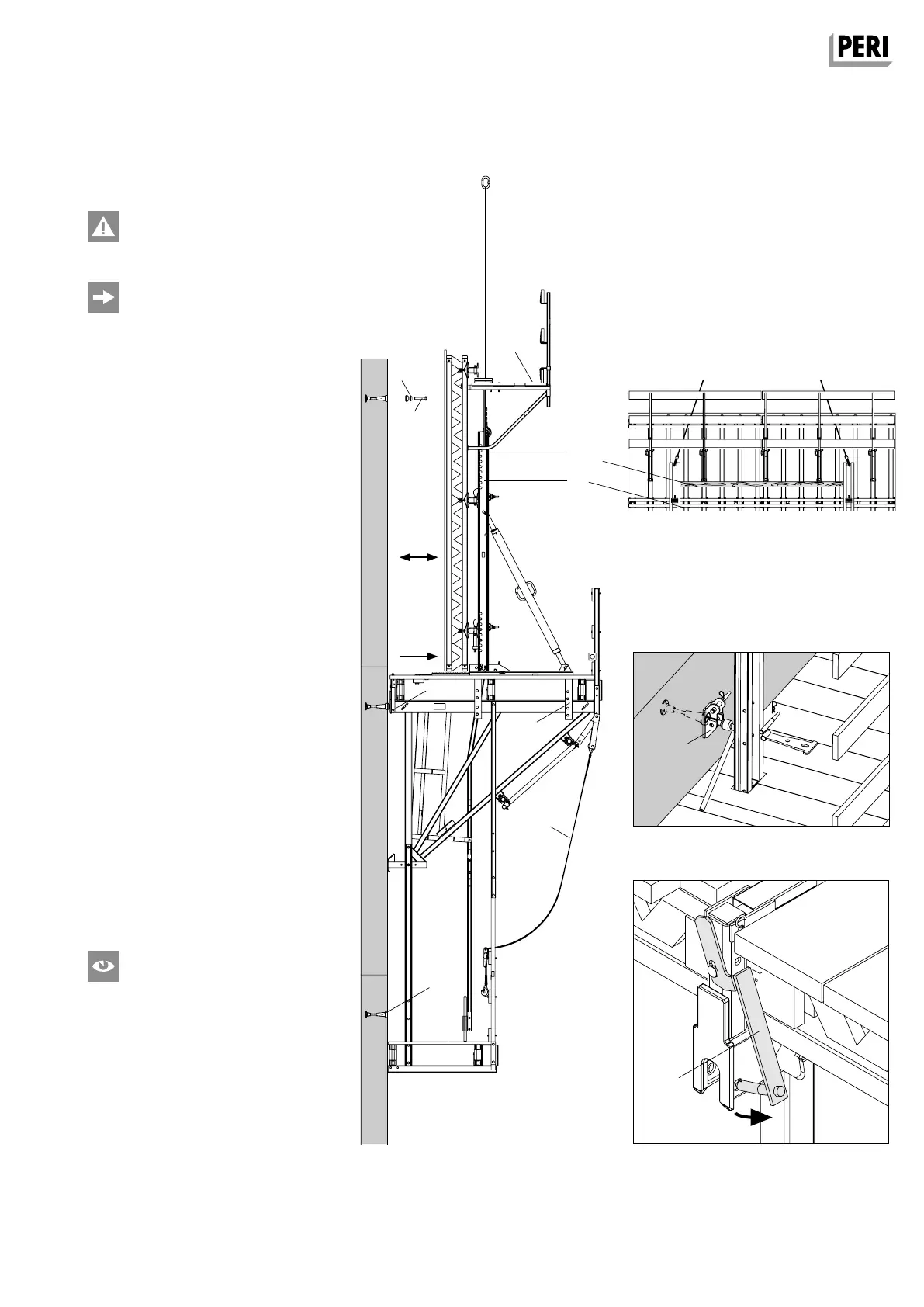

Fig. B4.02Fig. B4.01
Fig. B4.01a
10.3
5.6
5.7
4
4.10
x
1.5
7
2
5.1/5.3
1.5
