25
1,17 m
14 mm
≥ 10 cm
9.1
8.3 8.1
CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
A2 Other Assembly Work
Assembly of Finishing
Platform
Assembly in the Platform Beam Area
The plank jointing is centered on the
platform beams (8.1). The planks (8.3) to
the side of the platform post (9.1) must
be complete!
This planking is only tacked on and must
be removed when the fi nishing platform
is mounted.
A cut-out is made in the area around the
platform post.
(Fig. A2.10)
Finishing Tasks
1. Mark the platform according to planning
instructions e.g. with colour spray.
2. Preparations for transportation and storage.

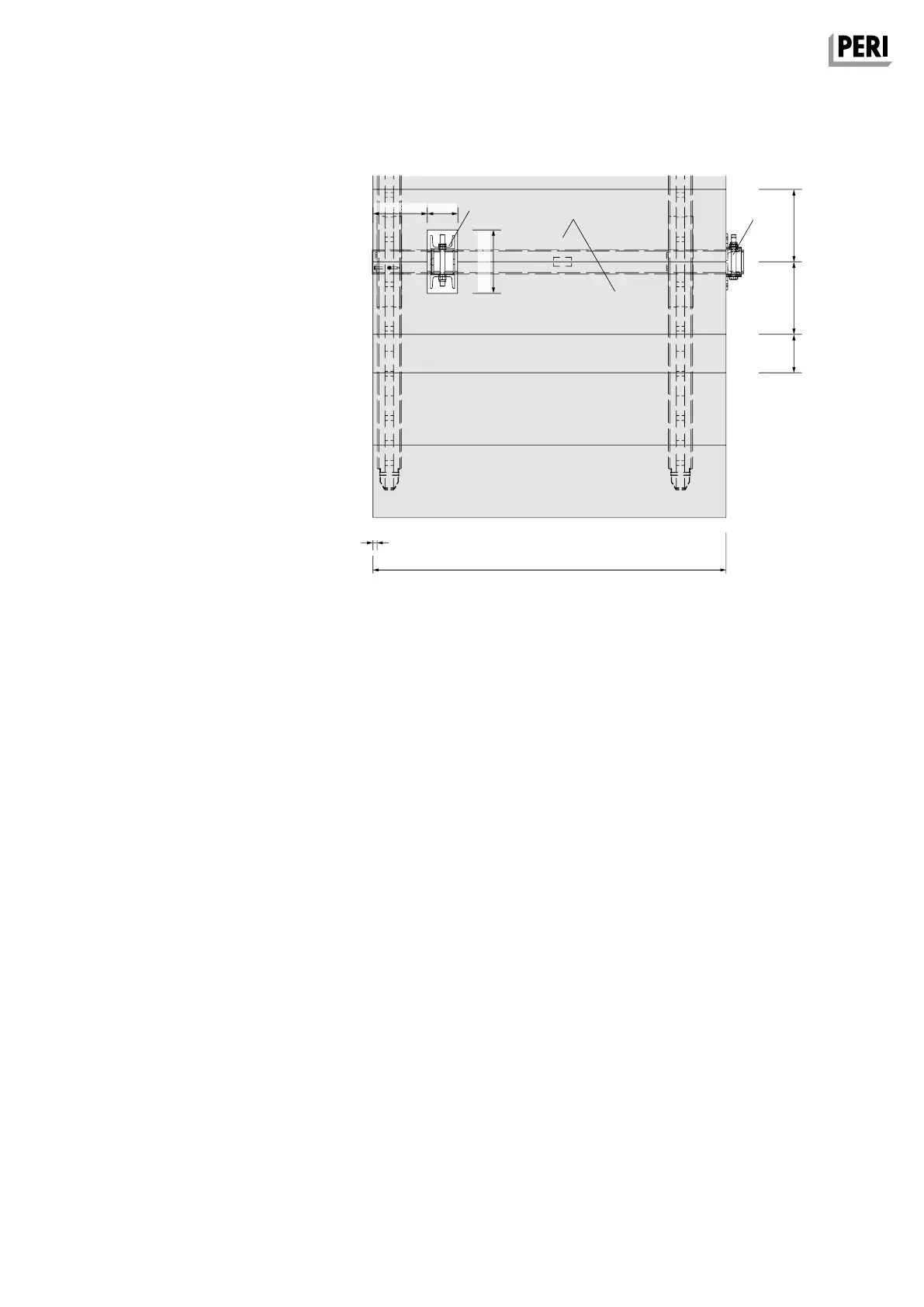

Fig. A2.10
max.
planking width
max.
planking width
AuV CB 240 EX.indb 25 29.06.16 09:44
