CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
B1 Work on the Construction Site
1.1
5.6
5.6
1.5
[1]
[2]
3
Mounting the CB 240
climbing unit to the first
wall section
Mounting
8. Raise platform and pivot over the scaf-
fold mounting rings. (Fig. B1.22)
9. Bring platform into position and simul-
taneously lower without tilting.
Troubleshooting
– If no connection is made with the
Scaffold Mounting Ring (5.6) or the
bracket (1.1) jams, lift the platform and
re-lower.
– If the bracket spacing does not corre-
spond to the spacing of the Scaffold
Mounting Rings, the spacing of the
Leading Anchor on the formwork
must be checked.
– If the mounting procedure is not pos-
sible, the bracket spacing must be
corrected through the re-assembly of
the platform.
Are the brackets (1.1) attached to
both Scaffold Mounting Rings (5.6)?

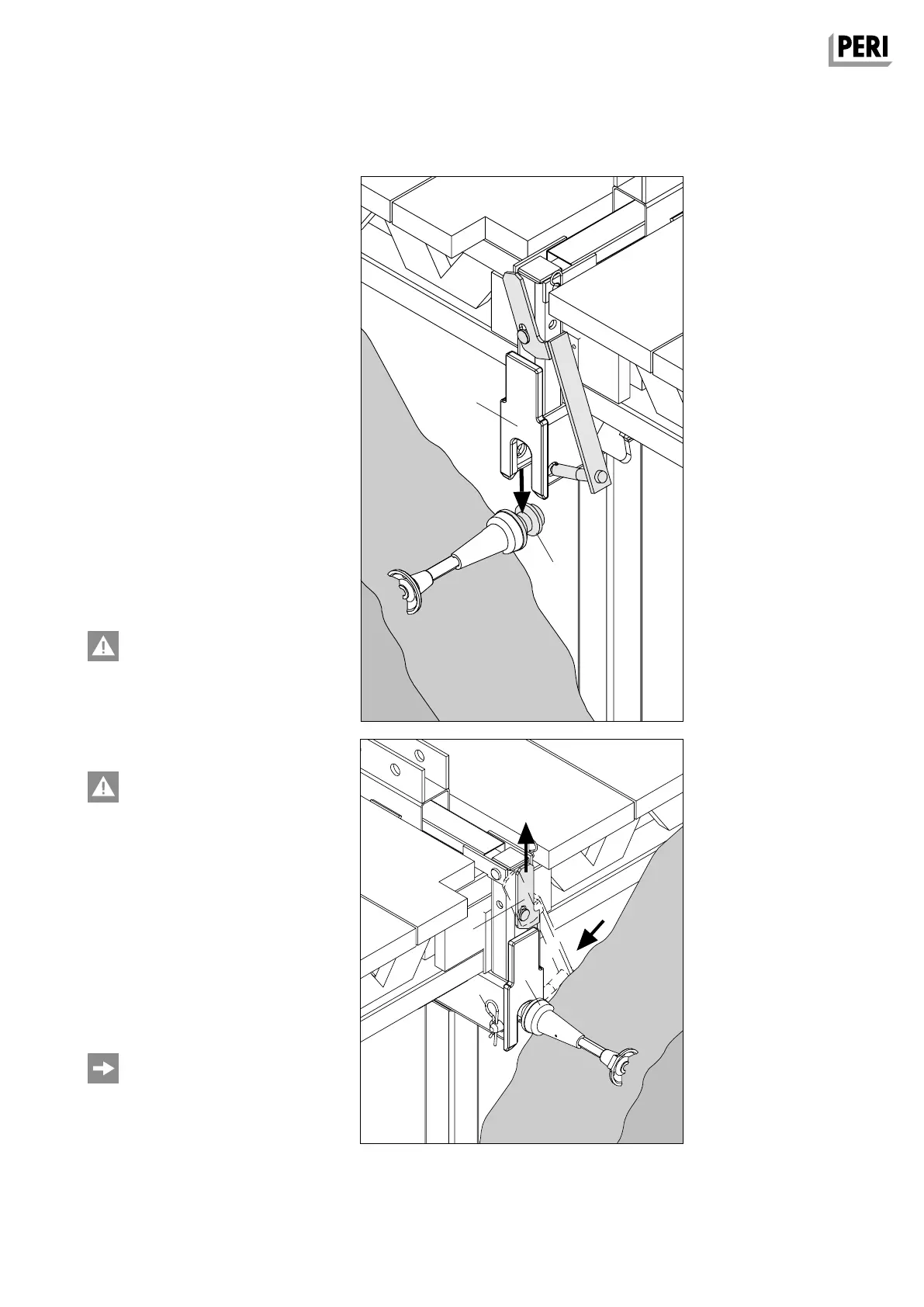

Fig. B1.22
Fig. B1.23
Securing the Platform
If the securing bolts cannot be in-
serted, personnel are to leave the
platform and then repeat the moun-
ting procedure!
10. Access platform.
11. Lift [1] securing bolts (1.5) and pivot
[2] under the Scaffold Mounting Ring
(5.6).
12. Secure with cotter pins (3).
(Fig. B1.23)
Use cut-out in the planking.
13. Remove crane hook.
For better visibility, some components
of the reinforced concrete wall are not
featured.
