CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
B2 Assembly of the Formwork Elements
2.2 2
3.1
3.2
10.3
4
4.6
10
3.2
3.1
2.2
2

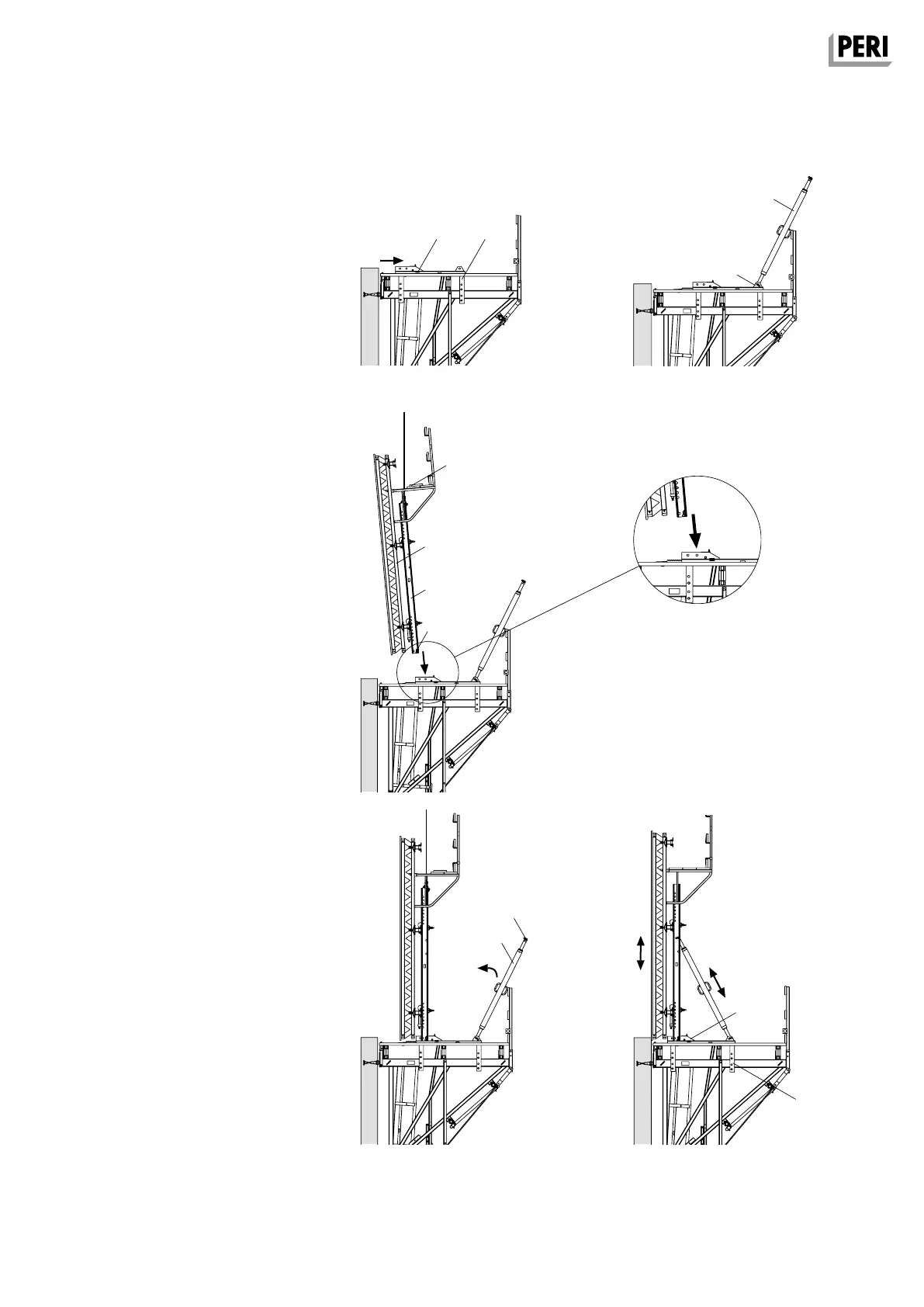

Fig. B2.05 Fig. B2.06
Fig. B2.07
Fig. B2.08
Fig. B2.09
VARIO GT 24 Element
Assembly of VARIO GT 24 Formwork
Element on CB 240 Bracket
1. Retract Carriage CB 240 (2) and
secure with wedge (2.2). (Fig. B2.05)
2. Fix Adjustable Brace 164-224 (3.1) to
Carriage using bolts and cotter pins
(3.2). Spindle out to the approximate
length and attach to ladder cage to
prevent tipping over. (Fig. B2.06)
3. Open concreting platform decking
(10.3) above the strongback. Secure
loose decking components.
4. Attach complete formwork element
to the Strongback (4) and position on
the CB 240 platform. (Fig. B2.07)
5. Mount Strongback CB (4) to Carriage
using bolts Ø 25 x 180 and cotter
pins (4.6). Holes in Carriage, see
Details. (Fig. B2.07)
6. Fix Adjustable Brace (3.1) to Strong-
back with bolts Ø 25 x 180 and cotter
pins (3.2). (Fig. B2.08)
7. Detach lifting gear.
8. Close decking (10.3) on concreting
platform.
9. Move Carriage (2) with formwork for-
ward to the wall and secure Carriage
with wedge (2.2).
10. Align formwork. (Fig. B2.09)
Detail
