CB 240 Climbing Formwork
Instructions for Assembly and Use – Standard Configuration
B1 Work on the Construction Site
Fig. B1.28.1
Fig. B1.28.2
Fig. B1.28.3
Fig. B1.28.4
9.6
9.6
9.1
9.1
9.2
9.5
9.2
9.6
9.6
9.1
9.6
9.4
9.6
9.6
9.6
3,65
42
9.1
9.6
9.4
9.6
9.6
9.6
m
1,69
5
m
1,75 m
1,50
4,15 m
1,89
5
2,05 m
1,20 m m
5,45 m
3,49
5
m
3,55 m
2,20 m
5,95 m
3,69
5
m
3,85 m
2,00 m

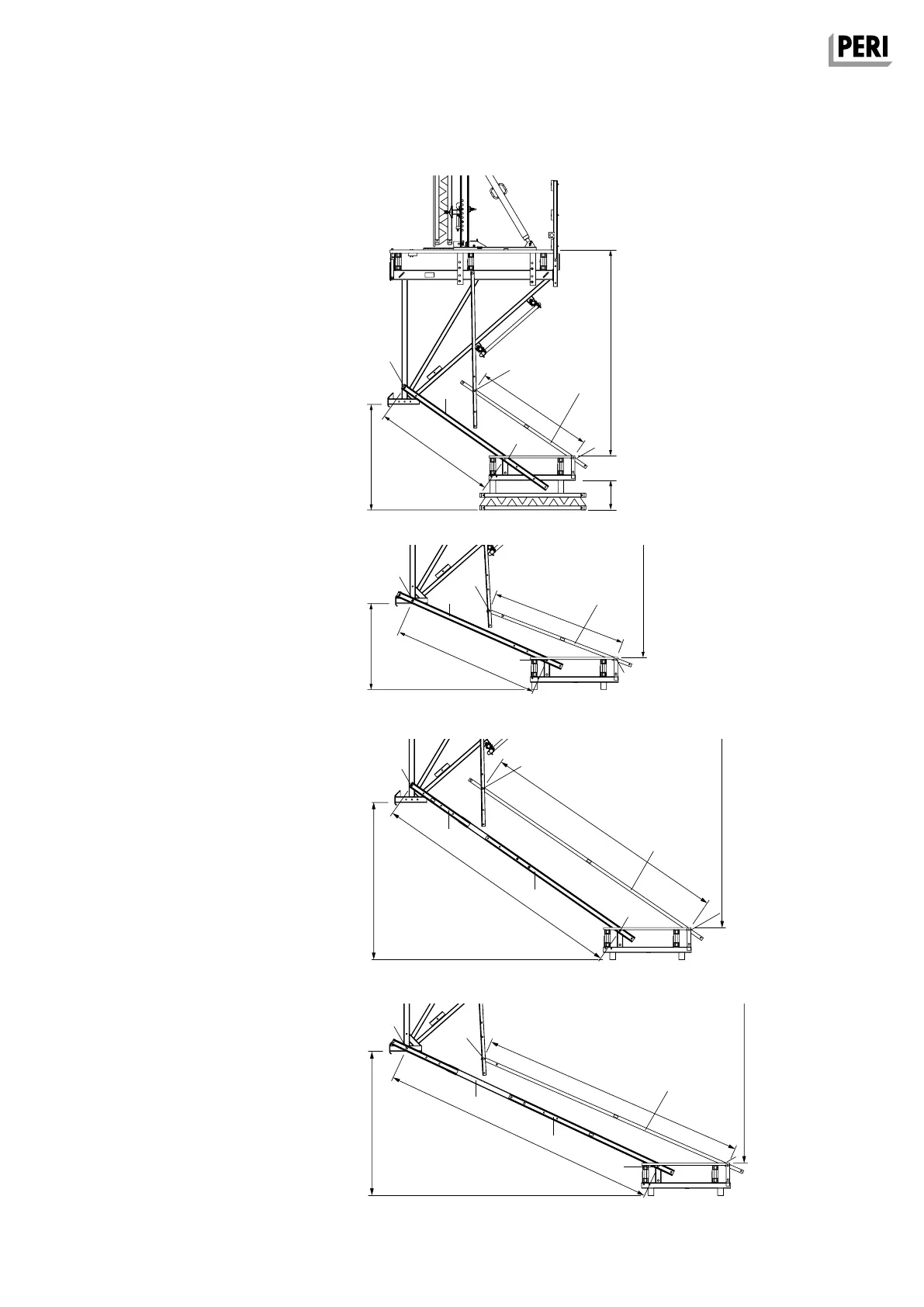

Concreting height 1.50 – 3.10 m.
Working platform – finishing platform
spacing: 3.65 m. Required free space:
≥42 cm. Mark out Platform Post CB 225
(9.1) and Guardrail Post CB 190 (9.4).
(Fig. B1.28.1)
Concreting height 2.00 – 3.60 m.
Working platform – finishing platform
spacing: 4.15 m. Mark out Platform Post
CB 225 (9.1) and Guardrail Post CB 190
(9.4).
(Fig. B1.28.2)
Concreting height 3.30 – 4.90 m.
Working platform – finishing platform
spacing: 5.45 m. Firmly bolt (9.6)
Platform Post CB 225 (9.1) to the Post
Extension CB 180 (9.2). Mark out Guard-
rail Post CB 370 (9.5).
(Fig. B1.28.3)
Concreting height 3.80 – 5.40 m.
Working platform – finishing platform
spacing: 5.95 m. Firmly bolt (9.6)
Platform Post CB 225 (9.1) to the Post
Extension CB 180 (9.2). Mark out Guard-
rail Post CB 370 (9.5).
(Fig. B1.28.4)
9.6
9.6
9.5
9.6
9.6
Mounting of the CB 240
Finishing Platform
Fixing points for the Platform Posts
225 and Guardrail Posts CB 190 or 370.
Firstly, only loosely tighten the bolt (9.6)
for an articulated connection.
m
