Permobil ICS - Switchbox Label Sheet

25
Switchbox Label Sheet

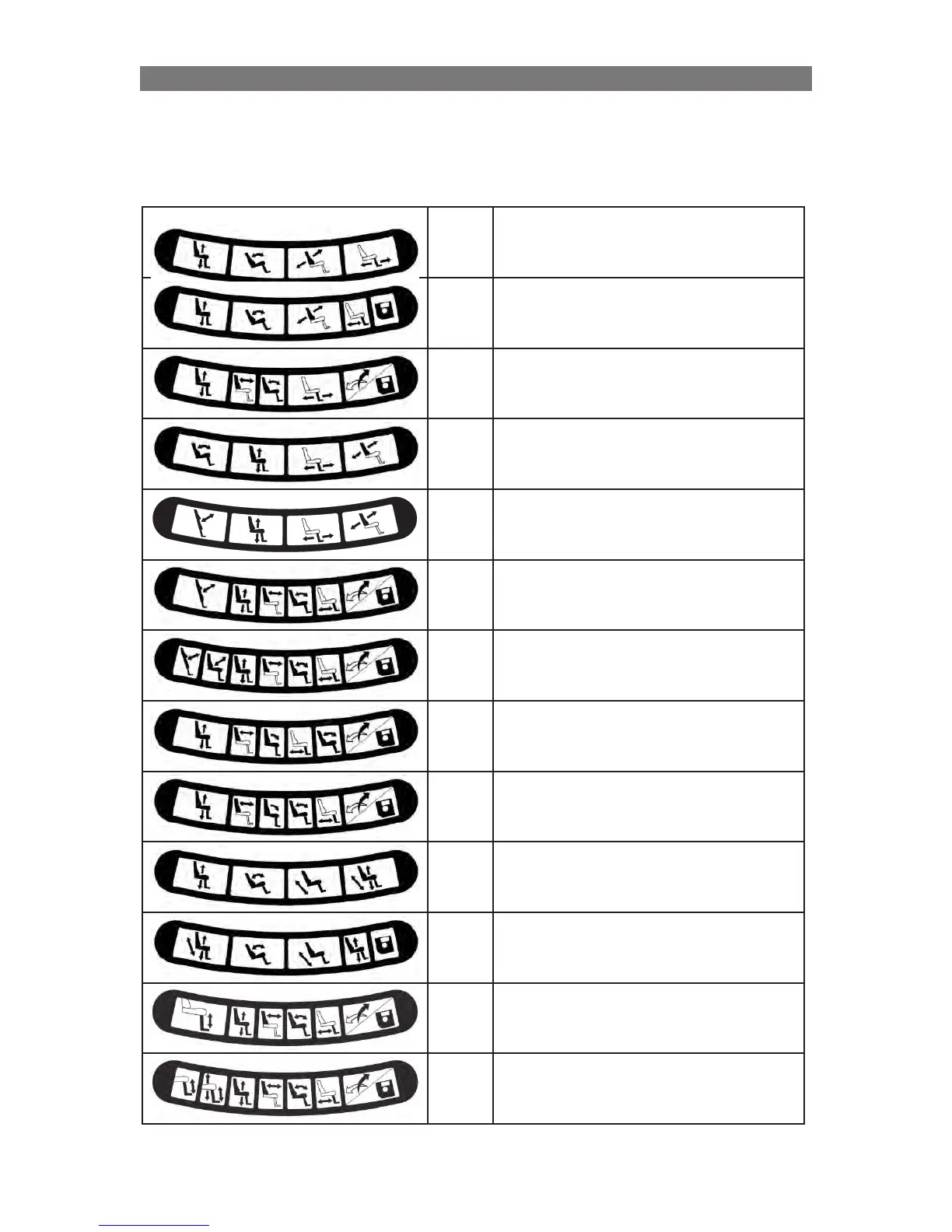

For ease of programming, the Layout Numbers for each Label included in Part Number 1822329 are
shown.
Programming Configuring using the ICS Switchbox
A
Corpus II & Corpus 3G – Layout 1
Corpus APE & Corpus VS – Layout 1
RS – Layout 3
PS – Layout 1
B
Corpus II & Corpus 3G – Layout 2
Corpus APE & Corpus VS – Layout 2
RS – Layout 4
PS – Layout 2
C
Corpus II & Corpus 3G – Layout 3
Corpus APE & Corpus VS – Layout 3
D
Corpus II & Corpus 3G – Layout 4
Corpus APE & Corpus VS – Layout 4
VS – Layout 1
PS – Layout 3
E
VS – Layout 2
Corpus APE & Corpus VS – Layout 5
F
VS – Layout 3
Corpus APE & Corpus VS – Layout 6
G
VS – Layout 4
Corpus VS – Layout 7
H
RS – Layout 1
I
RS – Layout 2
J
K450 MX – Layout 1
K
K450 MX – Layout 2
L
Corpus II & Corpus 3G - Layout 7
Corpus APE & Corpus VS – Layout 12
M
Corpus II & Corpus 3G - Layout 5
Corpus APE – Layout 13
