10

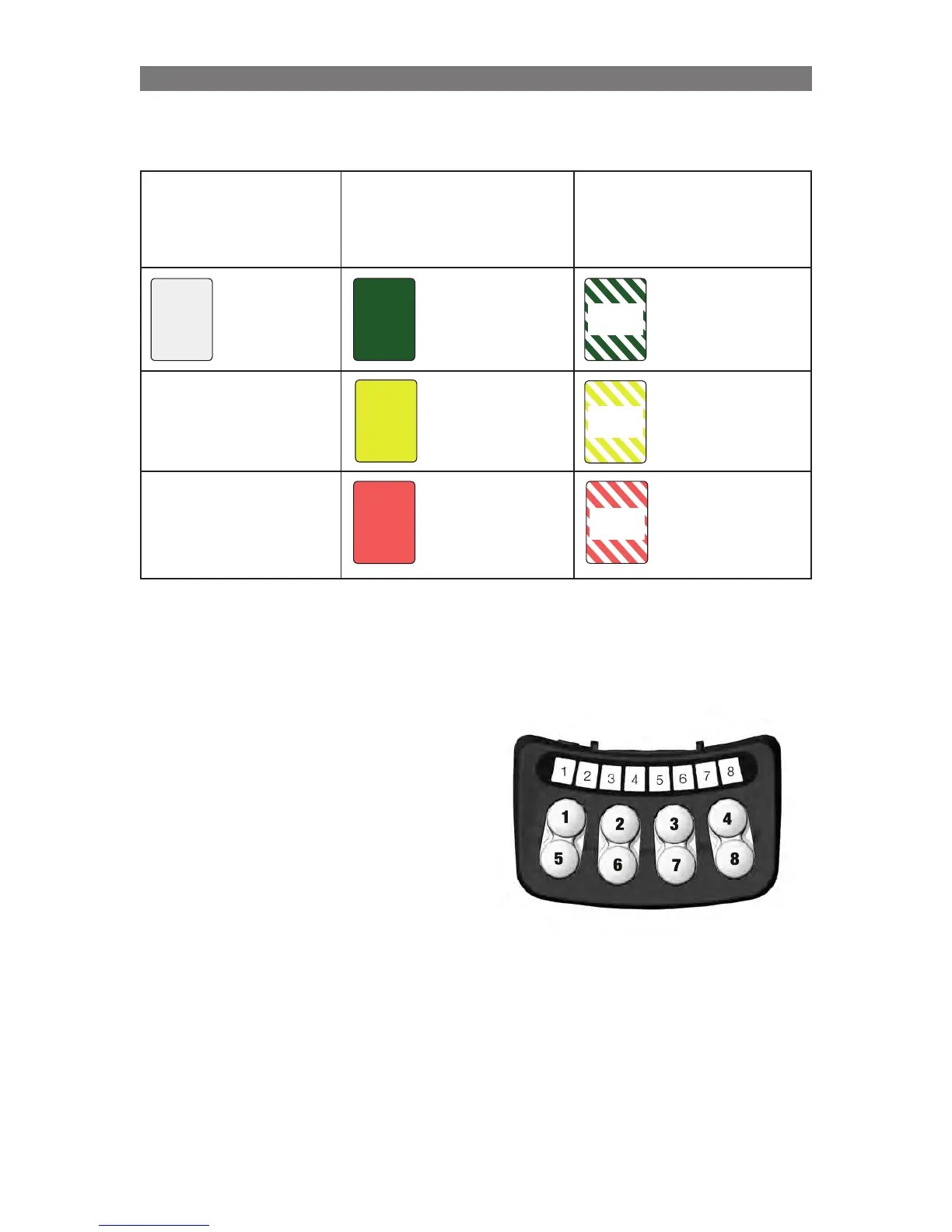

Switchbox LED Colors and their meanings
Basic Seat Operation through
Switchbox
Controlling Seat Functions
The Seating System Power Functions can
be controlled via the ICS Switchbox. The ICS
Switchbox has eight switches (pushbuttons or
toggles) and eight LEDs as seen below.
Depending on the Switchbox Layout that has
been selected and the mode that the Switchbox
is currently in, the functionality of each switch can
be different.
When using the ICS Switchbox, it is important to
note the Position, Color and “Light Type” (Solid/
Flashing) of the LEDs that illuminate the Icons on
the Switchbox.
These different characteristics communicate the
current switchbox mode and which seat function a
particular switch will control.
Function not
available
right now.
All OK
Drive Full Speed.
SOLID
GREEN
NO
LED
Special Mode
(Memory /
Configuration)
FLASHING
GREEN
Seat OK
Drive Speed Limited.
SOLID
YELLOW
Safety Limit Reached
Will only move one
direction.
FLASHING
YELLOW
Seat OK
Drive Inhibited.
SOLID
RED
Actuator
Problem
Overcurrent,
Comm, etc.
Solid Colors
Communicate Drive Related
Information.
Flashing Colors
Communicate Actuator
Related Information.
LED Off
LASHING
RED
Operation Controls and Feedback
