Adjustment
13.04.17 Holding-down clamp ( 1474E1 only )
Requirement
The holding-down clamp 1 must
1. be positioned as close as possible to needle when viewed in direction of sewing, and
2. be centered in respect to the needle when viewed in transverse direction of sewing.
3. With the roller-presser resting on the fabric, the clearance between the holding-down
clamp 1 and the fabric should be 0.2 - 0.3 mm.
● Move holding-down clamp 1 ( screw 2 ) according to requirement 3.
● Move bracket 3 ( screw 4 ) according to requirement 1.
● Move bracket 5 ( screws 6 ) according to requirement 2.

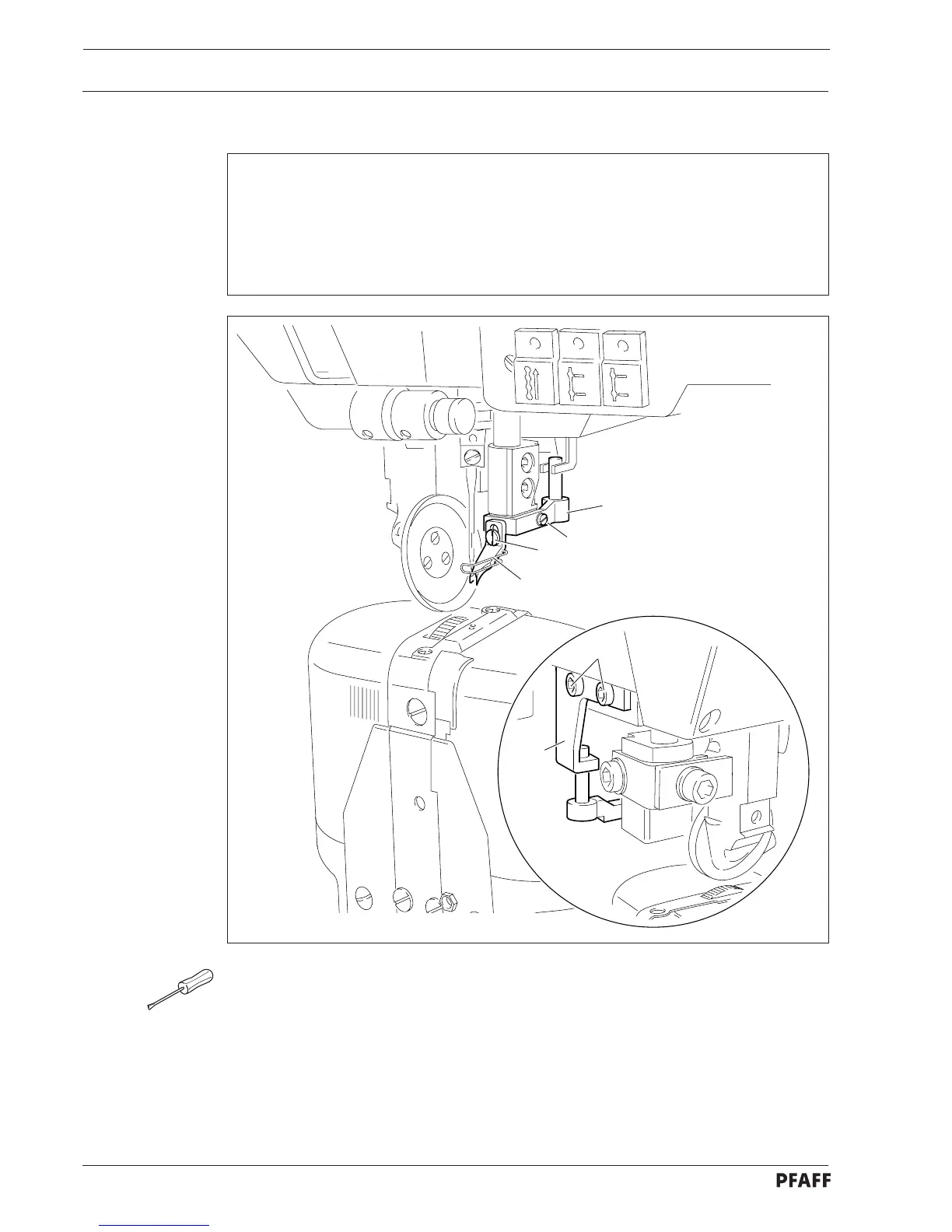

Fig. 13 - 16
1
2
3
4
6
5
13 - 21
