Pfaff 1474 E1

Adjustment
13.06.04 Knife motion
Requirement
With the edge trimmer swung in and the needles in the needle holes, half of the motion of
the knife 3 must be in front of the needle, and half behind it, when the motor shaft is
turned by hand.

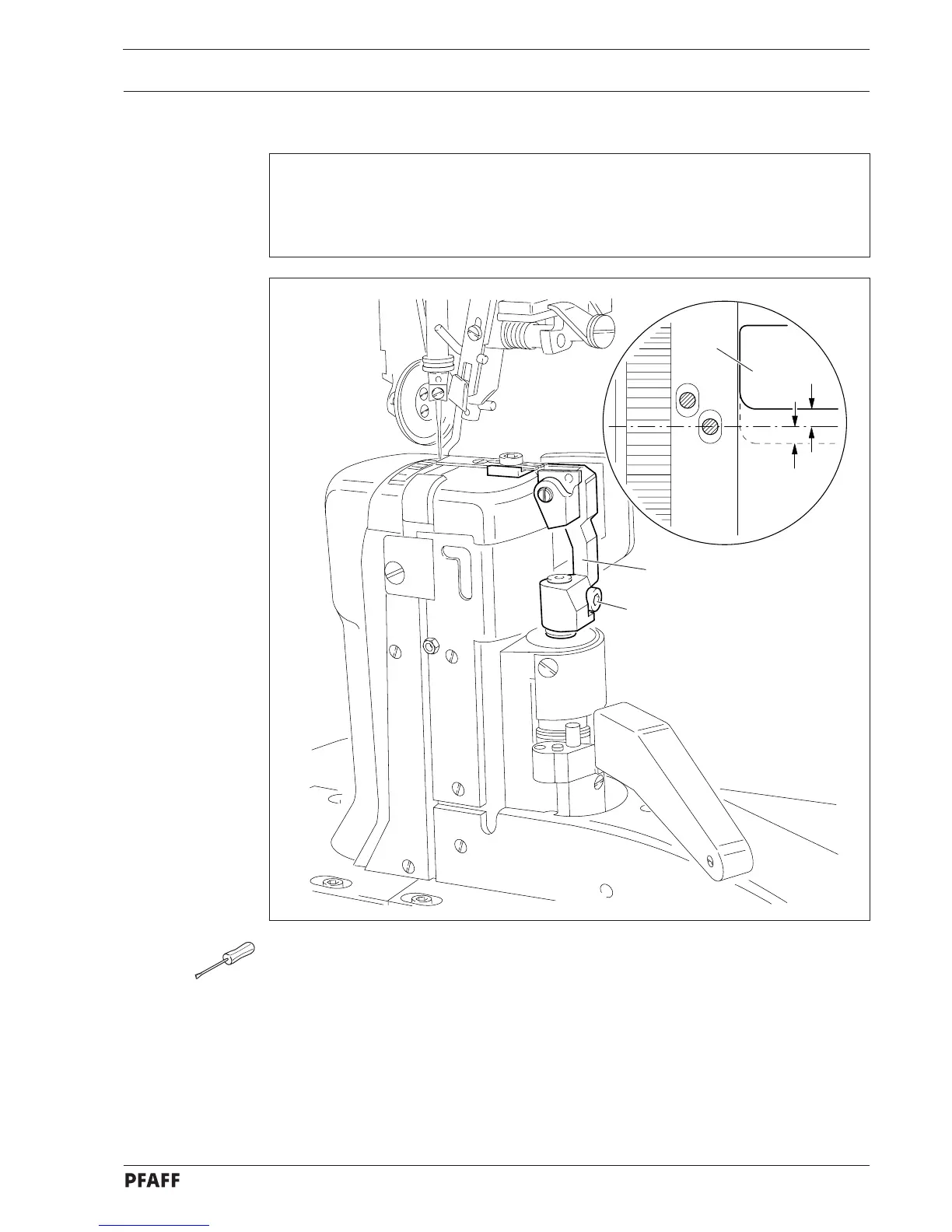

Fig. 13 - 31
● Turn the machine off and swing in the edge trimmer.
● Move knife carrier 1 ( screw 2 ) in accordance with the requirement.
½
½
3
1
2
13 - 36
