Pfaff 1474 E1

Adjustment
13.04.06 Pre-adjusting the needle height
Requirement
With the needle bar in its TDC, there should be a clearance of approx. 22 mm between
the point of the needle and the needle plate.

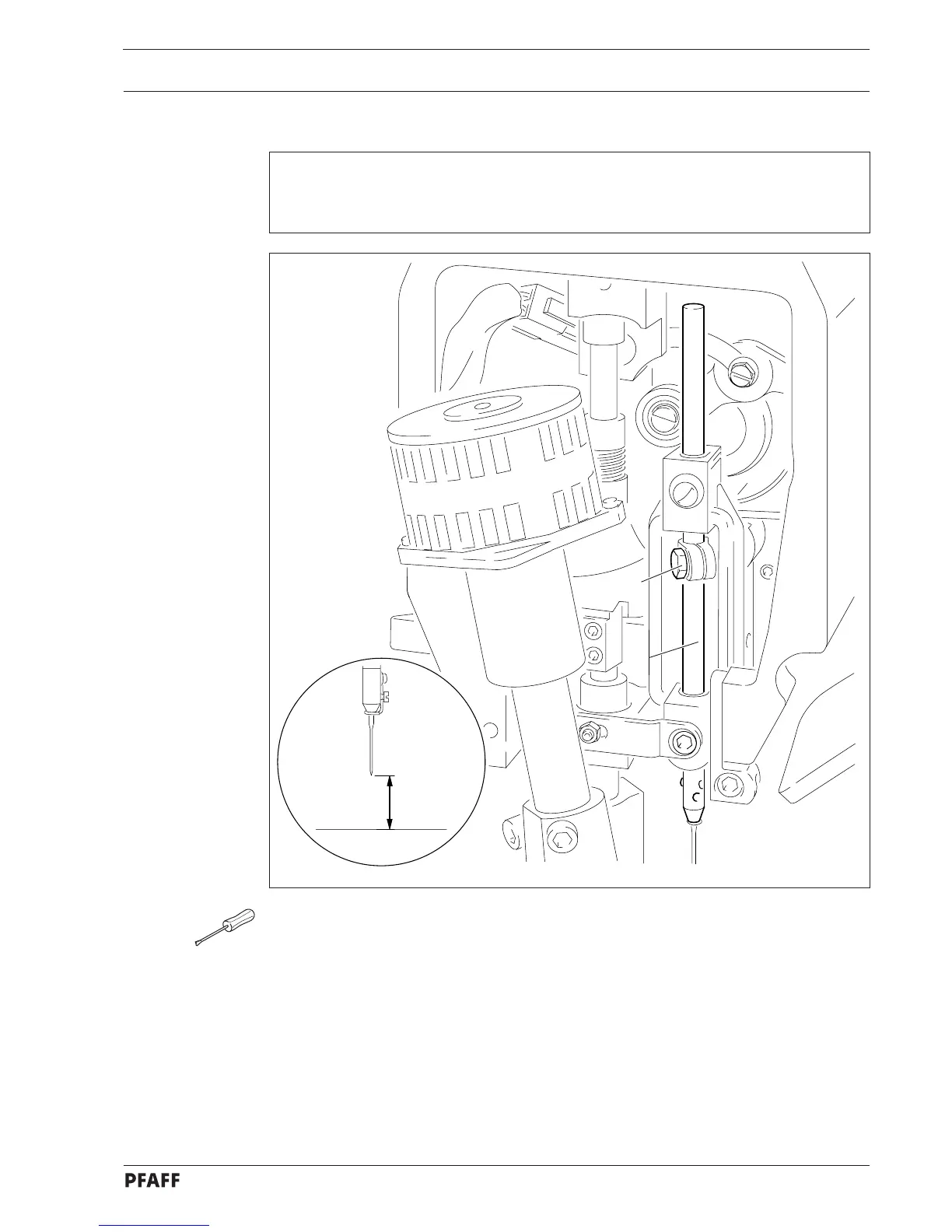

Fig. 13 - 05
1
2
22 mm
● Move needle bar 1 ( screw 2 ) according to the requirement without twisting it.
