Adjustment
13.07.04 Engaging solenoid
Requirement
With the thread trimmer switched on, the magnet core must still be positioned at a
distance of 1 mm before its lower stop.

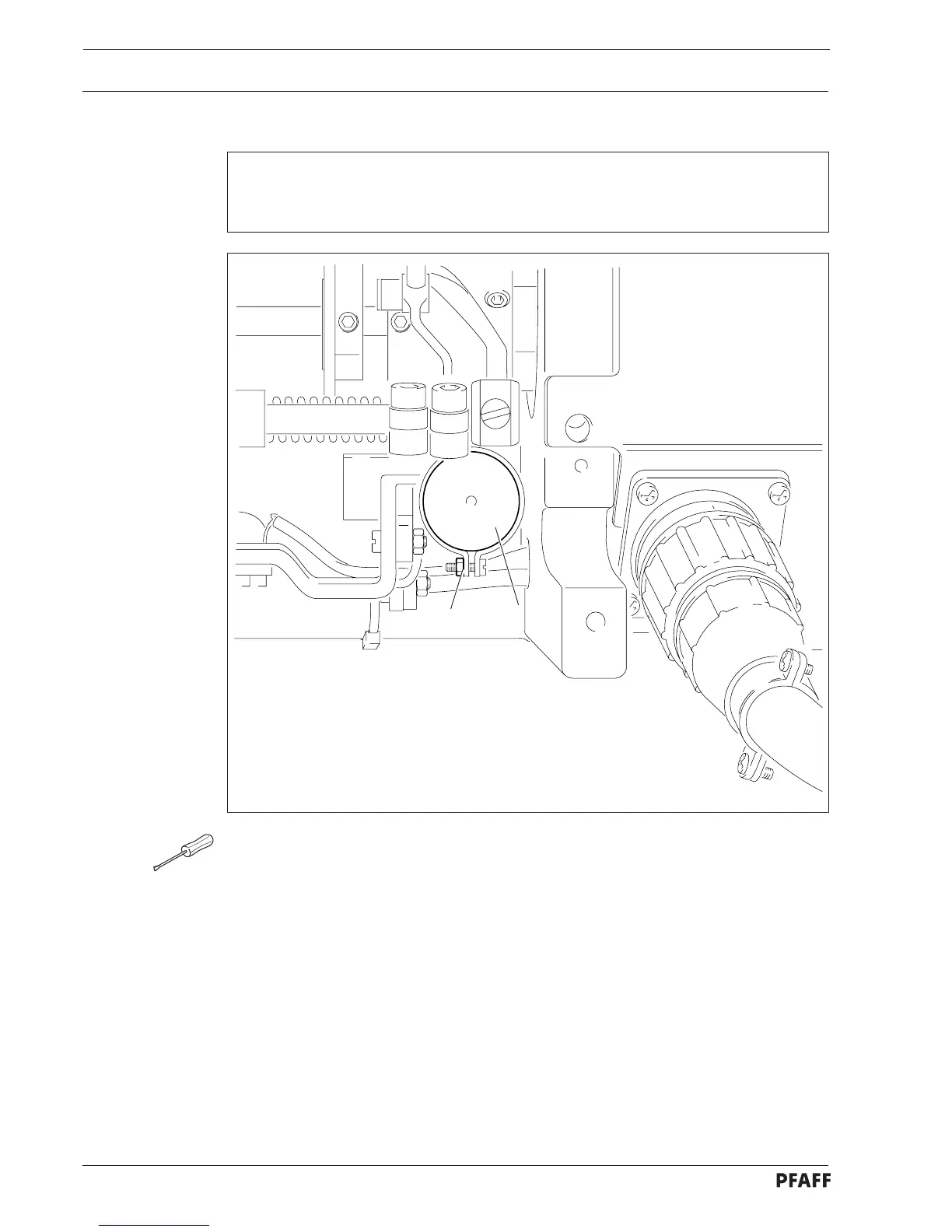

Fig. 13 - 36
● Bring the needle bar to BDC and activate the tripping lever by hand.
● Push solenoid housing 1 ( screw 2) up as far as possible and then move it in accordance
with the requirement.
● Lift the tripping lever out of the control cam by hand.
2
1
