Preparation

9.07 Threading the needle/Adjusting the needle thread tension in the 1474E1

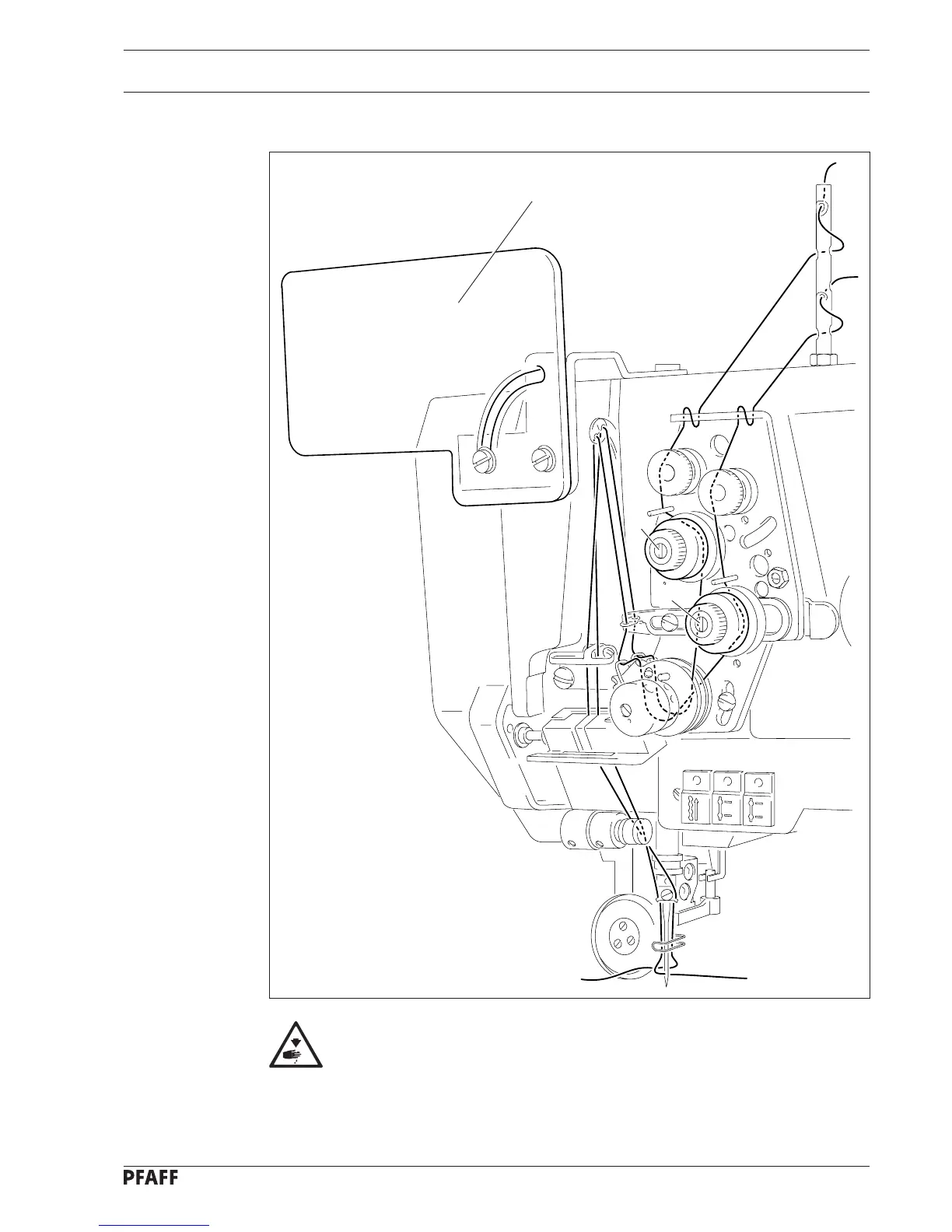

Fig. 9 - 07

Turn the machine off!

● Swing eye guard 1 up.

● Thread both needle threads as shown in Fig. 9 - 07.

● Adjust the needle thread tension by turning knurled screw 2.

9 - 6
