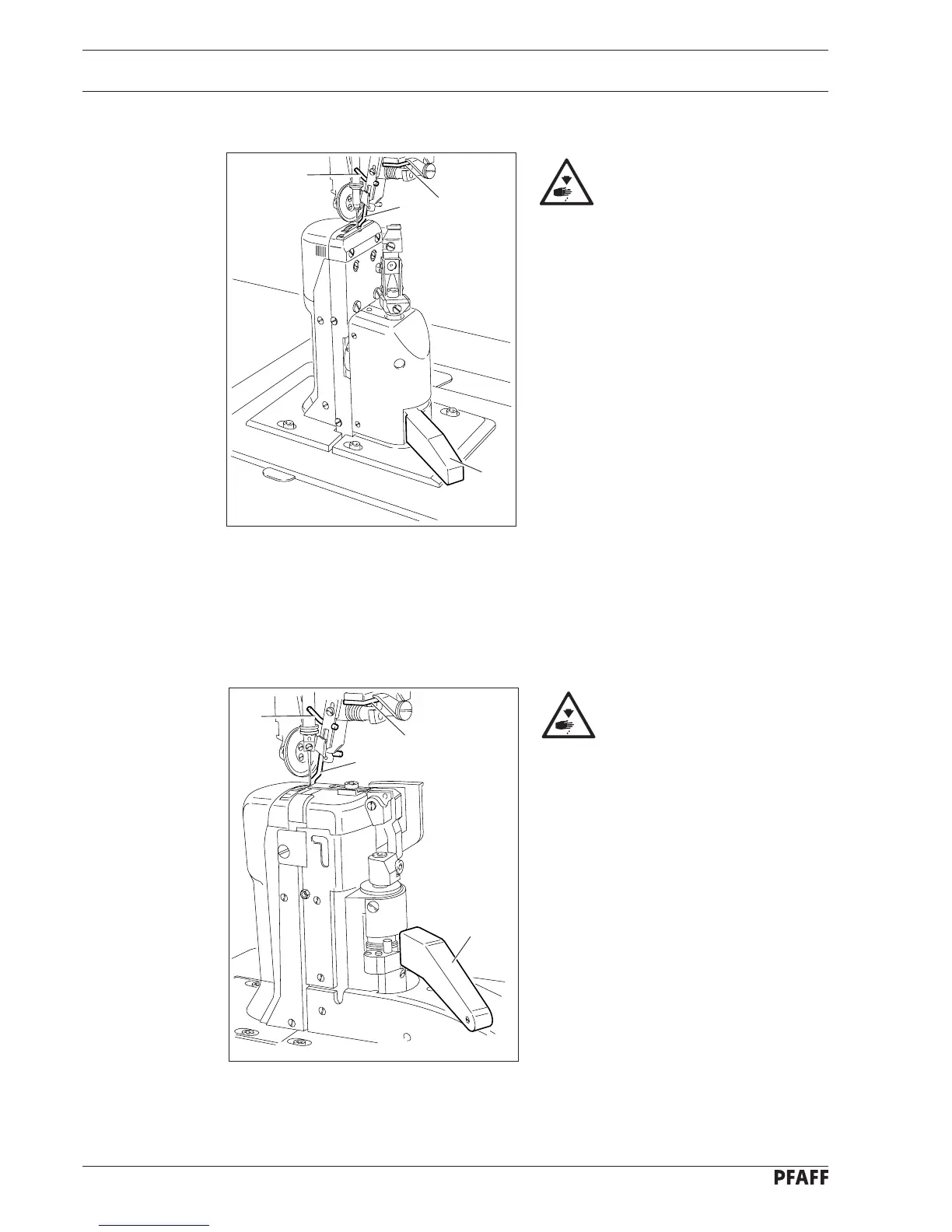

Controls
7.07 Edge trimmer -725/04 for the 1471E1
Do not reach into the area of
the knife when it is running.
Danger of injury!
Switching on the knife drive:
● Bring the knife into start position by
pushing lever 1 to the rear.
Switching off the knife drive:
● Press lever 1. The knife swings to the
rear.
Switching on the edge guide:
● The edge guide 2 is brought into start
position by swinging in the edge guide 2
manually and pressing lever 3.
Switching off the edge guide:
● Raise the edge guide 2 and allow it to
engage. Now the edge guide 2 can no
longer operate.
● Raise lever 4. The edge guide swings to
the rear.
Fig. 7 - 07
Fig. 7 - 08
1
2
4
3
7.08 Edge trimmer -725/04 for the 1474E1
Do not reach into the area of
the knife when it is running.
Danger of injury!
Switching on the knife drive:
● Bring the knife into start position by
pushing lever 1 to the rear.
Switching off the knife drive:
● Press lever 1. The knife swings to the
rear.
Switching on the edge guide:
● The edge guide 2 is brought into start
position by swinging in the edge guide 2
manually and pressing lever 3.
Switching off the edge guide:
● Raise the edge guide 2 and allow it to
engage. Now the edge guide 2 can no
longer operate.
● Raise lever 4. The edge guide swings to
the rear.
3
2 4
1
