Adjustment
13.04.16 Roller-presser
Requirement
When the roller-presser 1 is resting on the feed wheel 5 it must
1. be parallel to the feed wheel 5 when viewed in the direction of sewing,
2. be in the middle of the ( left ) needle when viewed in the direction of sewing and
3. be as close as possible to the ( left ) needle when viewed in transverse direction of
sewing.
● Raise the roller-presser 1.
● Always observe requirement 1 when carrying out the following adjustments.
● Move the roller-presser 1 ( screw 2 ) in accordance with requirement 2.
● Allow the roller-presser 1 to come to rest on the feed wheel 5.
● Move the roller-presser bracket 3 ( screw 4 ) in accordance with requirement 3.
When sewing very tight curves the roller-presser 1 should be moved toward
the operator slightly.

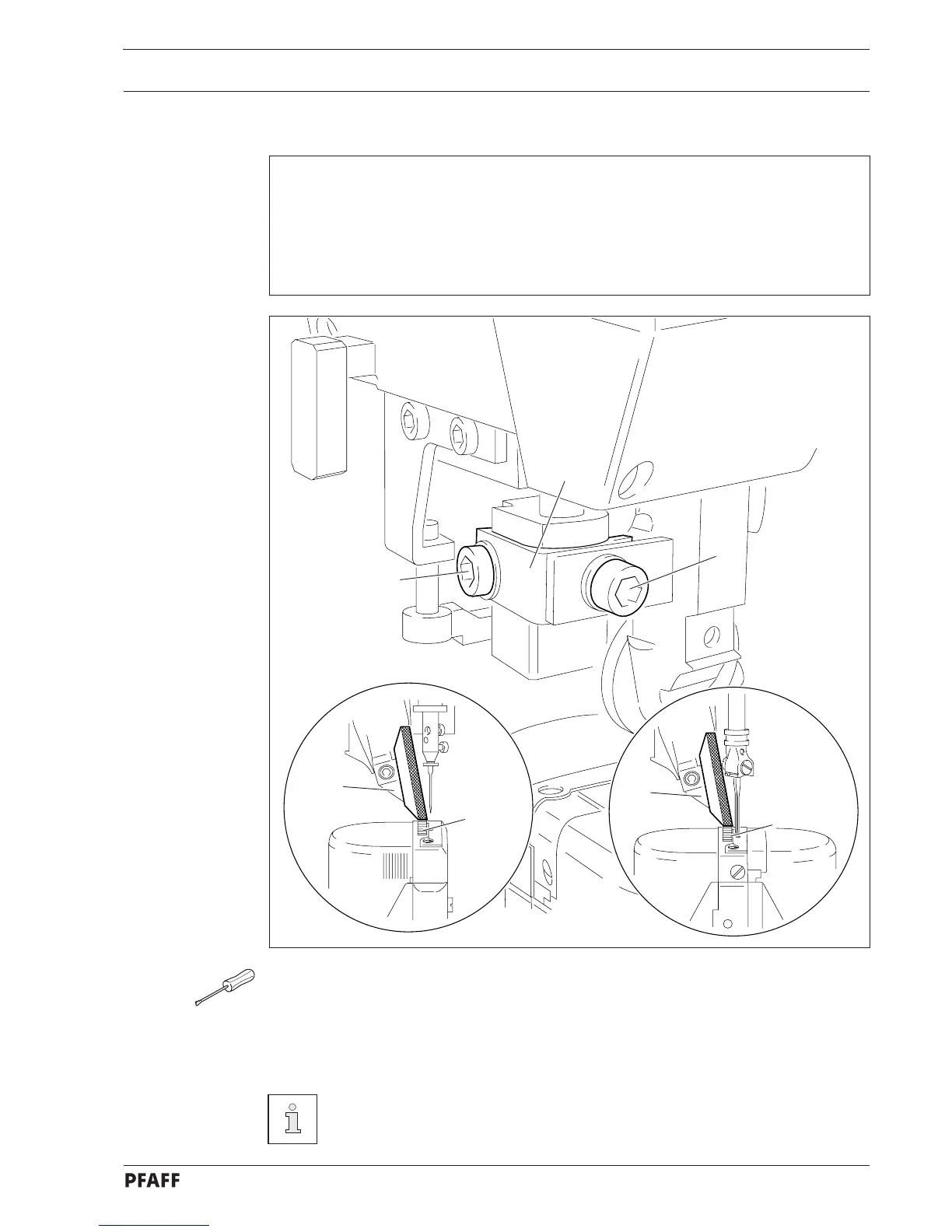

Fig. 13 - 15
3
2
4
1
5
1
5
13 - 20
