13.06.03 Knife stroke
Requirement
The knife stroke can be set within a range of 2.0 to 3.5 mm for ideal adaptation to any
material used.
1
3
2
-
+

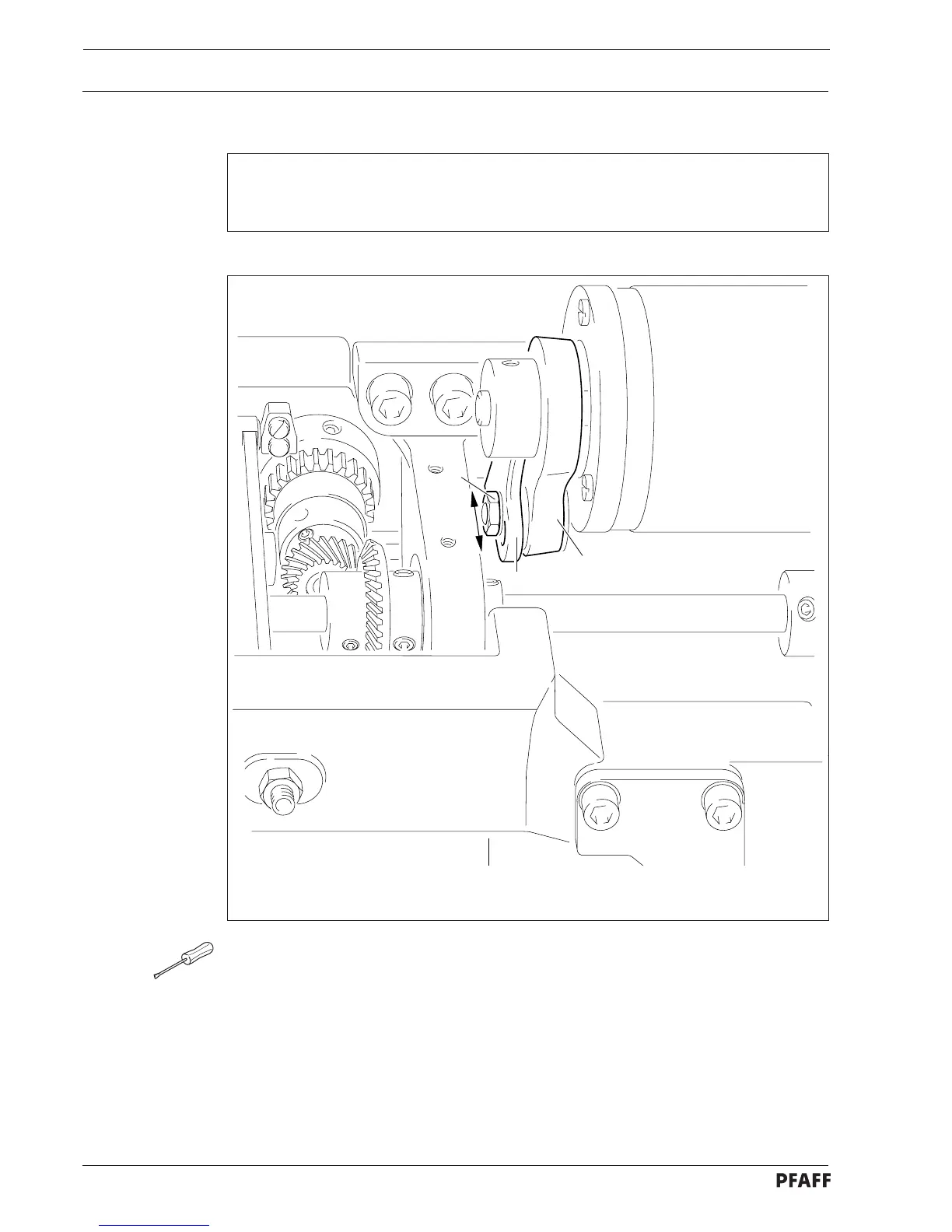

Fig. 13 - 30
● Turn crank 1 ( nut 2 ) in the connecting link 3 in accordance with the requirement.
