Pfaff 1474 E1

Adjustment
13.08 Tension release ( only on machines with thread tension control -906/10 )
Requirement
With solenoid 1 activated the tension disks 3 must be at least 0.5 mm apart.

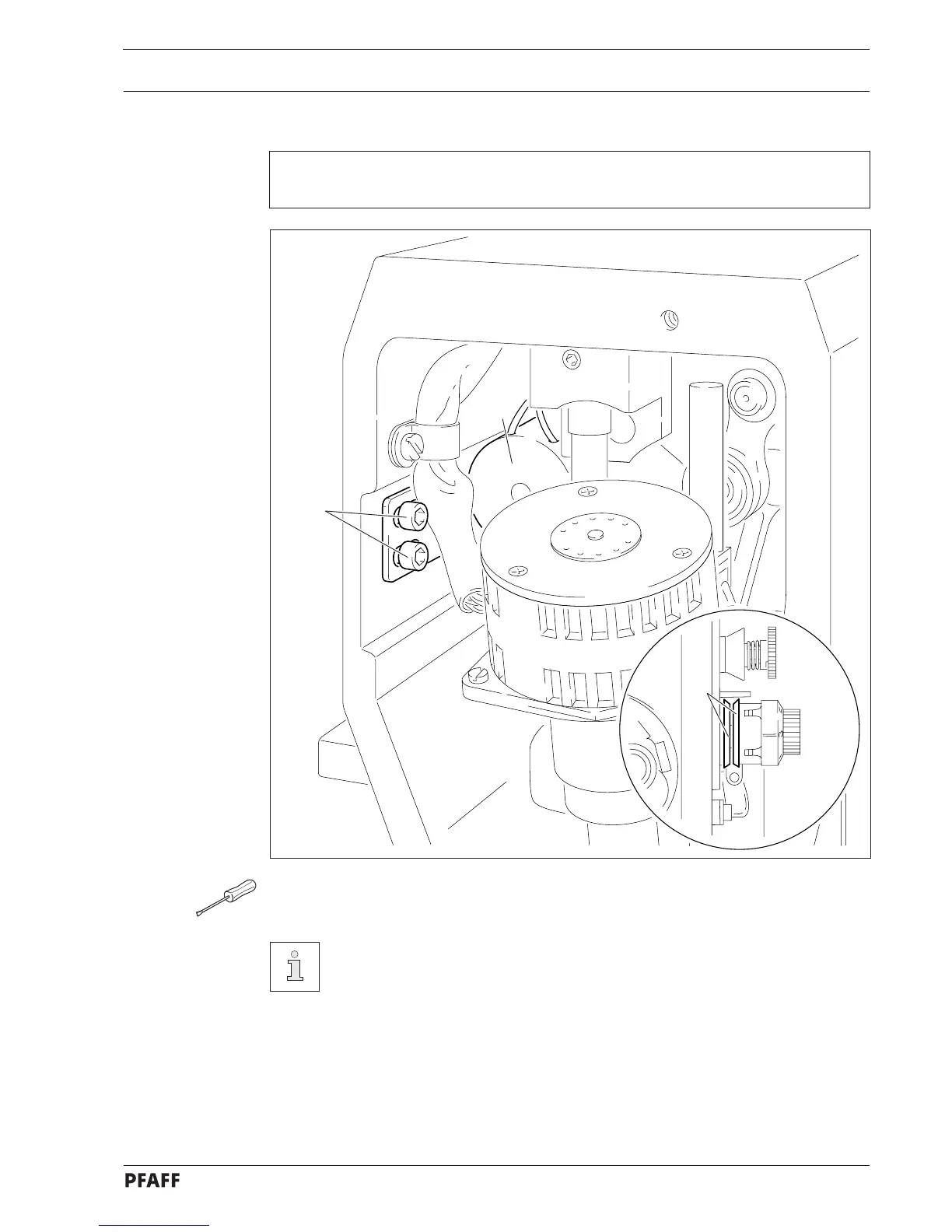

Fig. 13 - 48
● Actuate solenoid 1.
● Move solenoid 1 ( screws 2 ) in accordance with the requirement.
The timing of the tension release can be adjusted via the service functions
( see chapter 11.09 Summary of the service functions ).
