Adjustment
● Loosen nut 1, and unscrew screw 2 a couple of turns.
● Press on lever 3 and screw screw 2 back in by hand until you feel some resistance while
making sure that the lever 3 is not moved upwards.
● Continue screwing screw 2 back in by another half turn and tighten nut 1.

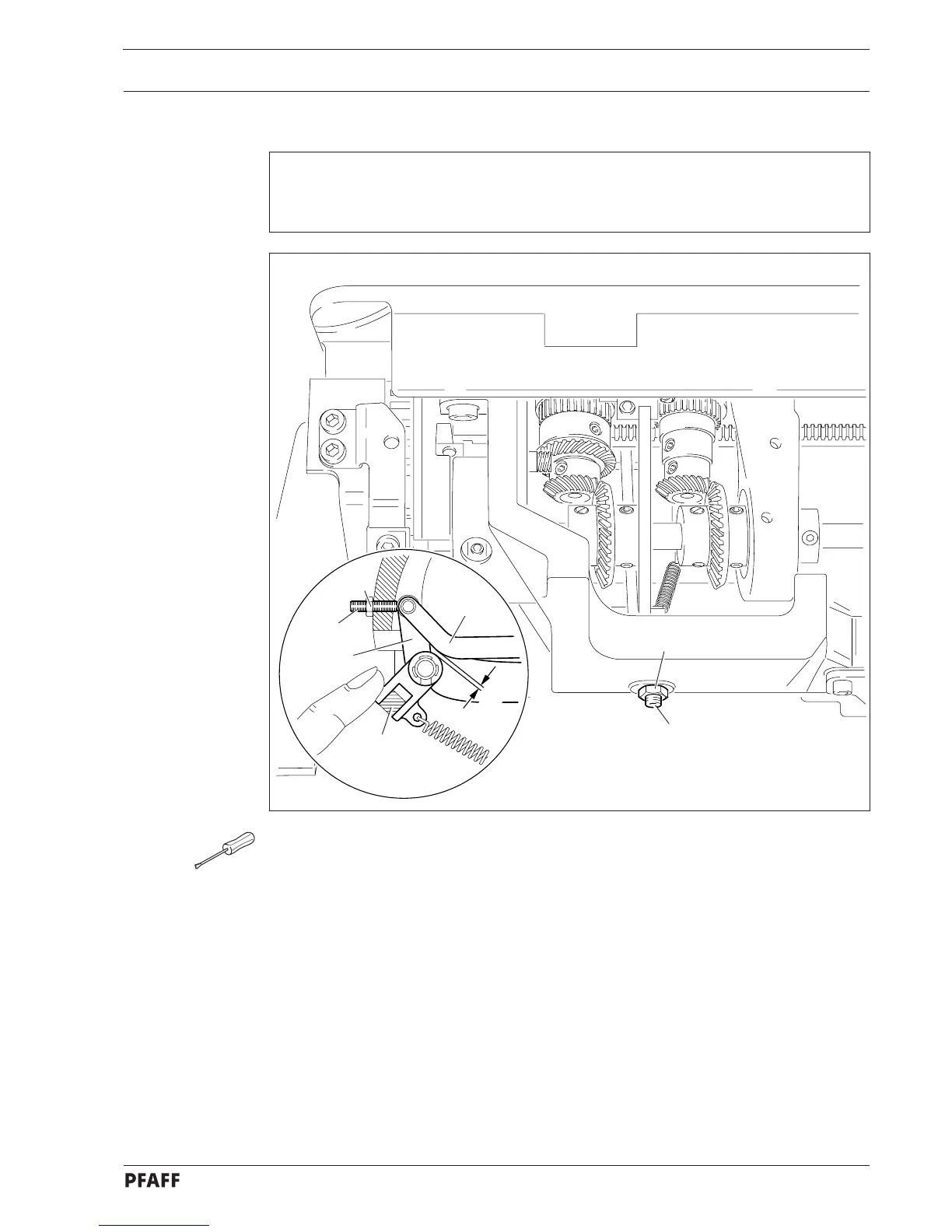

Fig. 13 - 37
1
2
3
4
5
1
2
0.5 mm
13.07.05 Scissor drive lever
Requirement
With the thread trimmer in resting position, there must be a clearance of approx. 0.5 mm
between the scissor drive lever 4 and the bearing collar of the lever 5.
