Pfaff 1474 E1

Mounting and commissioning the machine
8 - 2

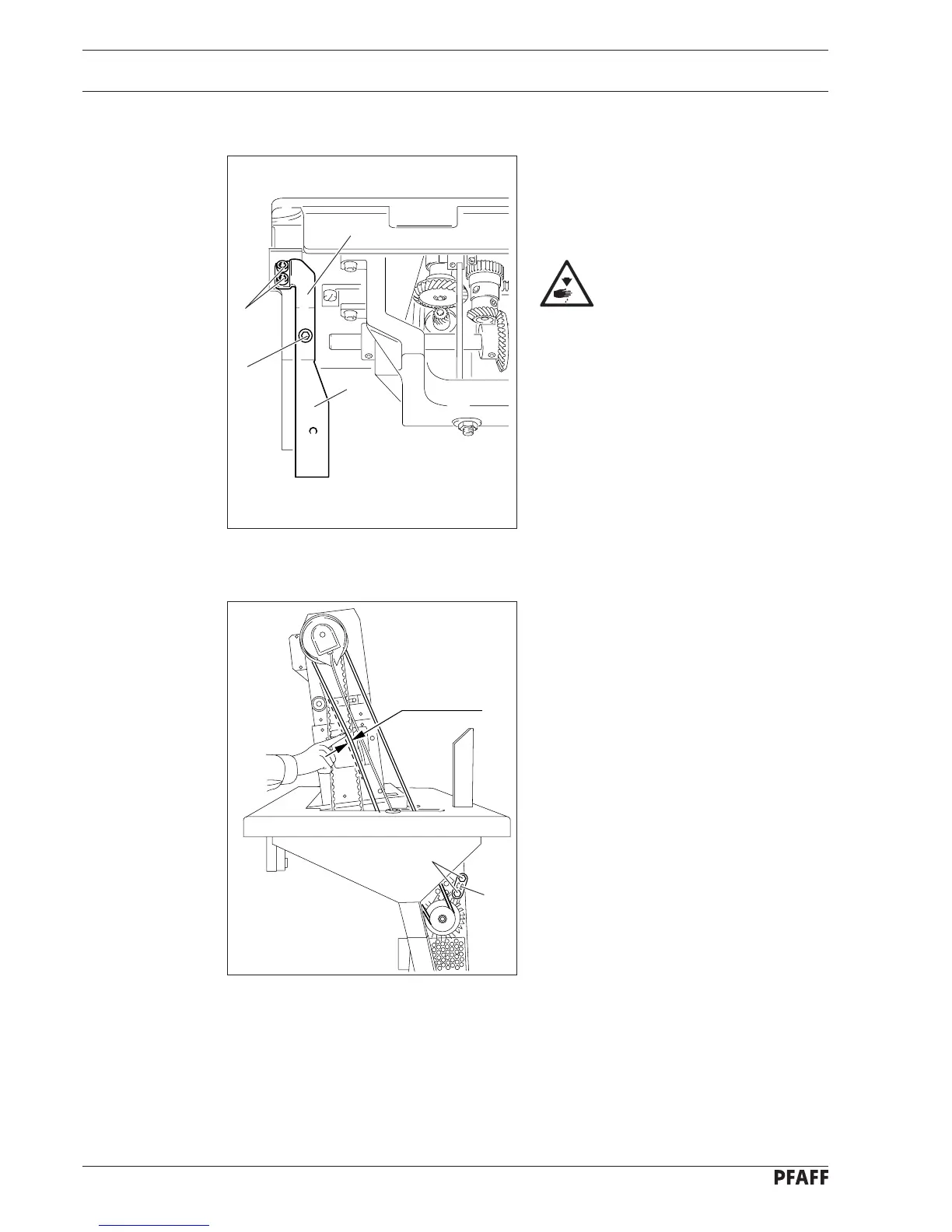

8.01.03 Adjusting the V-belt tension
● Loosen nuts 1.
● Tighten the V-belt with belt take-up
hanger 2.
● Tighten nuts 1.
Fig. 8 - 03
1
2 cm
2
Fig. 8 - 02
8.01.02 Fitting the tilt lock
● Screw on tilt lock parts 1 and 2, provided
in the accessories, using screws 3 and 4.
Do not operate the machine
without tilt lock 1!
Danger of crushing between
sewing head and table top!
1
2
3
4
