Mounting and commissioning the machine
8 - 4

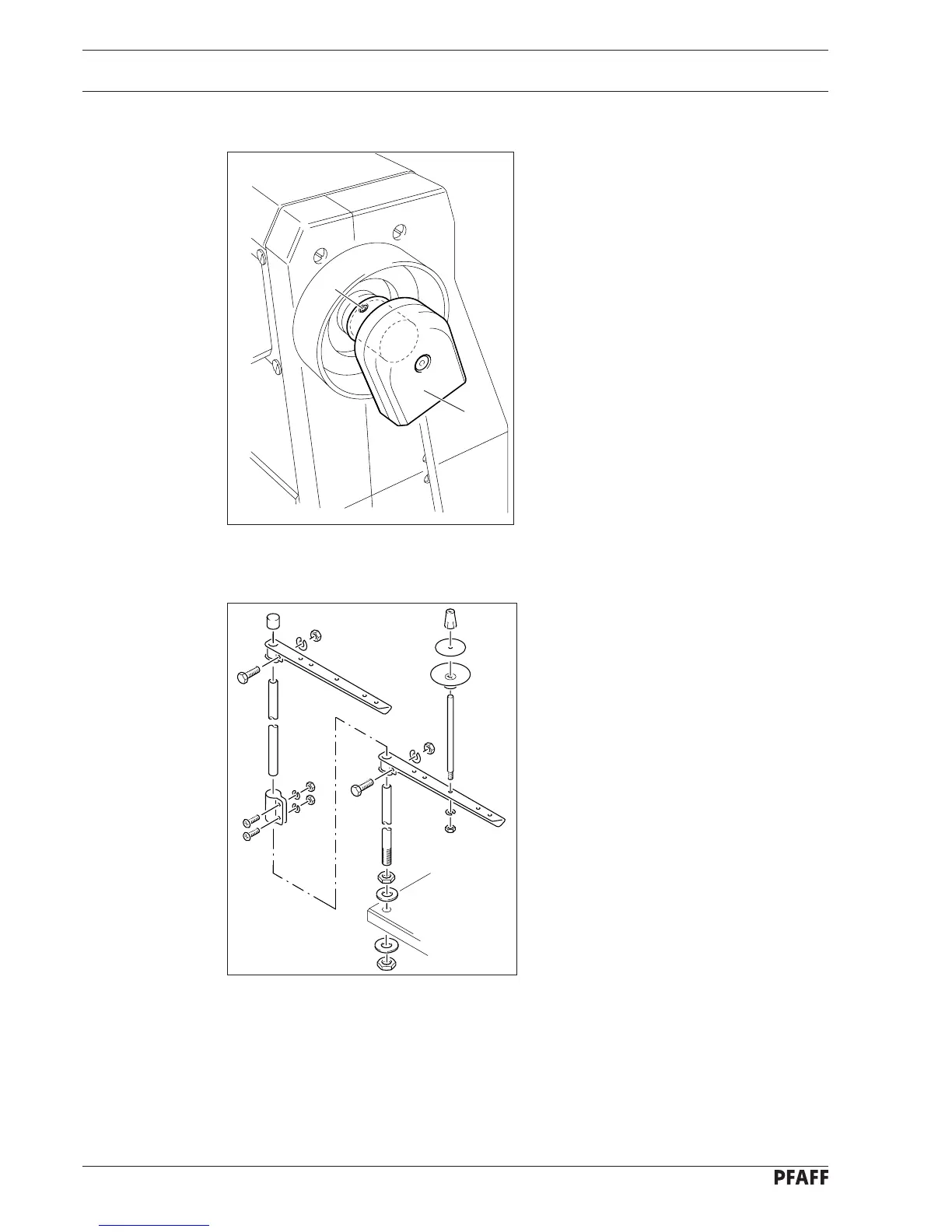

8.01.06 Mounting the synchronizer
● Slide synchronizer 1 onto the shaft.
● Tighten screws 2 slightly.
● Plug the synchronizer plug into the
electrical socket of the control box.
● Adjust the synchronizer ( see chapter
13.04.01 Adjusting the synchronizer ).
Fig. 8 - 06
2
1
8.01.07 Mounting the spool holder
● Mount the spool holder as shown in
Fig. 8 - 07.
● Insert the spool holder into the hole in
the table top and affix it with the nuts
enclosed.
Fig. 8 - 07
