Adjustment
13.07.14 Scissor driving rod
Requirement
1. In its starting position the scissor must be flush with the needle plate contour.
2. At the TDC of the driving rod 2 there must be a safety clearance of at least 0.3 mm
between pin 4 and the top end of the cam guide.
● Bring the needle bar to BDC and activate the engaging lever by hand.
● Bring driving rod 2 to its top point of reversal by turning the handwheel.
● Carry out the alteration on the driving rod 2 ( screw 1 ), the eccentric sleeve 3 ( screw 4 )
and/or the eccentric pin 5 ( screw 6 ) in accordance with the requirement.
● Check the requirement from chapter 13.07.13 Eccentric sleeve.
● Bring the thread trimmer to its starting position using the handwheel.
If using the 1474E1 model, carry out the same adjustment on the second post.
5
2
6
3
4

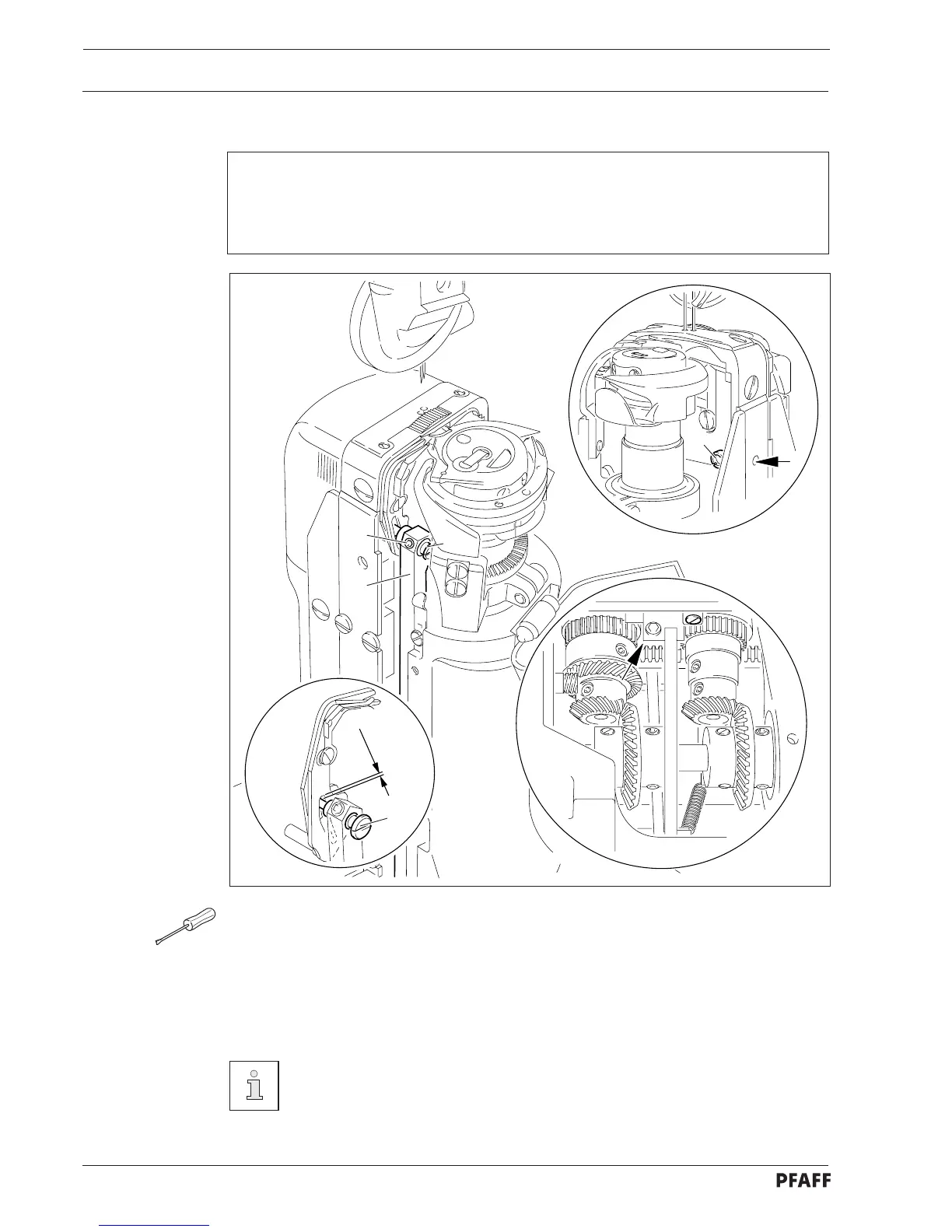

Fig. 13 - 46
5
0.3 mm
1
13 - 51
