Pfaff 1474 E1

Adjustment
13.04.15 Clearance between roller-presser and feed wheel
Requirement
With lever 1 raised, the clearance between the roller-presser and the feed wheel must be
7 mm.
● Raise lever 1.
● Move the presser foot bar ( screws 2 ) in accordance with the requirement. Take care
to ensure that the roller-presser is parallel to the feed wheel.

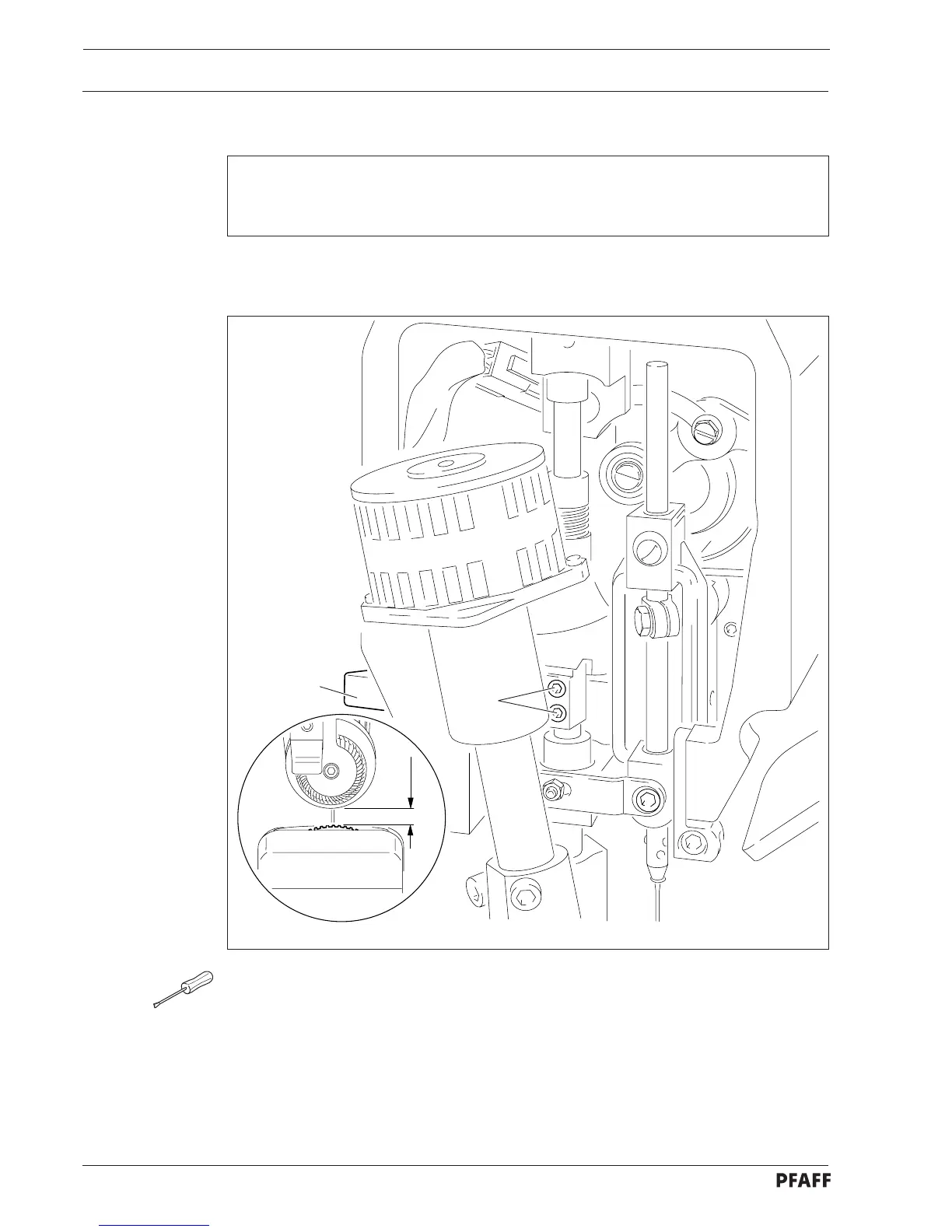

Fig. 13 - 14
2
1
7 mm
13 - 19
