Adjustment
13.07.03 Radial position of the tripping lever
Requirement
With the tripping lever 3 in resting position, there must be a clearance of 0.3 mm
between its roller and the circumference of the control cam 4.

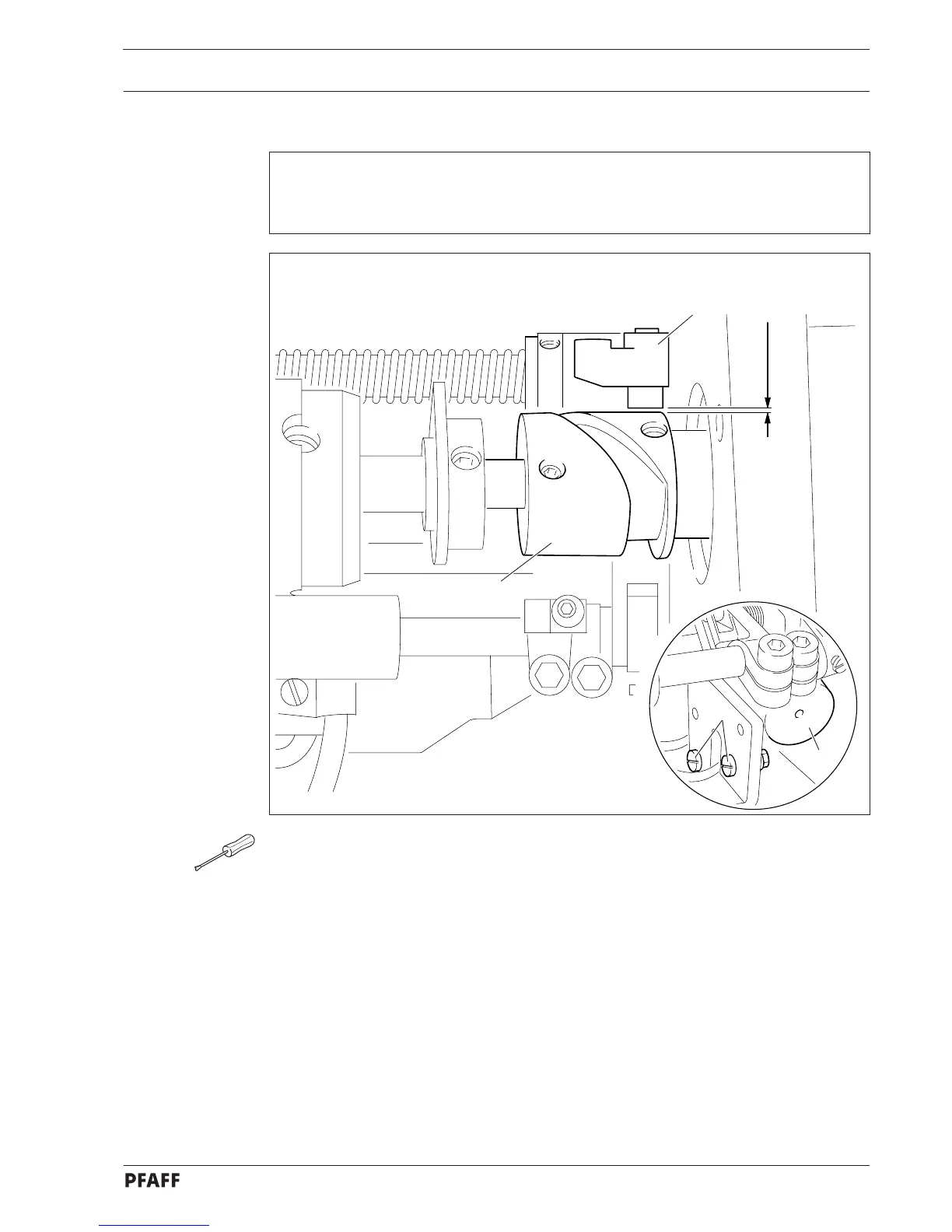

Fig. 13 - 35
● Bring the needle bar to BDC.
● Move solenoid carrier 1 ( nuts of screws 2 ) in accordance with the requirement.
4
3
0.3 mm
2
1
13 - 40
