XF Camera System Manual |

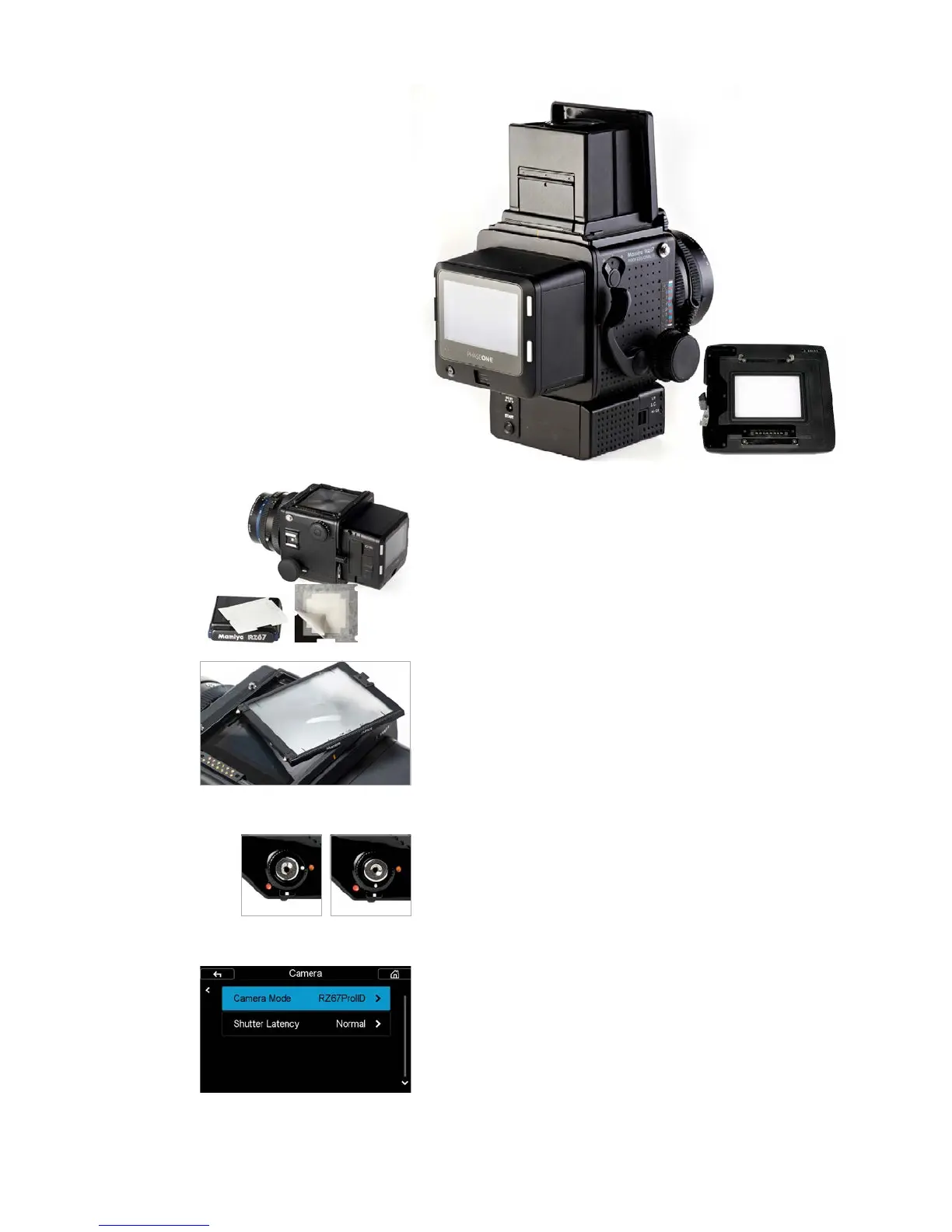

Mamiya RZ67 PRO II/D
Mamiya RZ67 PRO IID
The IQ Digital Backs with a standard M mount for use with the Phase One XF
or 645DF+ are compatible with the Mamiya RZ67 Pro IID camera, however
this will require an additional adaptor plate. (Phase One Part # 70994)
It is also possible to use a Phase One IQ Digital Back with Hasselblad V mount
on the Mamiya RZ67 PRO IID. Modification of the back mount plate is required
with the following Mamiya service part number: Y22995-RZ.
Mamiya RZ67 PRO II
The Hasselblad V mount version of an IQ Digital Back can only be used on
the older version Mamiya RZ PRO II with the Mamiya RZ67 Pro II adaptor.
(Phase One Part# 70964). Please note, the standard M mount IQ Digital
Backs are not compatible.
Viewfinder Masking
Please check the relevant Mamiya RZ67 manual regarding how to detach the
viewfinder and remove the focusing screen.
1. Remove the protection tape from the mask.
2. Detach the prism or waist-level finder and remove the focusing screen.
3. Place the viewfinder mask in the bracket that holds the focusing screen.
4. Re-mount the focusing screen followed by the Viewfinder.
Mamiya RZ Pro II mode selector
The mode selector on the trigger button should be turned to the white dot
when used with the IQ Digital Back. The selector should be set to the orange
dot to avoid draining the internal (back-up) battery of the RZ camera when
the IQ Digital Back is attached to the body and not in use.
IQ Digital back Camera Mode setting
Select the specific Mamiya RZ67 PRO IID camera mode on the IQ Digital
Back, Menu > Camera mode > RZ67PROIID. This will ensure that the IQ Digital
Back operates optimally. Note this option is not relevant for the earlier Mamiya
RZ67 PRO II model.
