PhaseOne XF User Manual

103
IQ Digital Backs with third party cameras IQ Digital Backs with third party cameras
103XF Camera System Manual |

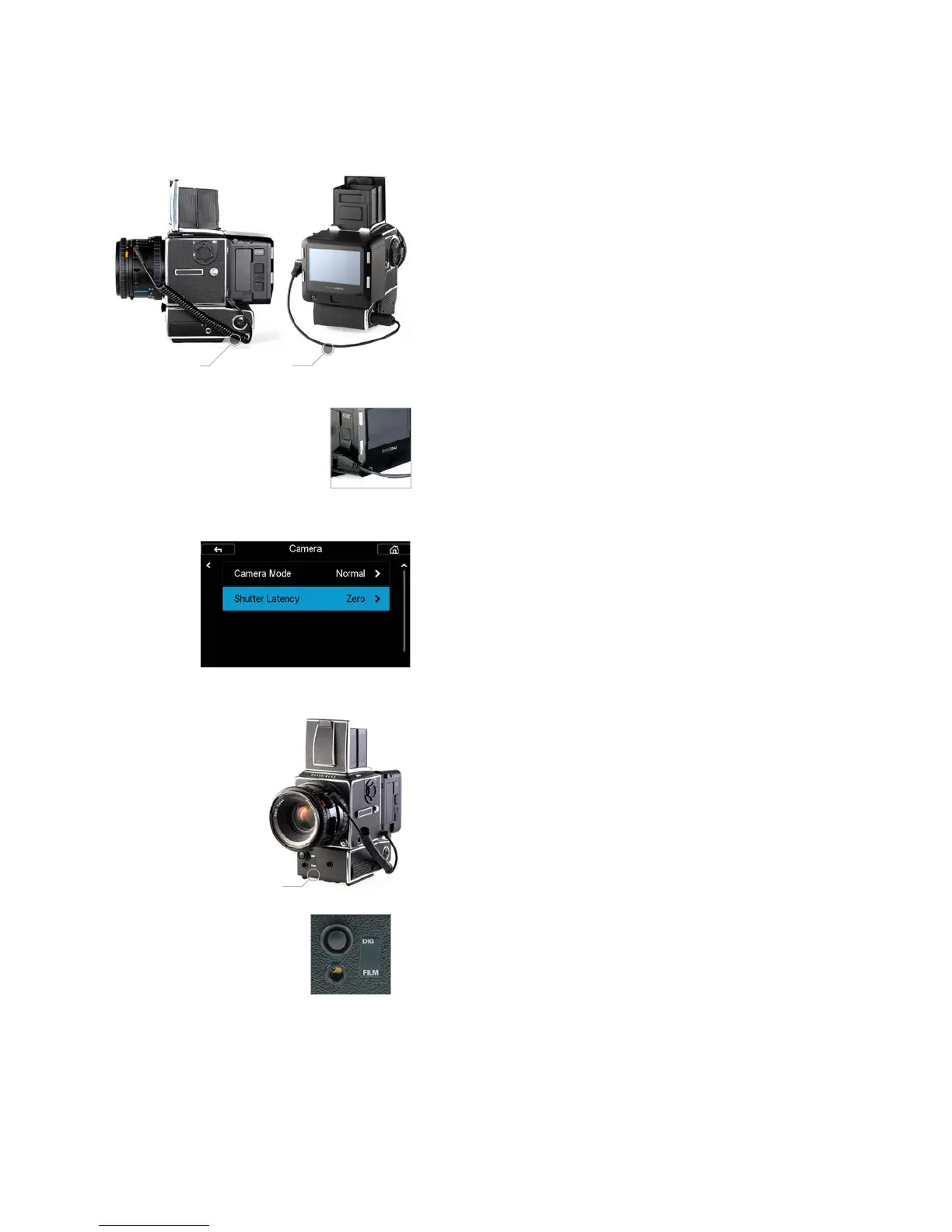

Sync Cable
A sync cable must be connected from the lens to the small connector port in
the front plate on either the left or right side of the IQ Digital Back, regardless
of which Hasselblad V type camera used.
Motor cable
For ELX or ELM bodies, a motor cable is supplied with the V mount digital
back to enable users to fire the camera from within Capture One Pro. This is
not required with the Hasselblad 555 ELD body.
Flash Lead Connection
A flash cable can be connected to the Flash port connector on the IQ
Digital Back.
Shutter Latency Setting
The IQ Digital Back is equipped with both Normal and Zero latency mode
settings for optimal performance with certain camera functions. Set the
latency setting to Zero if using the Mirror Up function, or if you need to
rapidly press the shutter button. Do not to trigger the shutter too fast
when using Normal latency. On 903 CW and 905 CW, set the IQ Digital
Back latency to Zero .
Hasselblad 555 ELD
Ensure that the shutter release on the front of the 555 ELD is in the DIG position
Motor cable
Flash Lead Connection
Shutter Latency Setting
Hasselblad 555 ELD
DIG position
Sync Cable

PhaseOne XF Specifications

General

Image Stabilization	No
Lens Mount	Phase One XF
ISO Sensitivity	50 - 12800
Shutter Speed	1/4000 to 60 minutes
Storage Media	CF card, SD card
Display	3.2 inch touch screen
Battery	Rechargeable lithium-ion battery
Sensor Resolution	50MP, 80MP, 100MP, 150MP (depending on digital back)
LCD Screen Resolution	1.15 million dots
Connectivity	USB 3.0, HDMI
Weight (body only)	1490 g (without digital back, viewfinder, or battery)
