XF Camera System Manual |

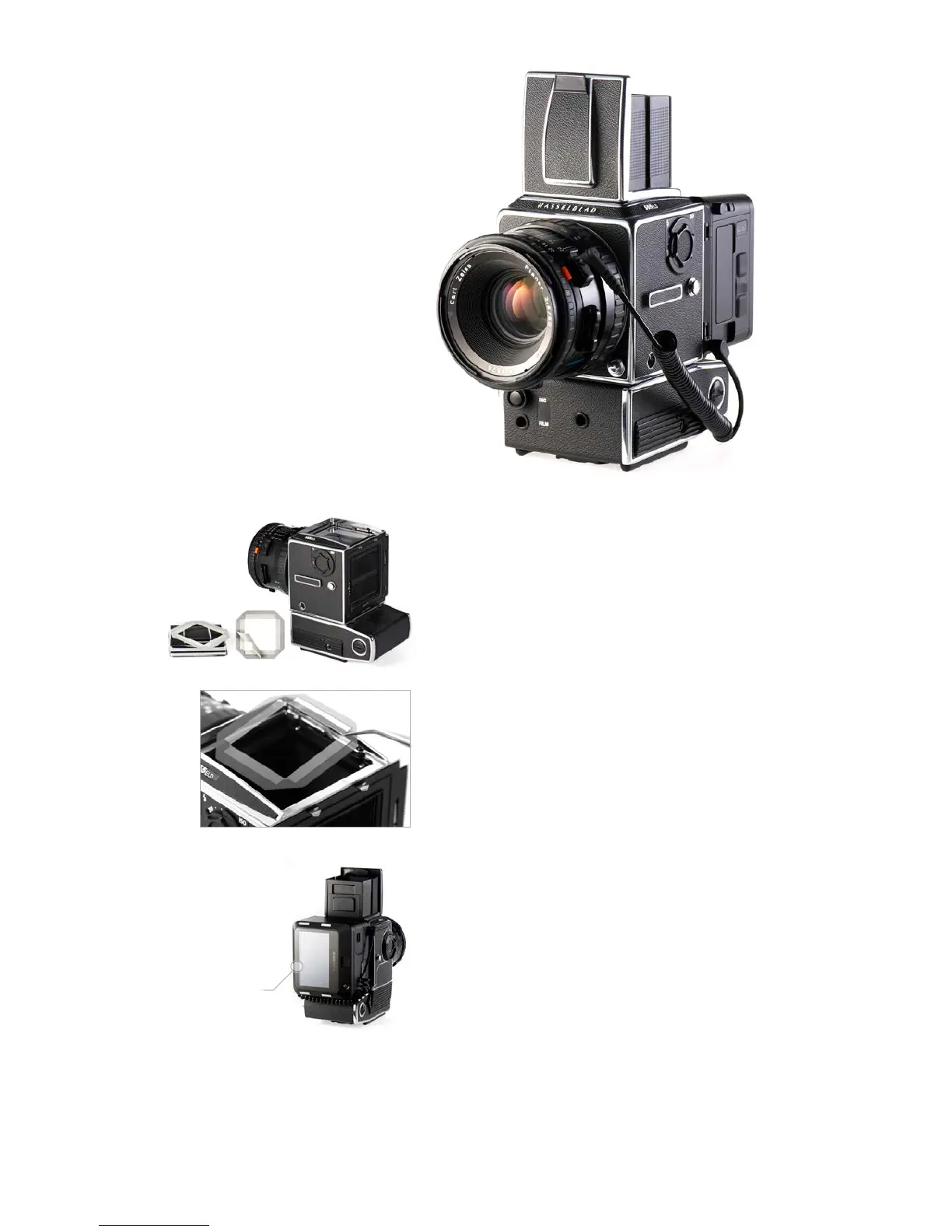

Hasselblad V Cameras
Phase One IQ Digital Backs incorporating a Hasselblad V mount can be fitted
to most Hasselblad V cameras, including Hasselblad 555 ELD, 553 ELX, 501 CM
and 503 CW models.
Viewfinder Masking
Please check the relevant Hasselblad camera manual instructions before
removing the focus screen.
1. Remove the protection tape from the mask.
2. Dismount the finder and remove the focusing screen.
3. Place the mask in the bracket that holds the screen.
4. Re-mount the focusing screen, followed by the Viewfinder.
Vertical Mounting
On the Hasselblad V it is possible to mount the digital back in vertical position,
in order to make portrait oriented images.
Viewfinder Masking
Vertical Mounting
