Philips 32PFL9432/98 - SSB: LED Panel Connector B10 C

Circuit Diagrams and PWB Layouts
141Q528.1A LA 7.

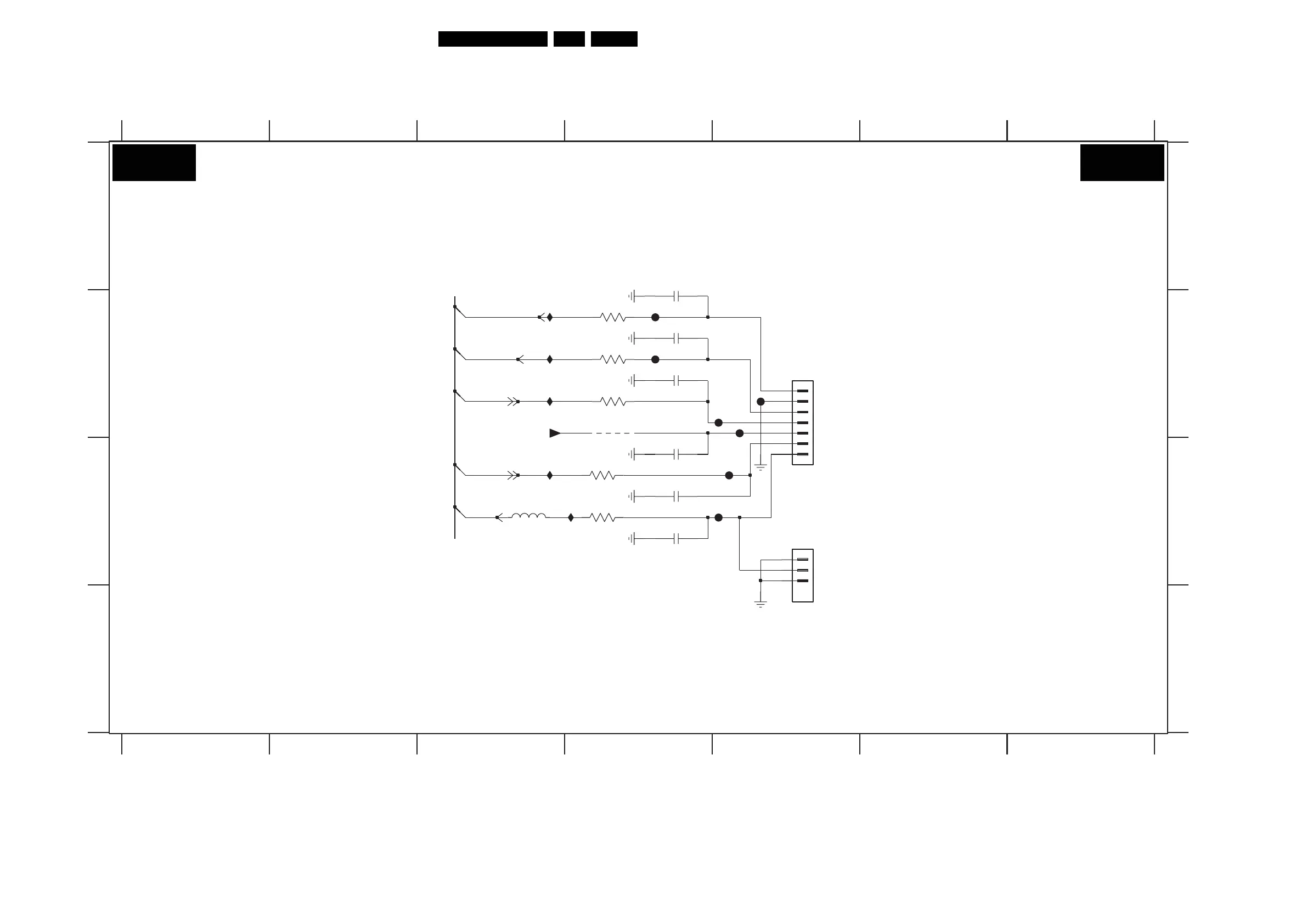

SSB: LED Panel Connector
C
D
1M01 C5
1M20 B5
67
2N51 A4
2N52 B4
2N53 B4
2N54 C4
2N55 C4
2N56 C4
3N51 B4
3N52 B4
3N53 B4
3N54 C4
3N56 C4
FN57 B5
FN58 C5
FN59 C5
123
IN51 B3
IN52 B3
IN53 C3
IN54 C4
1234567
A A
B
5N31 C3
9N50 B4
FN53 B5
FN54 C5
FN55 B4
FN56 B4
LED PANEL
TO
LED PANEL CONNECTOR
IN50 B3
IN52
45
*
TO
CONTROL
BOARD
B
C
D
IN51
IN50
100p
2N55
FN58
3N54
100R
2N54
100p
FN54
FN53
3N56
10R
2N56
100p
2
3
45
1M01
1
FN59
5
6
7
5N31
3u3
1
2
3
4
1M20
FN57
FN55
100R
3N51
100p
2N51
FN56
3N52
100R
2N52
100p
100R
3N53
100p
2N53
+5VS
IN54
9N50
KEYBOARD
IN53
LED1
LED2
RC
LIGHT-SENSOR
B10C B10C
3104 313 6198.3
H_16790_044.eps
160807
