Philips 32PFL9432/98 - 9.8.5 PNX5050

Circuit Descriptions, Abbreviation List, and IC Data Sheets
EN 181Q528.1A LA 9.

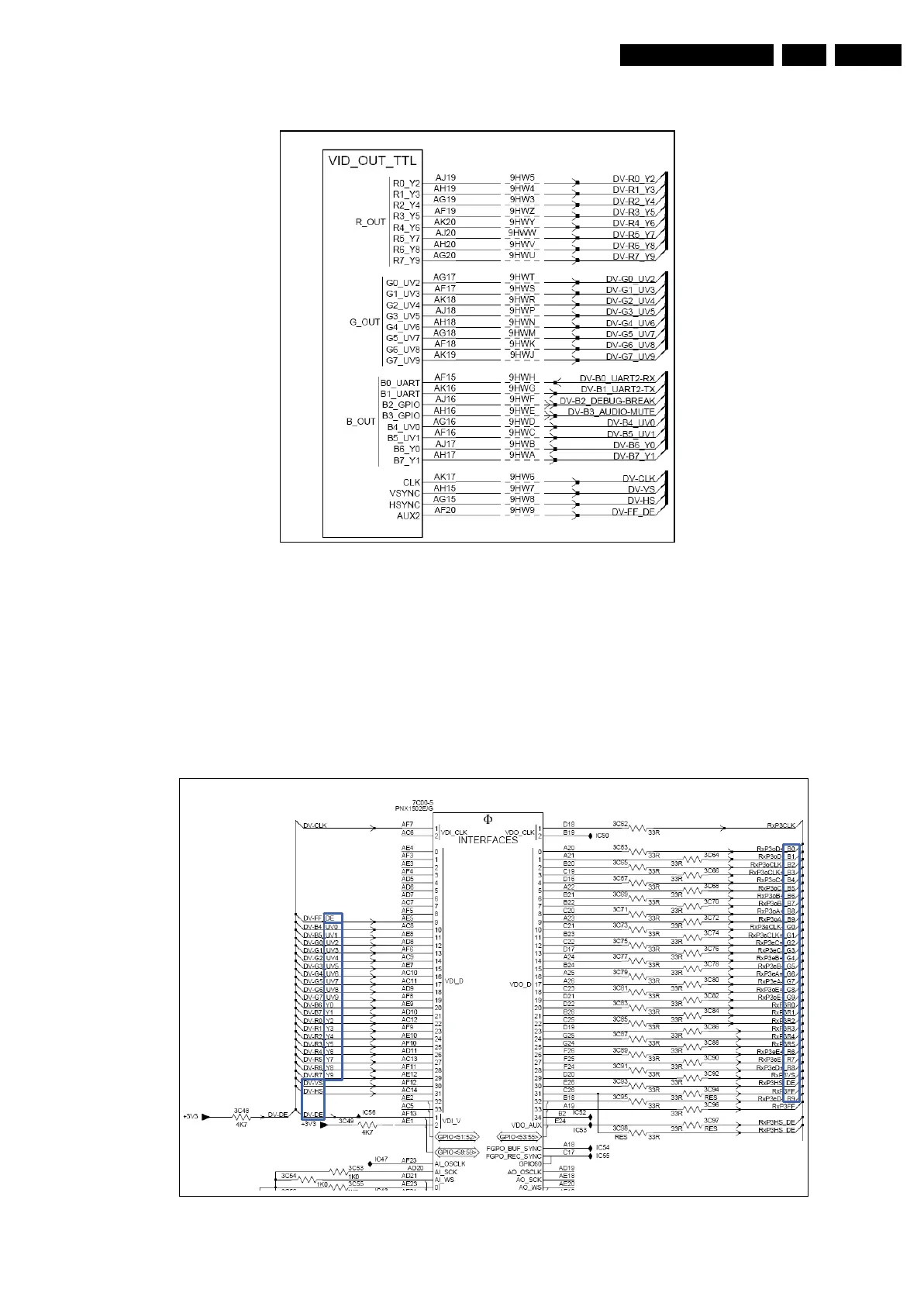

Figure 9-21 PNX85xx CMOS interface to PNX5050 or CYCLONE II (diagram B04O)
9.8.5 PNX5050
The PNX5050 performs the following tasks:
• Picture quality improvement (Natural Motion, etc.).
• Video and graphics (On Screen Display) mixing.
• Upconversion from 50 to 100 Hz.
• Scaling/deinterlacing (720p/1080i to 1080p).
The PNX5050 interfaces:
• Video input (CMOS).
• Graphics input (PCI).
• Video & Graphics (CMOS).
•I
2
C.
• Field memory (2x DDR).
Refer to figure “PNX5050 CMOS interface (input and output)”
for details.
Figure 9-22 PNX5050 CMOS interface (input and output)
H_16770_132.eps
240707
7H00-8
PNX85xx
H_16770_133.eps
240707
CMOS input from PNX85xx CMOS output to Pacific
