Philips 32PFL9432/98 - 1.2 Connections

Technical Specifications, Connections, and Chassis Overview
EN 3Q528.1A LA 1.
1.2 Connections

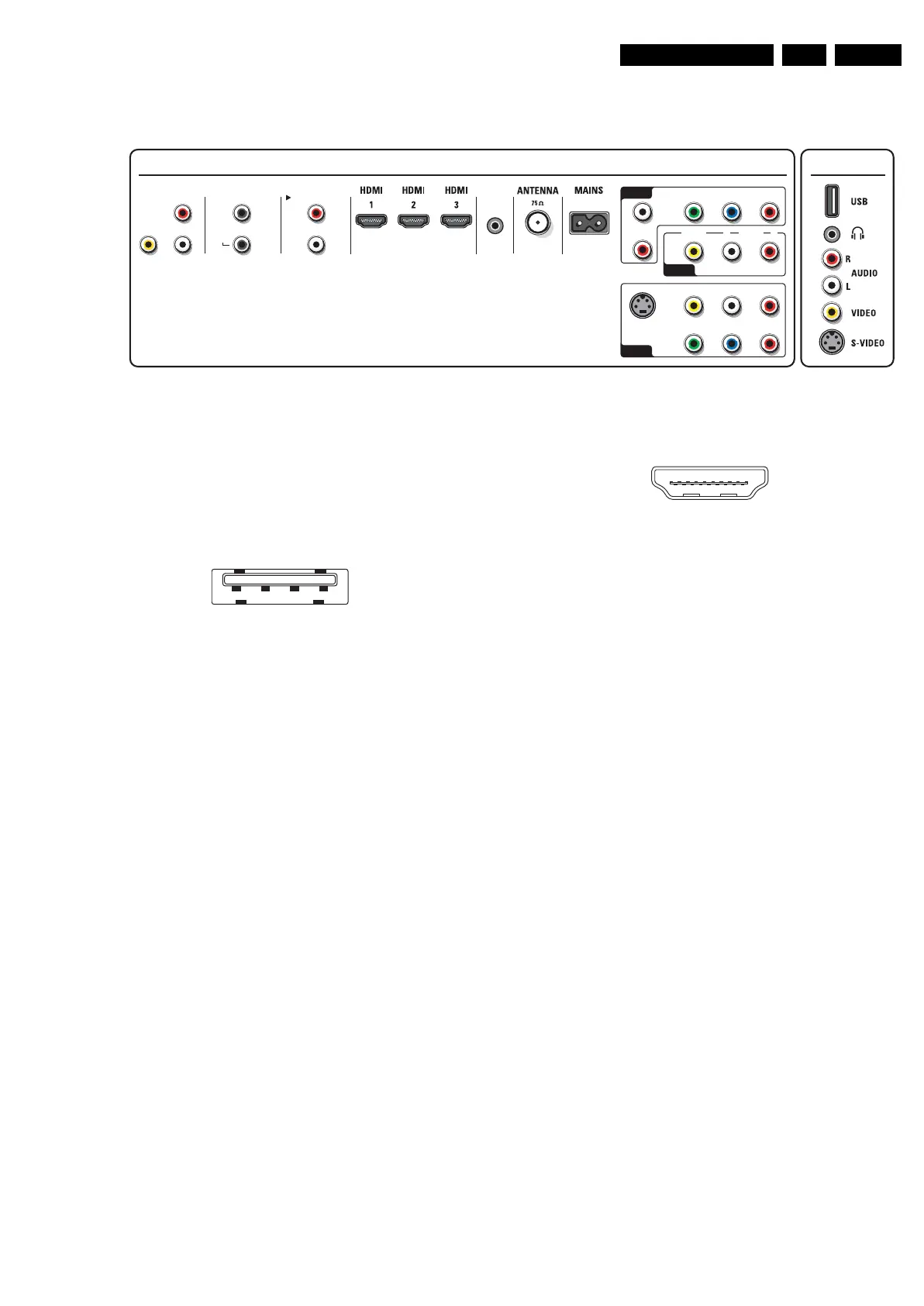

Figure 1-1 Connection overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
1.2.1 Side Connections
USB2.0
Figure 1-2 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
Headphone (Output)
Bk - Headphone 32 - 600 ohm / 10 mW ot
Cinch: Video CVBS - In, Audio - In
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
/ 75 ohm j
1.2.2 Rear Connections
Monitor Out: Cinch: Video CVBS - Out, Audio - Out
Ye - Video CVBS 1 V
PP
/ 75 ohm kq
Rd - Audio R 0.5 V
RMS
/ 10 kohm kq
Wh - Audio L 0.5 V
RMS
/ 10 kohm kq
Digital Audio In: Cinch: S/PDIF - In
Bk - Coaxial 0.2 - 0.6V
PP
/ 75 ohm jq
Digital Audio Out: Cinch: S/PDIF - Out
Bk - Coaxial 0.4 - 0.6V
PP
/ 75 ohm kq
Cinch: Audio - In
Rd - Audio - R 0.5 V
RMS
/ 10 kohm kq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm kq
HDMI 1, 2 & 3: Digital Video, Digital Audio - In
Figure 1-3 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - n.c.
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
Service Connector (UART): Jack 3.5 mm
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
Aerial - In
- - F-type (US) Coax, 75 ohm D
AV3: Cinch: Audio - In
Rd - Audio - R 0.5 V
RMS
/ 10 kohm kq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm kq
AV3: Cinch: Video YPbPr - In
Gn - Video Y 1 V
PP
/ 75 ohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq
AV2: Cinch: Video CVBS - In, Audio - In
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
L
R
AUDIO
YPbPr
VIDEO
Y
S VIDEO
AUDIOLR
Pb Pr
VIDEO L RAUDIO
AV 3
AV 1
AV 2
VGA / HDMI 1 / HDMI 2
DISPLAY
SYNC.
ANALOG AUDIO IN
MONITOR
OUT
DIGITAL AUDIO
SERVICE
UART
AUDIO
VIDEO
R
L
IN
OUT
R
L
DISPLAY SYNCHRONIZED
Rear connectors
Side
H_16790_054.eps
220807
1234
E_06532_022.eps
300904
19
1
18 2
E_06532_017.eps
250505
