9.8.3 Full-HD sets @ 100 Hz - Dynamic Frame Insertion
All full-HD sets with a refresh rate of 100 Hz have an additional
panel for upscaling the outcoming signal from the Pacific 3 to
100 Hz @ 1080p. Refer to figure “Block diagram display control
Full-HD sets 100 Hz with DFI panel” and diagram AB for
details.

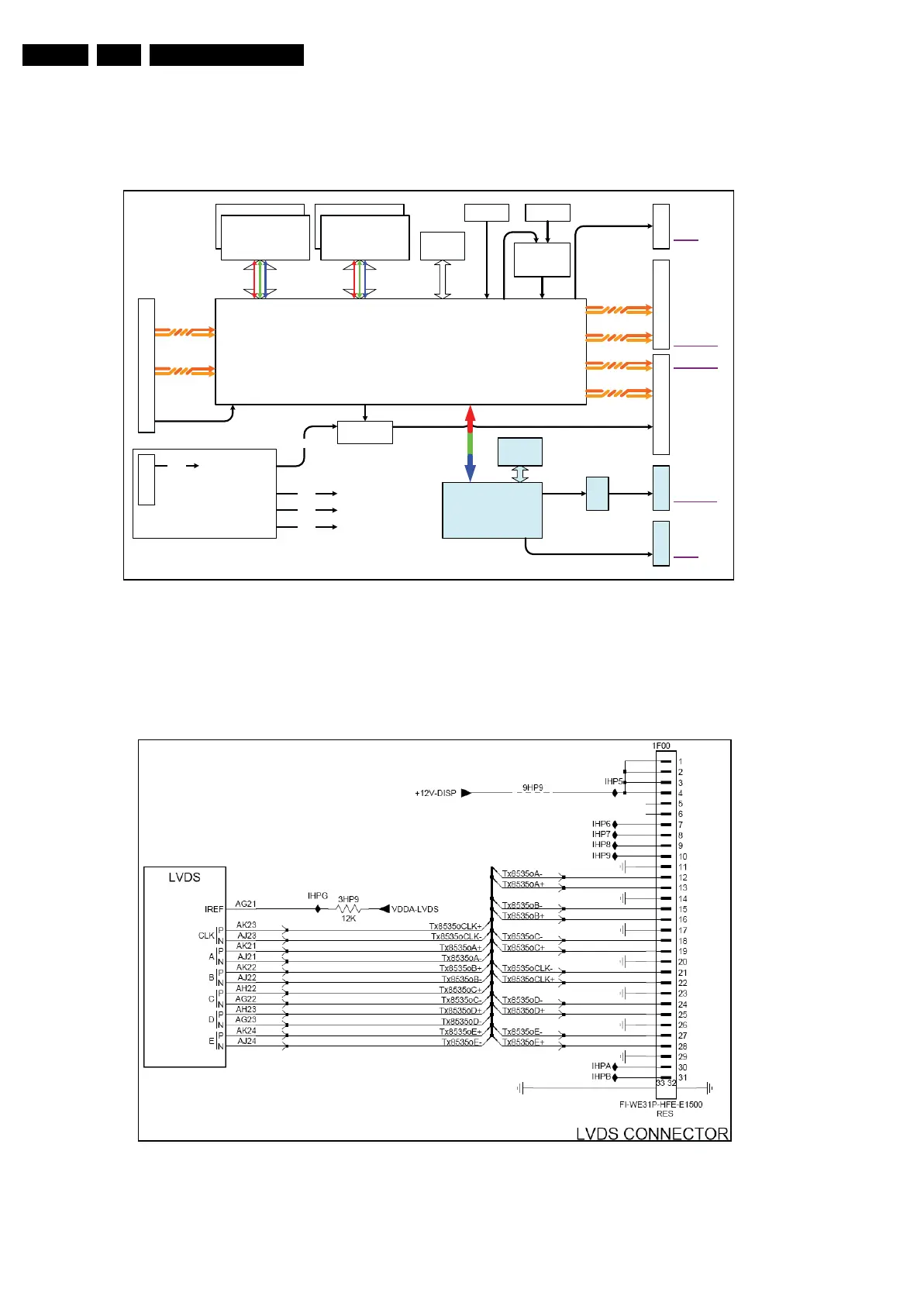

Figure 9-19 Block diagram display control Full-HD sets 100 Hz with DFI panel
9.8.4 PNX85xx
For sets where the PNX85xx outputs LVDS to the PACIFIC 3,
refer to figure “PNX85xx LVDS interface to PACIFIC 3” for
details.
Figure 9-20 PNX85xx LVDS interface to PACIFIC 3 (diagram B04O)
For sets where the PNX85xx outputs CMOS to the PNX5050
or CYCLONE II (EP2C8F256C7N), refer to figure “PNX85xx
CMOS interface to PNX5050 or CYCLONE II” for details.
