Mechanical Instructions
EN 22 Q528.1A LA4.
4.4.10 Tweeters removal
Caution: The tweeters should never be connected or
disconnected when the set is playing! This can damage the
amplifiers on the Audio/Standby Board.
For replacing the IR & LED Board, the Subframe and the Rim
have to be removed first. Please refer to the sections Subframe
removal and Rim removal.
Refer to next figure for details.
1. Unplug connector [1].
2. Remove screws [2].
3. Take the tweeters out together with their casing.
When defective, replace the whole unit.

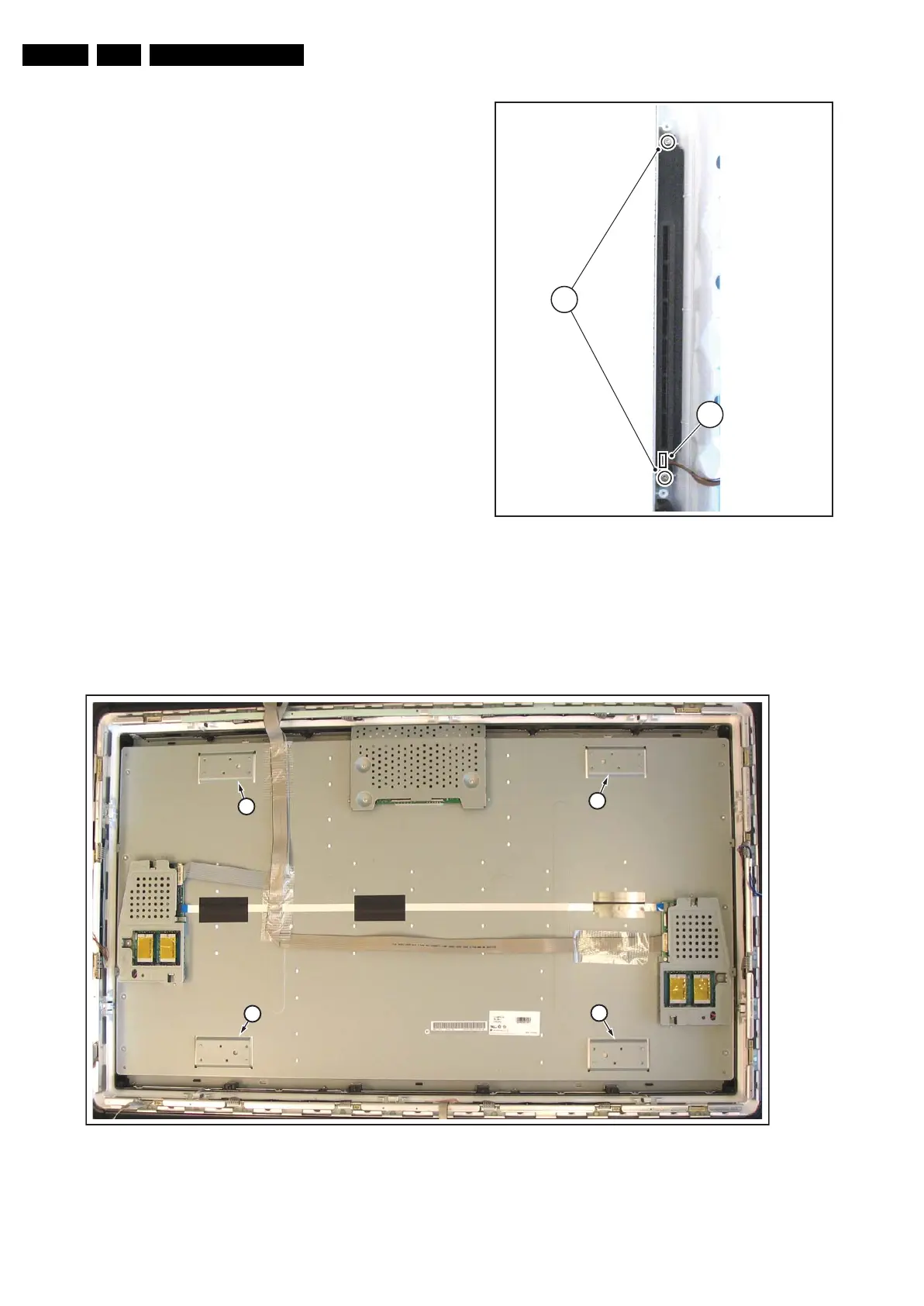

Figure 4-34 Tweeters removal
4.4.11 LCD Panel
For replacing the LCD Panel, the Subframe has to be removed
first. Please refer to the section Subframe removal.
Refer to next figure for details.
1. Lift the LCD panel from the front cabinet.
When defective, replace the whole unit.
Figure 4-35 LCD Panel
4.4.12 Small Signal Board (SSB)
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.
Refer to next figures for details.
H_16801_113.eps
300807
2
1
H_16801_114.eps
300807
1
1
1
1
