Mechanical Instructions
EN 24 Q528.1A LA4.
4.4.15 Audio and Ambilight supply panel
Refer to next figures for details.
1. Unplug the connectors [1].
2. Remove the screws [2].
The Audio and Ambilight supply panel can now be taken out of
the set.

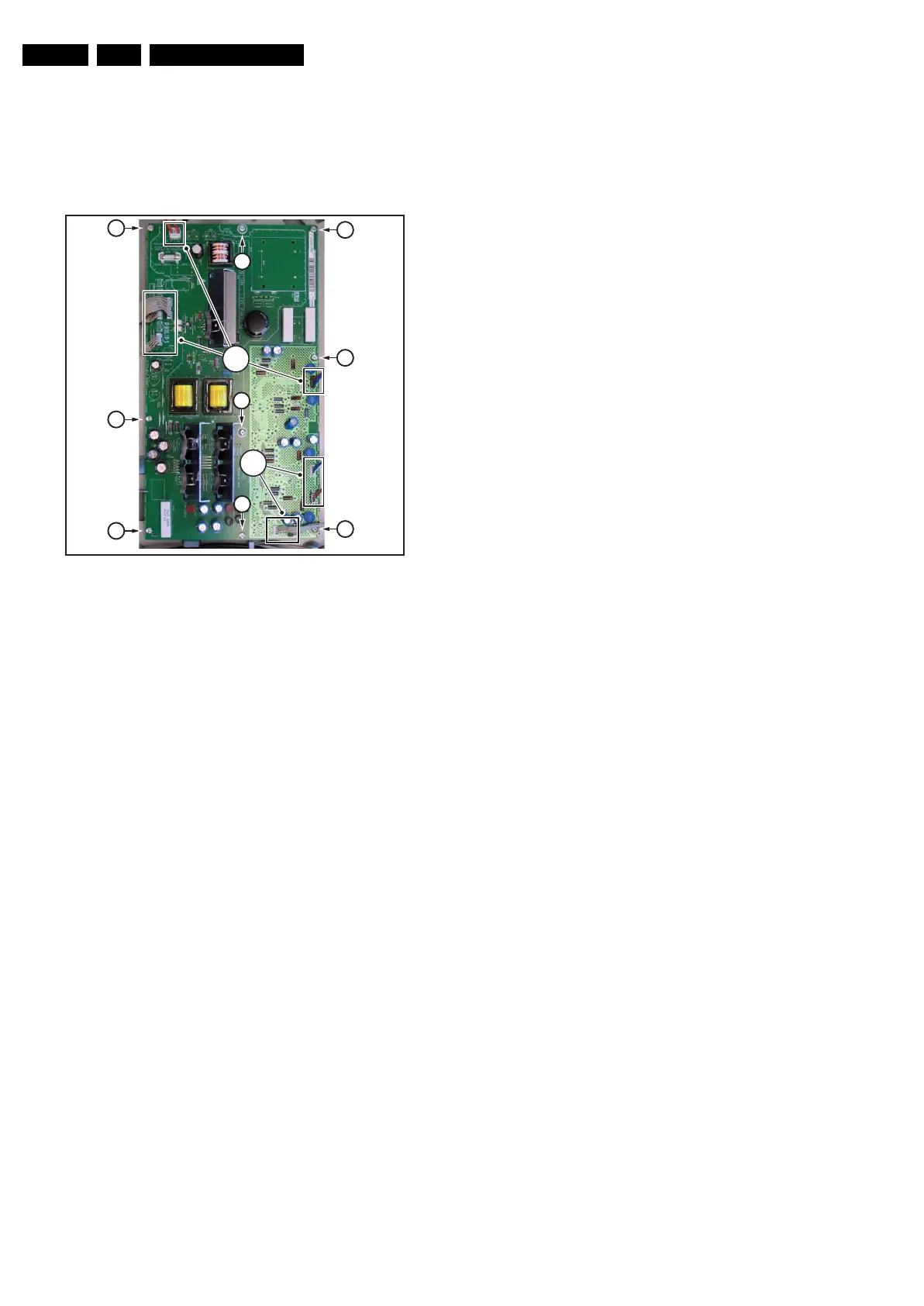

Figure 4-40 Audio and Ambilight supply panel removal
4.5 Set Re-assembly
To re-assemble the whole set, execute all processes in reverse
order.
Notes:
• While re-assembling, make sure that all cables are placed
and connected in their original position. Only refer to
figures “Cable dressing” at the beginning of this
chapter!
• Pay special attention not to damage the EMC foams on the
SSB shields. Ensure that EMC foams are mounted
correctly.
H_16801_129.eps
310807
2
2
2
2
2
2
2
2
2
1
1
