Mechanical Instructions
EN 19Q528.1A LA 4.
4.4.5 Ambilight LED Panel Removal
The set contains two different Ambilight LED panels. A four
LED and a five LED version. Removal is similar for both types.
Refer to next figure for details.
1. Unplug the connectors [1].
2. Remove the screws [2] and [3].
3. Pull the panel forward and lift them from the sub-frame.
When defective, replace the whole unit.

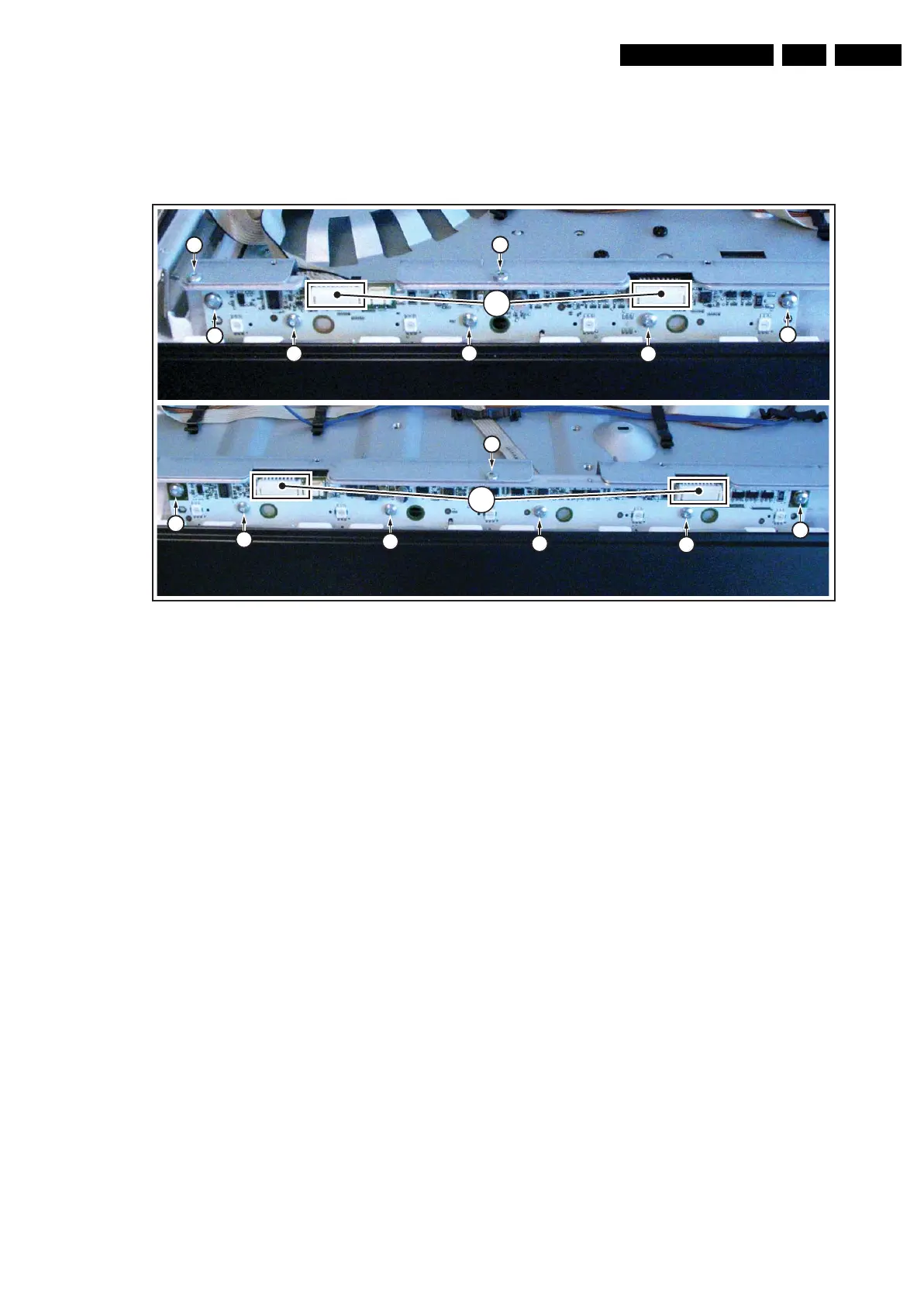

Figure 4-29 Ambilight LED panel removal
H_16801_108.eps
280807
