Mechanical Instructions
EN 18 Q528.1A LA4.
4.4.3 Stand Removal
Refer to next figures for details.
1. Place the set in the service position.
2. Remove the screws [1] and pull the stand downwards out
of its support.
3. Remove the screws [2] and lift out the support.

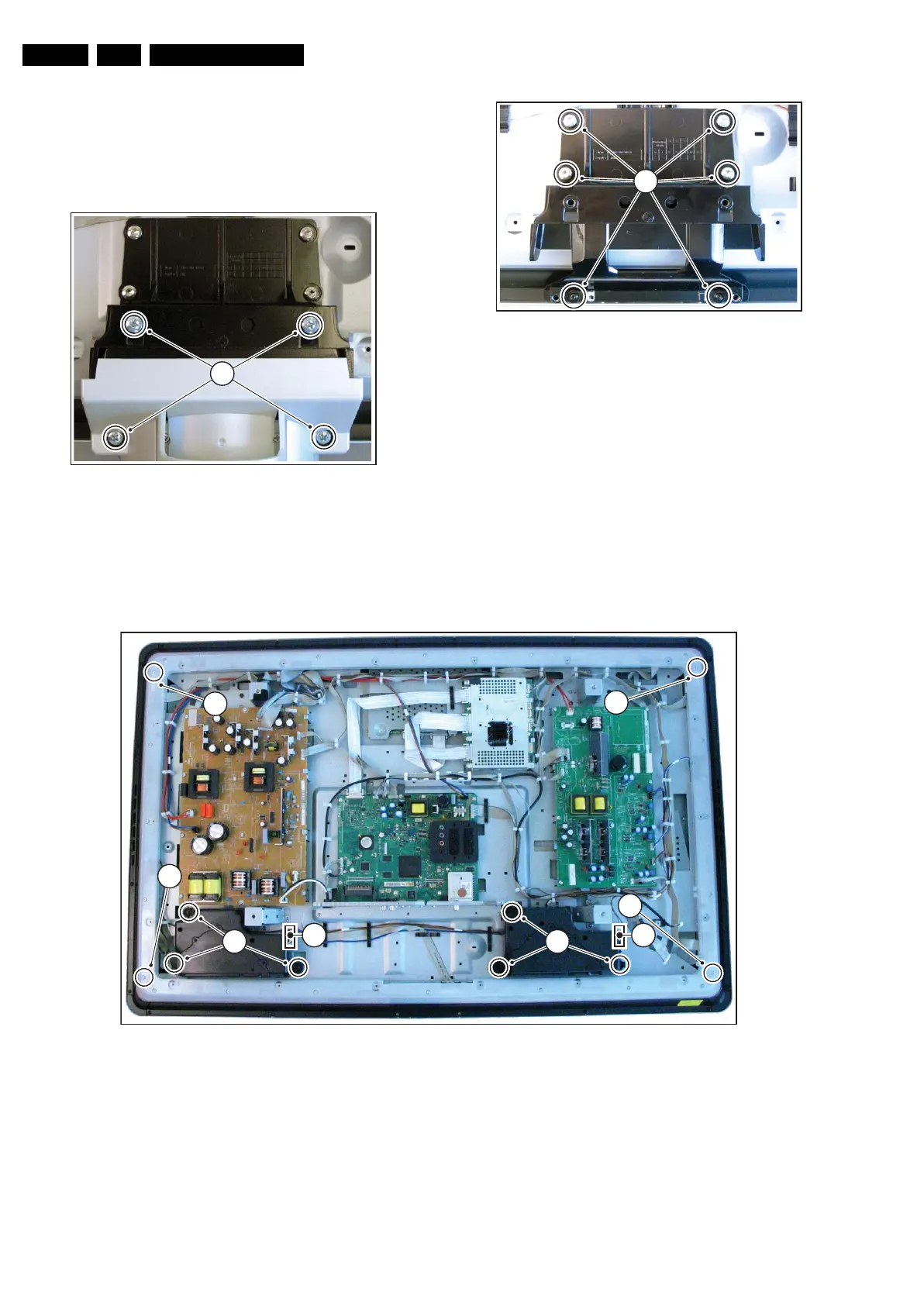

Figure 4-26 Stand removal [1/2]
Figure 4-27 Stand removal [1/2]
4.4.4 Ambilight Reflector and Low-range Speaker removal
Caution: The speakers should never be connected or
disconnected when the set is playing! This can damage the
amplifiers on the SSB.
Refer to next figure for details.
1. Remove the screws[1].
2. Lift the whole reflector from the set.
3. Remove the connectors [2] from the low-range speakers.
4. Remove the screws [3] from the low-range speakers and
lift them from the sub-frame. When defective, replace the
whole unit.
Figure 4-28 Ambilight Reflector and Low-range Speaker removal
H_16801_105.eps
270807
1
H_16801_106.eps
270807
2
H_16801_107.eps
280807
1
1
1
3
1
3
2 2
