Mechanical Instructions
EN 20 Q528.1A LA4.
4.4.6 Subframe Removal
Before the Subframe can be removed, please remove the
Ambilight Reflector and Low-range Speaker as described
earlier.
For replacing the Keyboard Control Board, the IR & LED board,
the Tweeters, and the LCD panel, the Subframe and Rim have
to be removed first.
Refer to next figure for details.
1. Do NOT forget to unplug the LVDS connector [1] from the
SSB. Important: Be careful, as this is a very fragile
connector!
2. Unplug the connectors[2].
3. Remove the screws [3] and [4].
4. Now lift the subframe from the set.

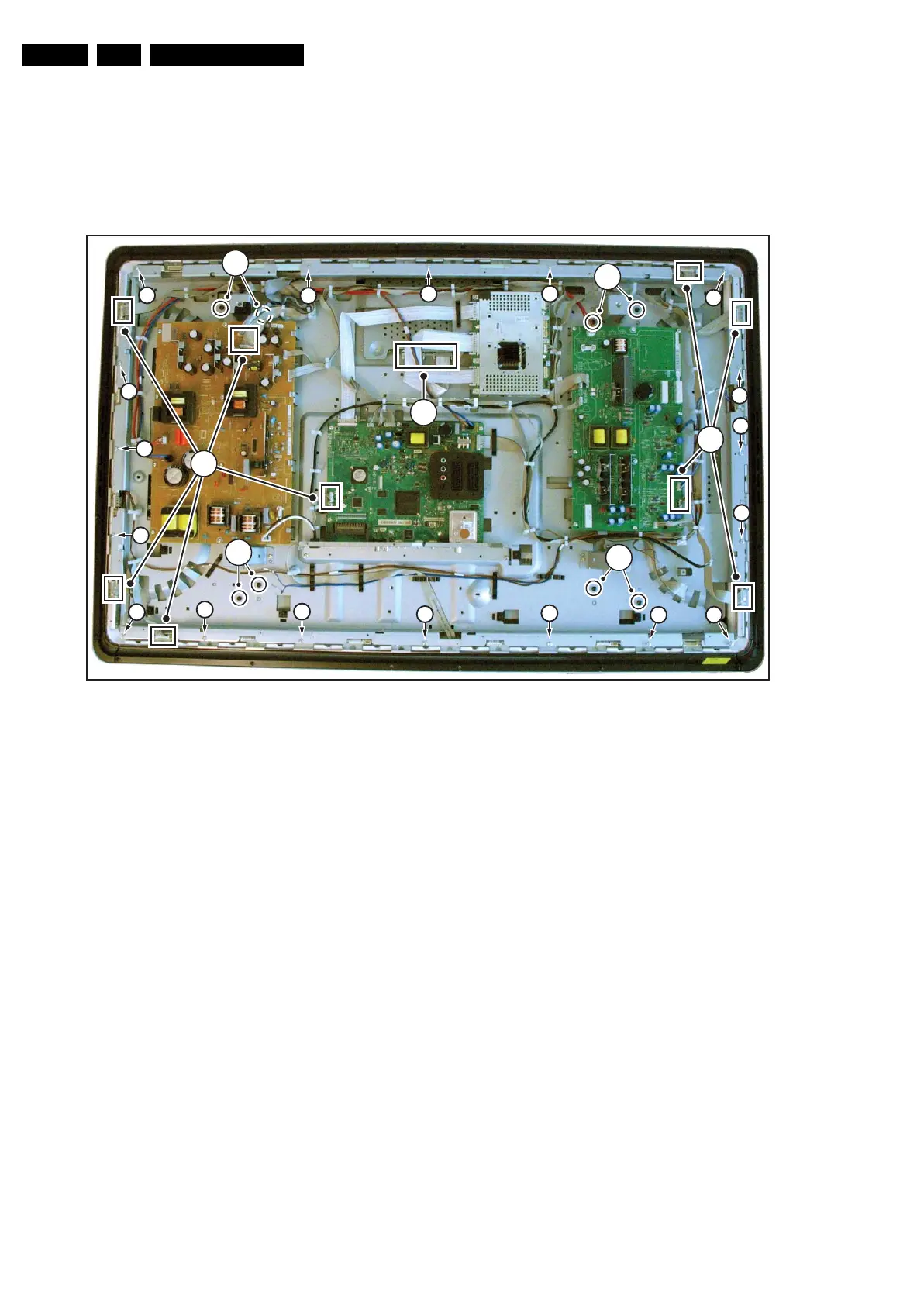

Figure 4-30 Subframe removal
H_16801_109.eps
280807
1
2
2
3
3
3
3
3
3
3
3
3
3
3
3
3 3
3
3
3
3
4
4
4
4
