4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assy/Panel Removal ME7 styling
4.5 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
• Follow the disassemble instructions in described order.
They apply to the 47" sets. The disassemble instructions
for the Aurea sets (42PFL9900/98) is described in section
“Assy/Panel Removal Aurea Styling”.
4.1 Cable Dressing

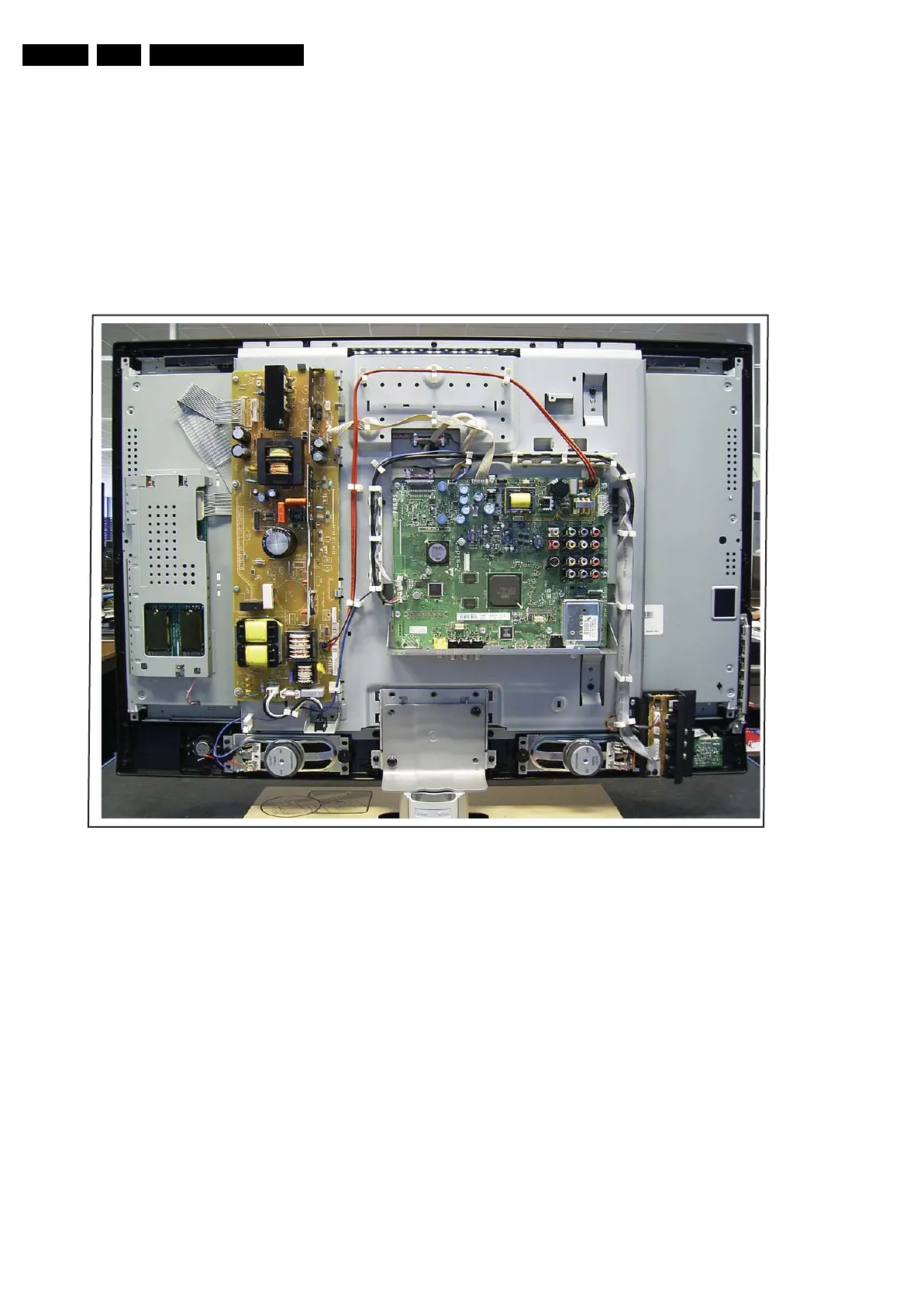

Figure 4-1 Cable dressing 32" sets
H_16790_058.eps
220807
