Philips 32PFL9432/98 - 1.3 Chassis Overview

Technical Specifications, Connections, and Chassis Overview
EN 4 Q528.1A LA1.
AV1: S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 ohm j
4 - Video C 0.3 V
PP
/ 75 ohm j
AV1: Cinch: Video CVBS - In, Audio - In
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
Ye - Video CVBS 1 V
PP
/ 75 ohm jq
AV1: Cinch: Video YPbPr - In
Gn - Video Y 1 V
PP
/ 75 ohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq

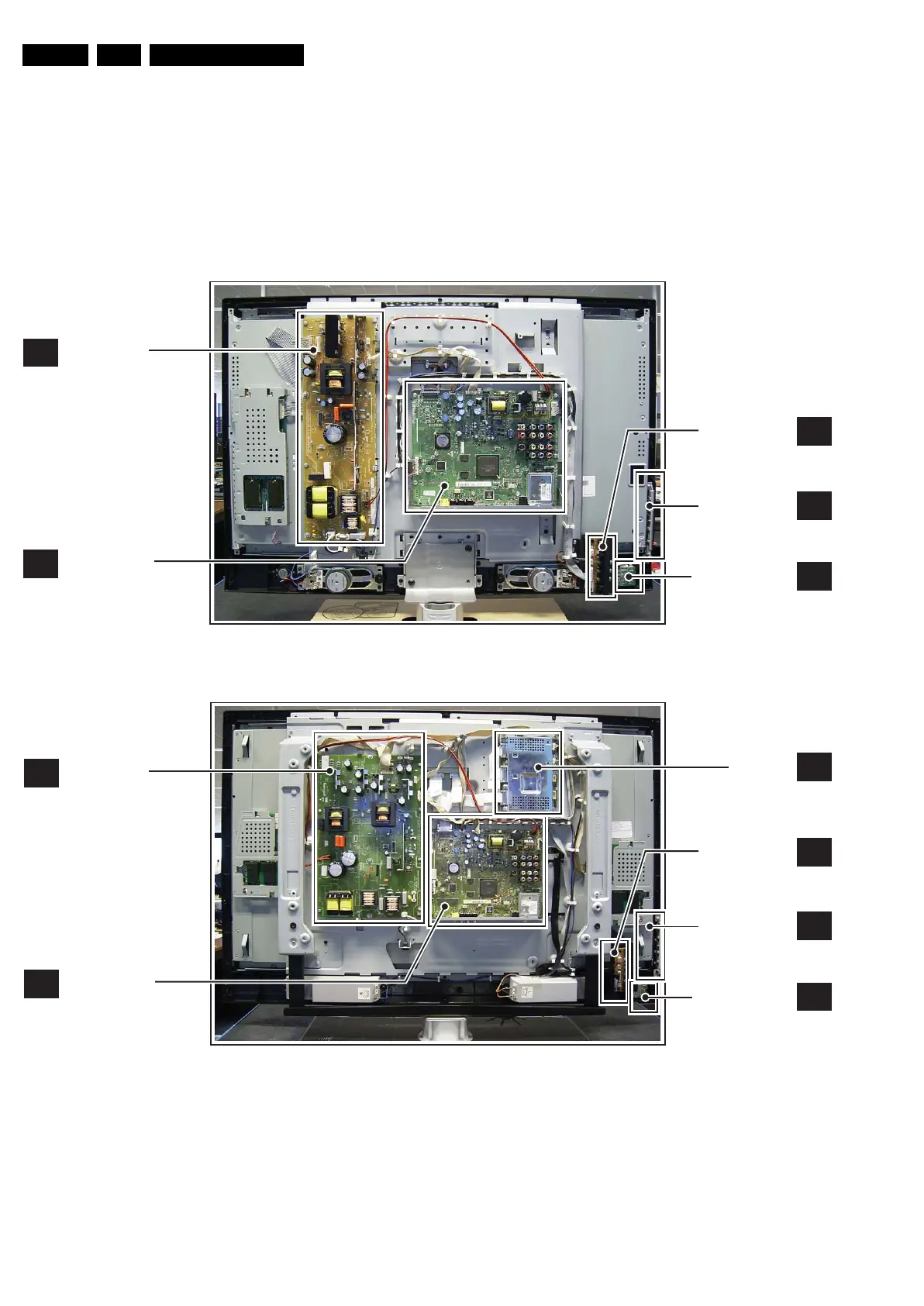

1.3 Chassis Overview
Figure 1-4 PWB/CBA locations 32" sets
Figure 1-5 PWB/CBA locations 42" ME7 styling sets
H_16790_055.eps
230807
DISPLAY
SUPPLY PANEL
D
SIDE I/O PANEL
B
SMALL SIGNAL
BOARD
A
E
KEYBOARD CONTROL
PANEL
J
IR & LED PANEL
H_16790_056.eps
230807
DISPLAY
SUPPLY PANEL
D
SIDE I/O PANEL
B
SMALL SIGNAL
BOARD
A
E
KEYBOARD CONTROL
PANEL
AB
DFI PANEL
J
IR & LED PANEL
