Philips DVP620VR/78 - Rear Panel Connections

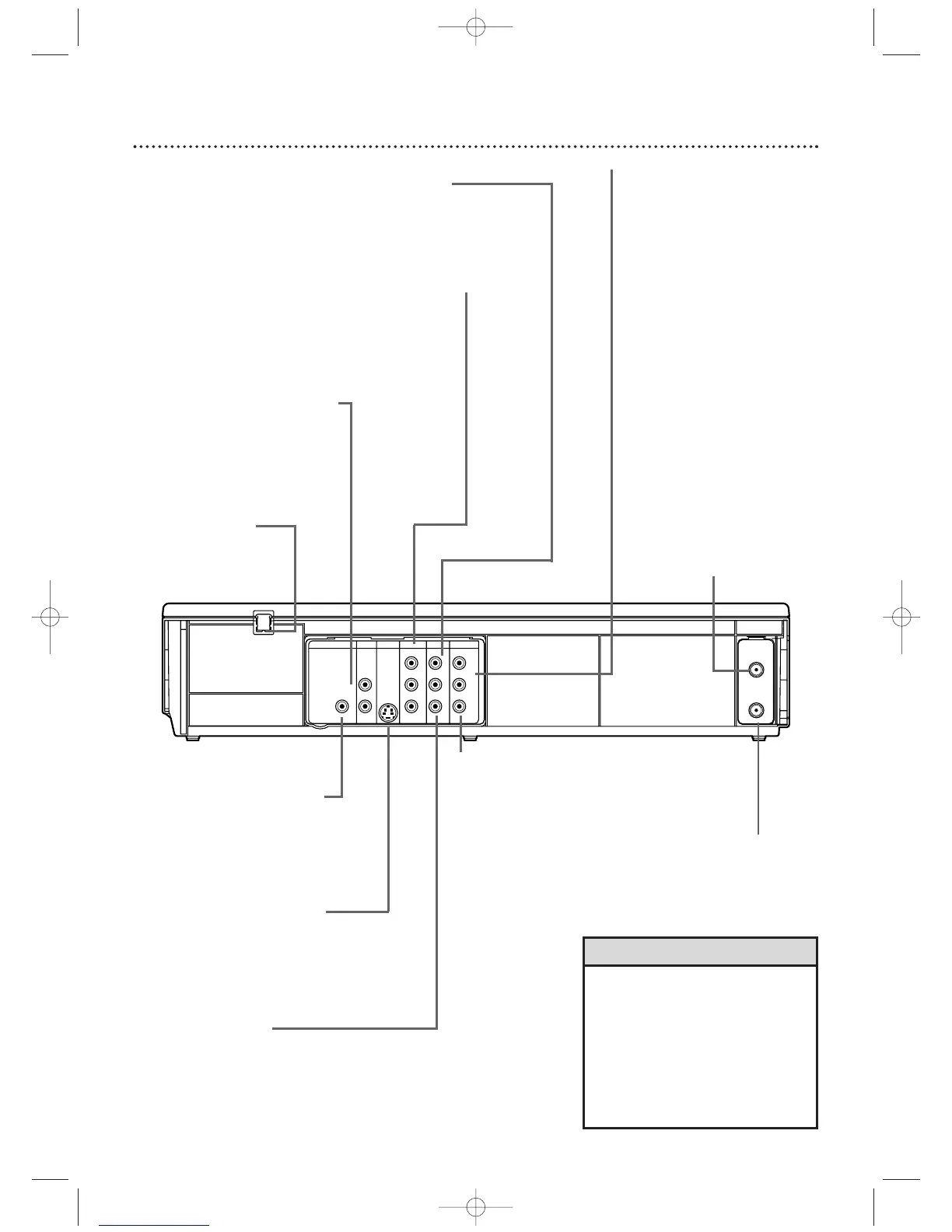

22 Rear Panel
DVD COMPONENT VIDEO OUT
(Y CB/PB CR/PR) Jacks (green, blue, red)
Connect component video cables (not supplied)
here and to the Component Video In jacks of a
TV.This supplies the picture only for the DVD
Player. Details are on page 11.
DIGITAL
AUDIO OUT
COAXIAL
AUDIO
OUT
DVD
L
R
L
R
L
R
S-VIDEO
OUT
COMPONENT
VIDEO OUT
Y
C
B /
PB
AUDIO OUT
DVD/VCR VCR
ANT - IN
ANT-OUT
VIDEO OUT
AUDIO IN
VIDEO IN
CR /
PR
AC Power Cord
Connect to a standard
AC outlet to supply
power to the DVD/VCR.
DVD S-VIDEO OUT Jack
Connect an S-Video cable (not supplied)
here and to the S-Video In jack of a TV.
This supplies the picture only for the
DVD Player. Details are on page 12.
DVD/VCR VIDEO
OUT Jack (yellow)
Connect the yellow video cable
(supplied) here and to the TV’s
Video In jack.This supplies the
picture for both the VCR and the
DVD Player. Details are on page 10.
DVD AUDIO OUT jacks
Left (white) and Right (red)
Connect the supplied audio
cables here and to the Audio In
jacks of a TV or Stereo.These
jacks only supply audio for the
DVD Player. Use these for a
second connection to a TV, etc.
DVD COAXIAL DIGITAL
AUDIO OUT Jack (black)
Connect a coaxial digital audio cable
(not supplied) here and to the Coaxial
Digital Audio In jack of a Stereo.This
supplies audio only for the DVD
Player. Details are on page 14.
ANT-IN
(Antenna In) jack
Connect your antenna
or Cable TV signal here.
Details are on pages 7-14.
ANT-OUT (Antenna Out) Jack
Use the supplied RF coaxial cable to
connect this jack to the ANTENNA IN
jack on your TV, Cable Box, or Satellite
Receiver. Details are on pages 7-9.
VCR VIDEO IN Jack (yellow)
Connect a video cable from a
camcorder,VCR, or DVD Player
here. Details are on page 34.
VCR AUDIO IN jacks
Left (white) and Right (red)
Connect audio cables coming
from the audio out jacks of a
camcorder, another VCR,
another DVD Player, or Stereo
here. Details are on page 34. This
will be useful if you want to
copy a videotape or watch
material that is playing on other
equipment.
• The DVD S-VIDEO OUT, DVD
COMPONENT VIDEO OUT, DVD
AUDIO OUT and DVD COAXIAL
DIGITAL AUDIO OUT jacks are only
useful in DVD mode.To have sound
and picture in VCR mode, you must
connect either the RF coaxial cable
or the audio/video cables supplied.
Details are on page 7 and 10.
Helpful Hint
DVD/VCR AUDIO OUT Jacks
Left (white) and Right (red)
Connect the supplied audio cables here and to
the Audio In jacks of a TV or Stereo. Details
are on pages 10-13. These jacks provide audio
for both the DVD Player and the VCR.
