3Setting Up Attaching the Carrying Case and Accessory Pouches
32
3
Fold the two sleeve flaps over the top of the device, positioning them so that the screw holes are
exposed.
4 Replace the paddle tray or cap plate, as appropriate, so that the molded openings fit over the sleeve
flaps.
5 Replace the handle.
6 If your handle cover does not have screw holes, insert the 2 T-15 screws and tighten. Then snap the
handle cover in place by pushing down on either side of the handle cover.
7 If your handle cover has screw holes, replace the handle cover and then insert the 2 T-15 screws and
tighten. Smooth down the label corners to cover the screw holes.
8 Secure the front and rear cinch straps using the metal rings provided.
9 Perform an Operational Check as described in, “Operational Check” on page 222.
10 Attach the side pouches using the snaps located inside the pouch pockets or, if equipped, use the
hook and loop fastener with the flaps and slots.

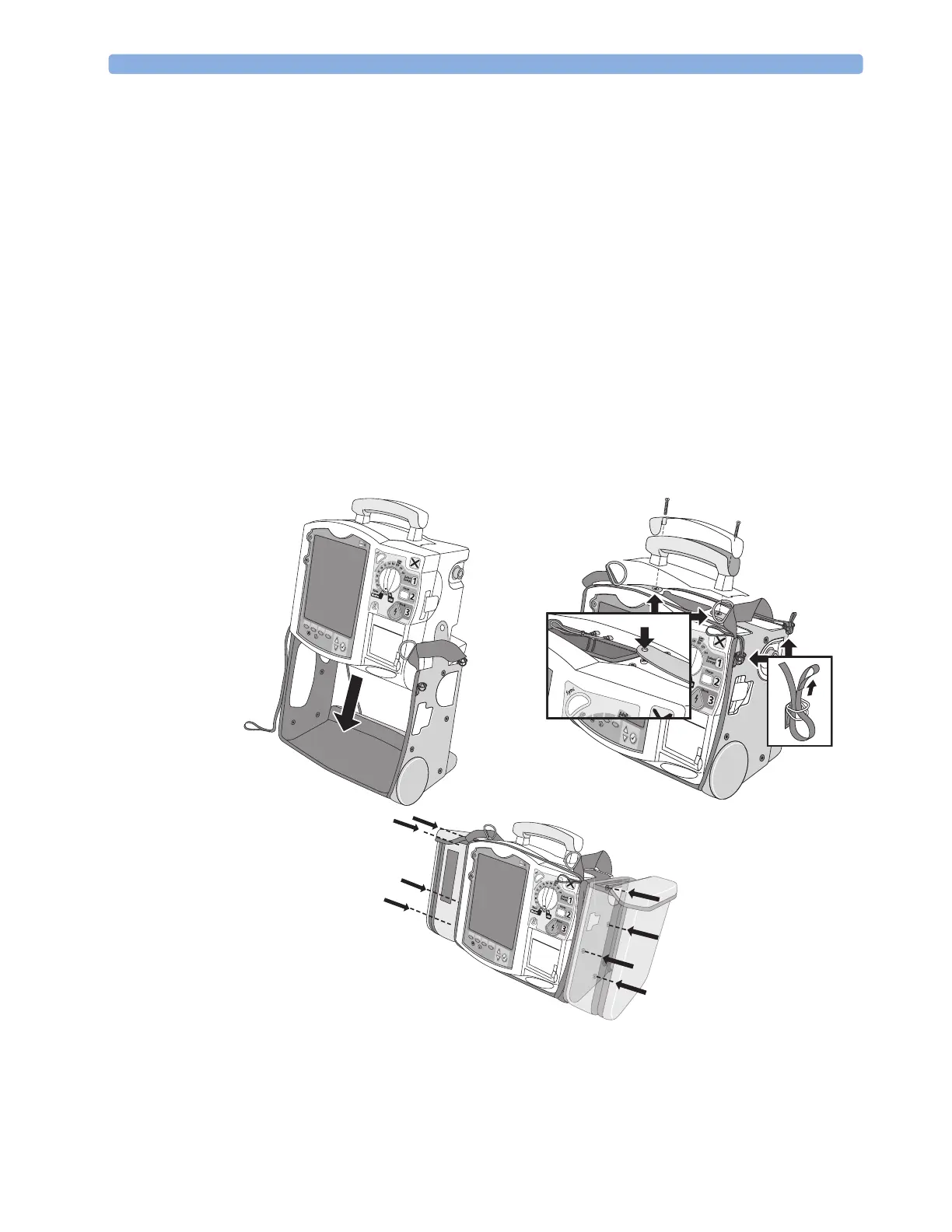

Figure 15 Accessory Pouch Assembly
